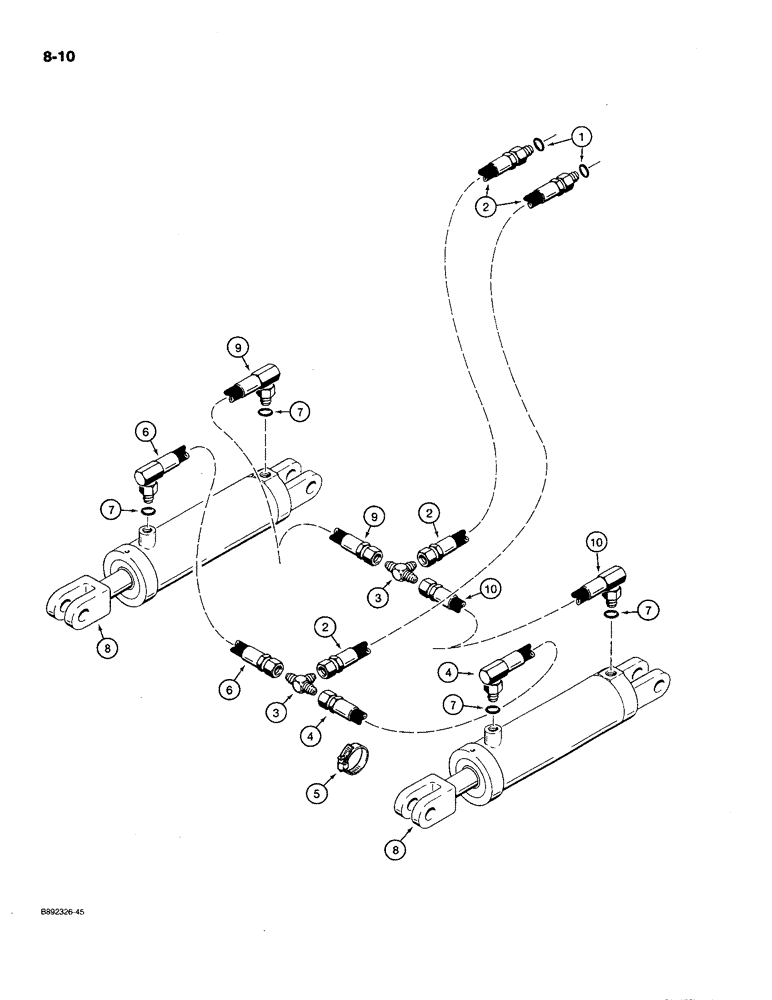

Запчасти Case IH 780 (8-10) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL WELDED TYPE CYLINDER (08) - HYDRAULICS

1/2" ID Supply & Return Hoses, Without Diverter Valve

1шт.

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

2

100971C1

HYDRAULIC HOSE,0.50" ID x 225.00", SAE 100R1

- 220 inch long, Tractor to tee

2шт.

3

9402983

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare

2шт.

4

653320R91

HOSE

- 66 inch long, tee to right-hand cylinder, rod end

1шт.

5

515030R1

CLAMP

- hose

1шт.

6

129590C1

HYDRAULIC HOSE

HOSE - tee to left-hand cylinder, rod end

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

71958C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-32

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

9

653317R91

HOSE ASSY.

HOSE - 28 inch long, tee to left-hand cylinder, closed end

1шт.

10

129590C1

HYDRAULIC HOSE

HOSE - tee to right-hand cylinder, closed end

1шт.
