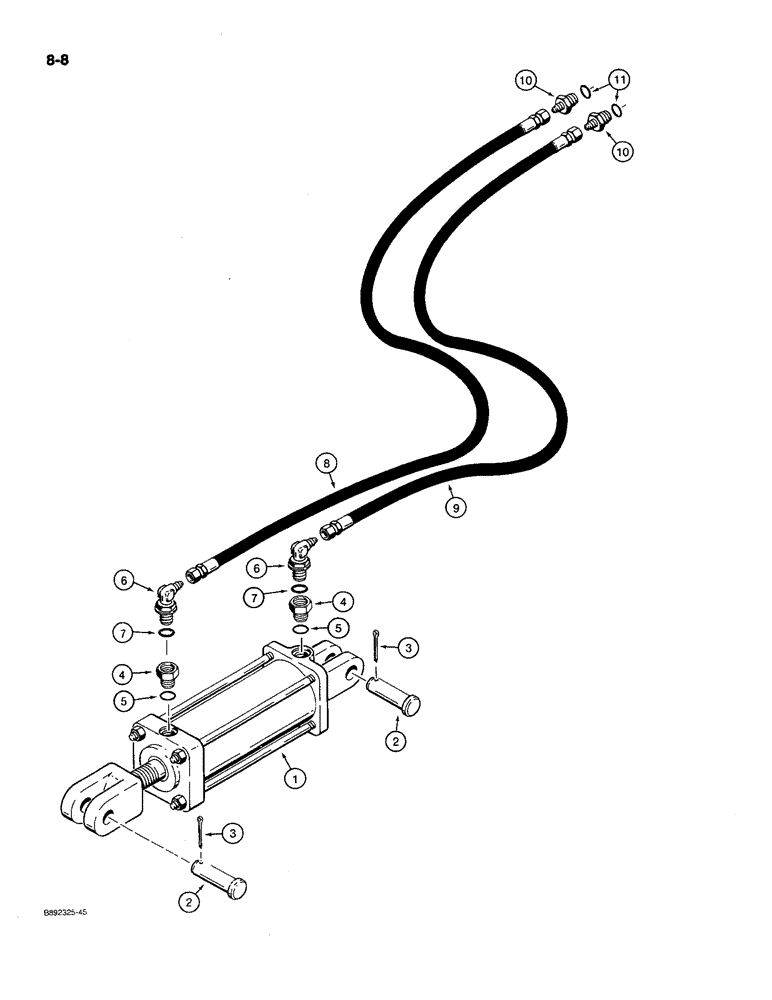

Запчасти Case IH 780 (8-08) - TRANSPORT LIFT HYDRAULIC CIRCUIT, 4 IN. ID SINGLE CYLINDER (08) - HYDRAULICS

3/8" ID Supply & Return Hoses, Hoses with Female Ends, Without Diverter Valve

1шт.

1

84995C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, no longer available, parts list Figure 8-50, if used, for service order 1272150C91 cylinder assembly, parts list Figure 8-54

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

145213C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-48, if used, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

108681C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-46, if used, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54, also order (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

145435C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-52, if used

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, parts list Figure 8-54, if used

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

2

28536R1

CLEVIS PIN,1 1/4" x 3 1/2"

PIN - clevis, 1-1/4 x 3-1/2 inch

2шт.

3

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

4

1252130C1

ADAPTER

- straight, 3/4-16 female x 9/16-18 inch male O-ring, if used

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1284292C1

HYDRAULIC HOSE

HOSE - 3/8 ID x 245 inch, tractor to cylinder, rod end

1шт.

9

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

HOSE - 3/8 ID x 225 inch, tractor to cylinder, closed end

1шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
