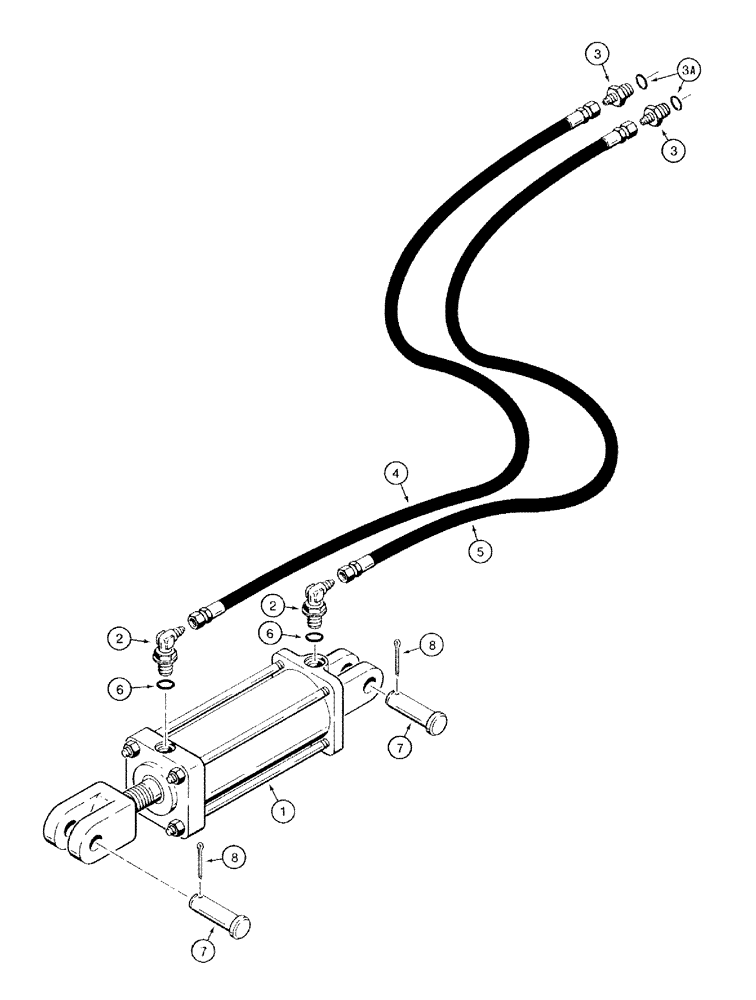

Запчасти Case IH 770 (08-02) - TRANSPORT LIFT HYDRAULIC CIRCUIT, HOSES WITH FEMALE ENDS, DISK HARROWS CODED A, B AND C (08) - HYDRAULICS

1

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, transport lift, if used (Replaces 1272147C91)

1шт.

Disk Harrow coded A

1шт.

See Figure 08-16 for service parts

1шт.

1

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, if used

1шт.

Disk Harrows coded B and C

1шт.

See Figure 08-18 for service parts

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 9/16-18 flare x 3/4-16 inch O-ring boss, Use with 3/8 inch ID hoses

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, use with 1/2 inch ID hoses

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, use with 3/8 inch ID hoses, Inc. REF 3A

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

147886C1

HOSE,0.50" ID x 175.00", SAE 100R7

- 1/2 inch ID x 4445 mm (175 inch) long

1шт.

No longer available, order 1 each: 1284304C1 hose, 218-5354 connector, 218-792 connector and 218-344 nut

1шт.

4

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 3/8 inch ID x 4445 mm (175 inch) long, to cylinder, rod end

1шт.

5

147885C1

HOSE

- 1/2 inch ID x 4140 mm (163 inch) long

1шт.

No longer available, order 1 each: 129782C2 hose, 218-5354 connector, 218-792 connector and 218-344 nut

1шт.

5

129782C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 4140 mm (163 inch) long, to cylinder, closed end

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Included with 218-5128 elbow

2шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Included with 218-5106 elbow

2шт.

7

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

PIN - clevis, 1 x 3-1/4 inch, if used

2шт.

7

810751C1

PIN

- clevis, 1 x 3-1/2 inch, if used

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.
