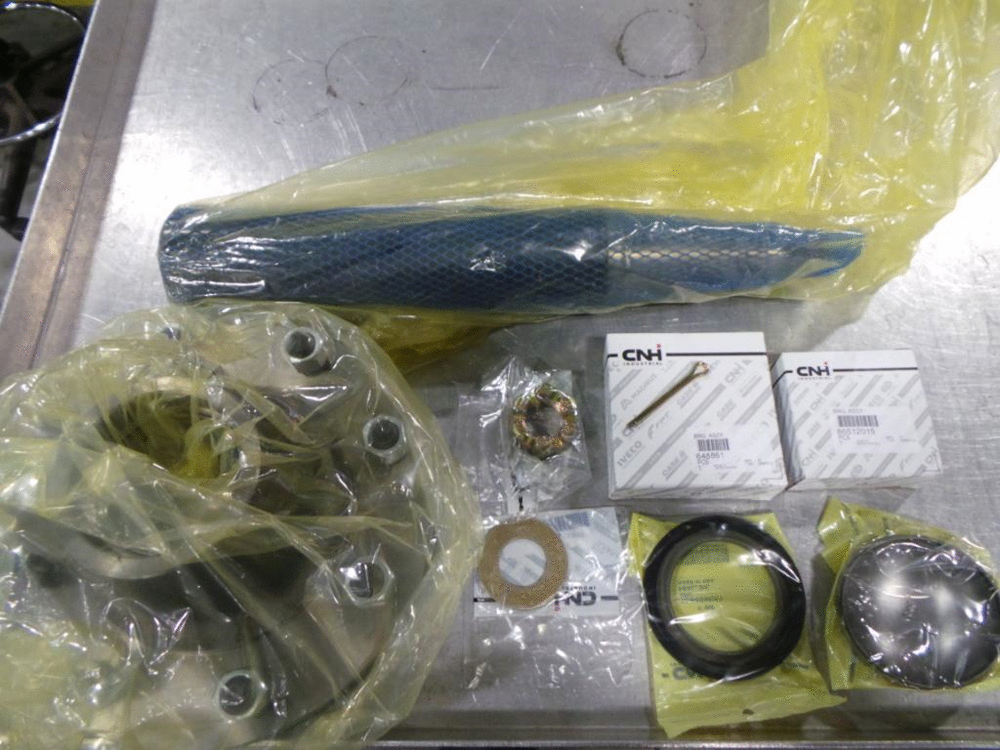

Запчасти Case IH 770 (09-30[02]) - KIT HUB AND SPINDLE ASSY 60-8 (09) - CHASSIS/ATTACHMENTS

1

224225A1

AXLE

Incl 2 - 10

1шт.

2

87407202

HUB

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

4

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

1шт.

5

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

1шт.

6

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

1шт.

7

87400

COTTER PIN,3/16" x 2"

1шт.

8

86632555

SLOTTED NUT,1 1/8"-12, G5

1шт.

9

427955A1

CAP

1шт.

10

199100A1

SPINDLE

1шт.
