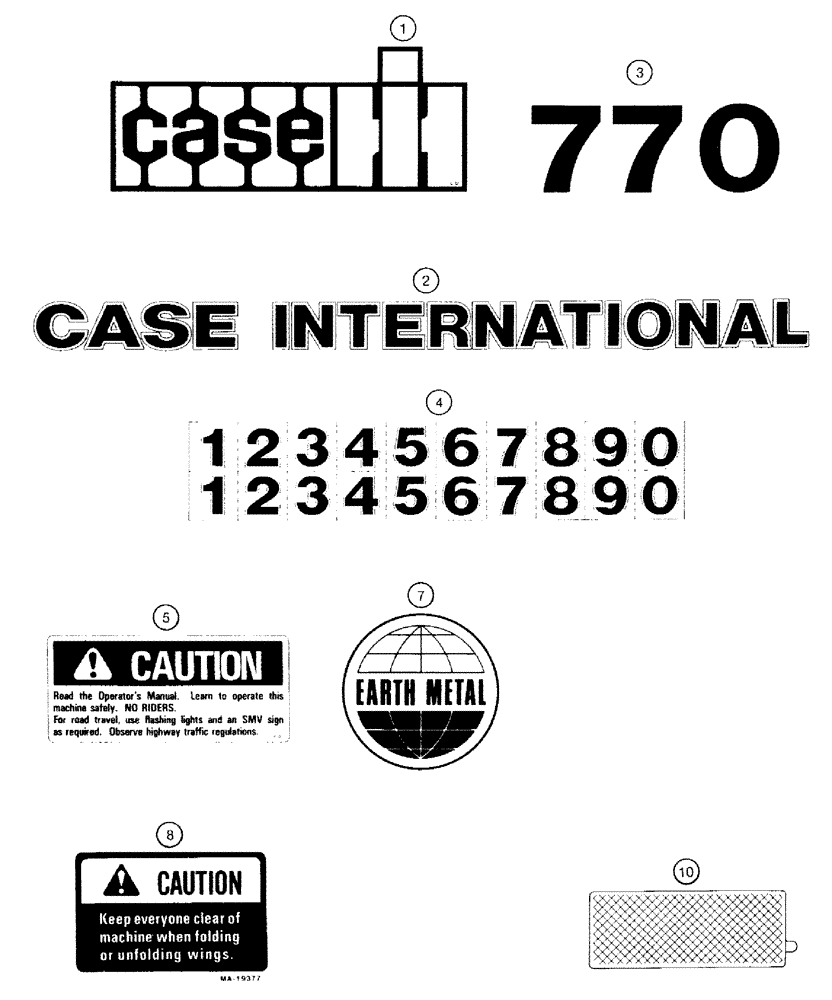

Запчасти Case IH 770 (09-24) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

1

95730C1

DECAL

- CaseIH trademark, 32 x 104 mm, if used

2шт.

1

95731C1

DECAL

- CaseIH trademark, 64 x 156 mm, if used

2шт.

1

91401C1

DECAL

- CaseIH trademark, 85 x 210 mm, if used

2шт.

1

95732C1

DECAL,Case IH Logo

- CaseIH trademark, 106 x 260 mm, if used

2шт.

2

1973420C1

DECAL

- CASE-INTERNATIONAL, 19/32 x 9-3/4 inch, for red background, if used

1шт.

2

1973422C1

DECAL

- Case International, 25 x 412 mm, for red background, if used

1шт.

2

1973422C1

DECAL

- CASE-INTERNATIONAL, 1 x 16-1/4 inch, for red background, if used

1шт.

2

1973423C1

DECAL

- CASE-INTERNATIONAL, 1-3/16 x 19-1/2 inch, for red background, if used

1шт.

2

1973426C1

DECAL

- Case International, 70 x 625 mm, for red background, if used

1шт.

2

1973427C1

DECAL

- CASE-INTERNATIONAL, 1-31/32 x 32-15/32 inch, for red background, if used

1шт.

2

1973428C1

DECAL

- CASE-INTERNATIONAL, 2-23/64 x 39 inch, for red background, if used

1шт.

2

1973428C1

DECAL

- CASE-INTERNATIONAL, 2-23/64 x 39 inch, for red background, if used

1шт.

2

1978600C1

DECAL

- CASE-INTERNATIONAL, 1 x 16-13/32 inch, for black background, if used

1шт.

2

1978600C1

DECAL

- CASE-INTERNATIONAL, 1-3/8 x 23-11/16 inch, for black background

1шт.

2

1978601C1

DECAL

- CASE-INTERNATIONAL, 1-3/8 x 23-11/16 inch, for black background, if used

1шт.

3

95865C1

DECAL

- model number, 770

1шт.

4

96009C1

DECAL

- model, set of black numbers, 25 mm high, if used

1шт.

4

96010C1

DECAL

- model, set of black numbers, 40 mm high, if used

1шт.

4

96011C1

DECAL

- model, set of black numbers, 55 mm high, if used

1шт.

4

96012C1

DECAL

- model, set of black numbers, 70 mm high, if used

1шт.

4

96013C1

DECAL

- model, set of black numbers, 85 mm high, if used

1шт.

4

96014C1

DECAL

- model, set of black numbers, 100 mm high, if used

1шт.

4

96015C1

DECAL

- model, set of black numbers, 115 mm high, if used

1шт.

5

220321A1

WARNING DECAL

DECAL - caution, general information

1шт.

6

220322A1

CAUTION DECAL

DECAL - caution, general information (French), not shown

1шт.

7

147782C1

DECAL

- Earth Metal

1шт.

8

59051C3

WARNING DECAL

DECAL - caution, keep everyone clear

1шт.

9

80597C3

CAUTION DECAL

DECAL - caution, keep everyone clear (French), not shown

1шт.

10

1284365C2

REFLECTOR

- amber

1шт.

10

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

80539C93

PACKAGE

KIT - decal, Inc. REF 5, 7, 8 and 10

1шт.

11

192849A2

DECAL

- CASE IH, 85 mm (3-11/32 inch) (Not Shown)

1шт.

11

192848A2

DECAL

- CASE IH, 75 mm (2-61/64 inch) (Not Shown)

1шт.

12

198204A1

DECAL

- model , 770 CaseIH (Not Shown)

1шт.
