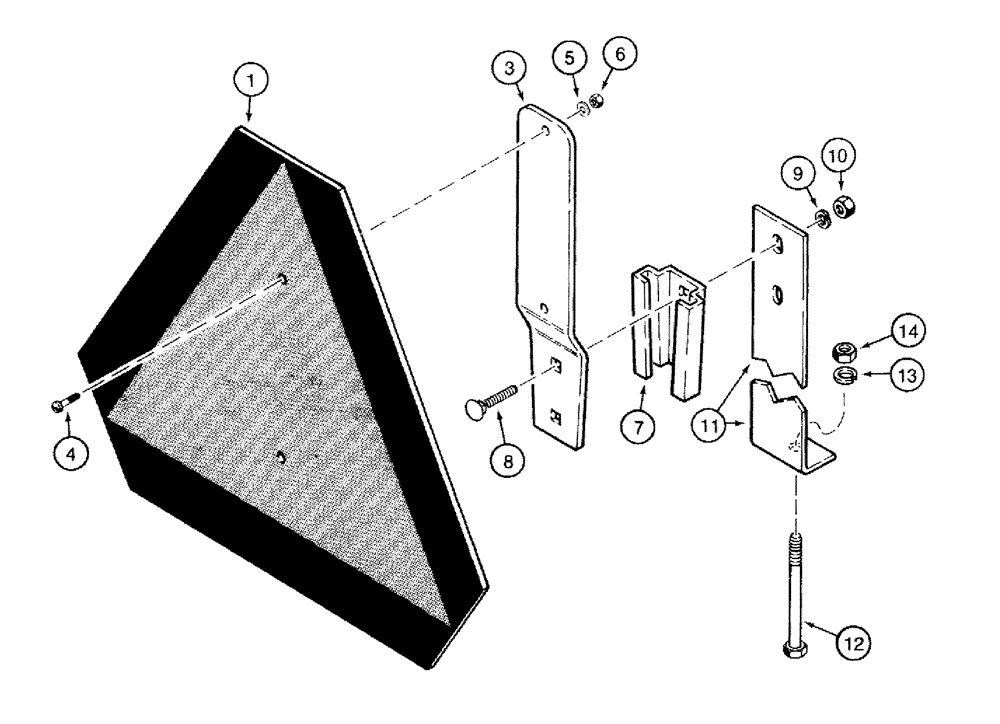

Запчасти Case IH 770 (09-22) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle emblem, Inc. REF 1 - 7

1шт.

No longer available, for service order A59450 and A59457

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle, Inc. REF 2

1шт.

2

311858A1

DECAL

- SMV emblem, not shown

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

4

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head, No. 10 NC x 1/2 inch

2шт.

5

495-31022

WASHER,#10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

A59457

BRACKET

SOCKET - SMV emblem

1шт.

8

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

131946C1

SUPPORT

BRACKET - mounting, SMV socket

1шт.

11

06000099

BRACE

Mounting, SMV for frame 60108C4

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

87426569

U-BOLT

SMV mounting bracket, for frame 60108C4 (not shown)

1шт.

86992213

NUT

3/8 in (not shown)

2шт.
