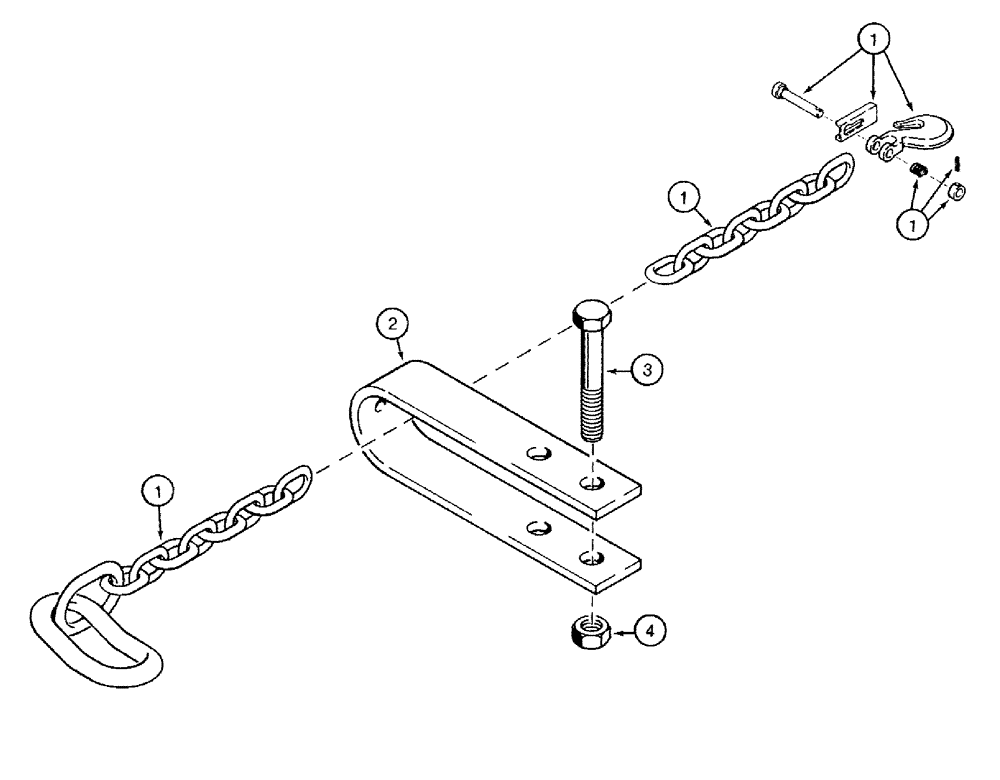

Запчасти Case IH 770 (09-21) - SAFETY CHAIN (09) - CHASSIS/ATTACHMENTS

1

700705598

CHAIN (CE)

CHAIN - safety, 5/16 link x 59 inch long (Replaces 100682C3)

1шт.

2

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

4

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

18444R1

NUT,3/4"-10, GB

- hex, self-locking, 3/4 inch NC

1шт.
