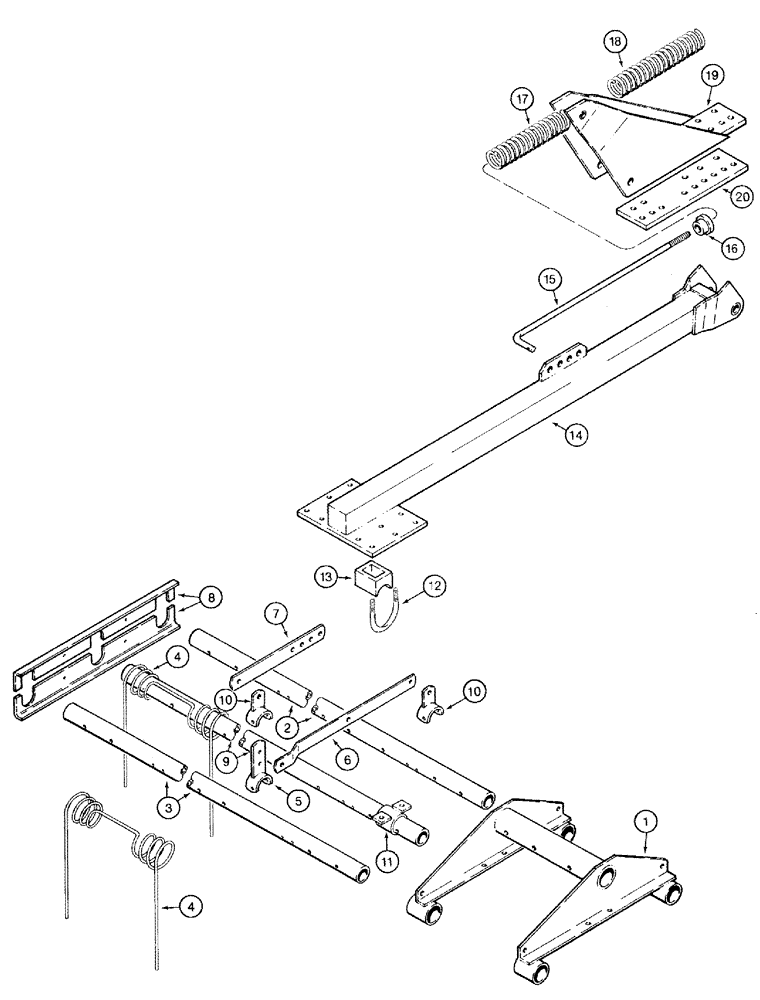

Запчасти Case IH 770 (09-19) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE, UNITS BUILT PRIOR TO 1980 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
485615R2
FRAME
- tooth bar, 4-3/4 foot long (Disk Harrow coded B and C)
2шт.
1
485616R2
FRAME
- tooth bar, 6 foot long (Disk Harrow coded A)
2шт.
1
485616R2
FRAME
- tooth bar, 6 foot long (Disk Harrow coded B and C)
1шт.
2
485596R1
TUBE
BAR - first tooth, for 4-3/4 foot frame
2шт.
2
485599R1
TUBE
BAR - first tooth, for 6 foot frame
1-2шт.
3
485597R1
TUBE
BAR - third tooth, for 4-3/4 foot frame
2шт.
3
485600R1
TUBE
BAR - third tooth, for 6 foot frame
1-2шт.
432-1648
COTTER PIN,1/4" x 3"
Pin, Split (Cotter), 1/4" x 3"
1шт.
4
72901C1
TOOTH
- bar (12 used per each 4-3/4 foot frame)
24шт.
4
72901C1
TOOTH
- bar (15 used per each 6 foot frame)
15шт.
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
Shoulder (2 used per tooth) (Replaces 487082R1) (Also Order 485591R1 Spacer) Hex, 3/8"-16 x 2 3/4", G5
1шт.
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)
1шт.
5
485592R1
ARM
HANDLE - bar, one used per frame
2-3шт.
413-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
- hex, 7/16 NC x 2-3/4 inch
4-6шт.
230-4217
LOCK NUT,7/16"-14, GA
NUT - hex, self-locking, 7/16 inch NC
4-6шт.
6
485593R1
SUPPORT
EXTENSION - handle, 19-1/4 inch long, one used per frame
2-3шт.
7
485594R1
BAR
EXTENSION - handle, 12-1/4 inch long, one used per frame
2-3шт.
21685R1
RIVET,Tr Hd, 3/8" x 1"
- 3/8 X 1 inch
1шт.
87019792
WASHER,0.47" ID x 0.92" OD x 0.1" Thk
- flat, 15/32 x 59/64 x 3/32 inch
1шт.
432-1016
COTTER PIN,5/32" x 1"
5/32" x 1"
1шт.
480523R1
HAIR PIN COTTER
1шт.
8
485598R1
SUPPORT
RAIL - center, half section, two per frame
4-6шт.
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
8-12шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
8-12шт.
9
485604R1
TUBE
BAR - second tooth, one used per 4-3/4 foot frame
2шт.
9
485605R1
TUBE
BAR - second tooth, one used per 6 foot frame
1-2шт.
432-1648
COTTER PIN,1/4" x 3"
Pin, Split (Cotter), 1/4" x 3"
1шт.
10
485601R1
ARM
POST - center, first and second tooth bar, 2 used per frame
4-6шт.
Q3542
HEADED PIN,11.1mm OD x 38.1mm L
PIN - clevis, 7/16 x 1-1/2 inch
4-6шт.
432-1016
COTTER PIN,5/32" x 1"
5/32" x 1"
4-6шт.
413-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
- hex, 7/16 NC x 2-3/4 inch
4-6шт.
230-4217
LOCK NUT,7/16"-14, GA
NUT - hex, self-locking, 7/16 inch NC
4-6шт.
11
485603R1
BUSHING
- second tooth bar, 2 used per frame
4-6шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch, 2 used per bushing
8-12шт.
492-11038
LOCK WASHER,3/8"
2 used per bushing 3/8"
8-12шт.
9628503
NUT,3/8"-16, G5
2 used per bushing 3/8"-16, G5
8-12шт.
12
490688R1
BOLT,1/2" - 13 x 4 1/2"
U BOLT - 1/2 inch NC, 4 used per frame
8-12шт.
13
490687R1
CLAMP
- U bolt to arm, 2 used per frame
4-6шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
16-24шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
16-24шт.
14
75220C1
ARM
- mounting, one used per frame
2-3шт.
280609
CARRIAGE BOLT,3/4" - 10 x 6", Gr 5
BOLT - hex, 3/4 NC x 6 inch
2-3шт.
232-41112
NUT,3/4"-10, GC
NUT, LOCK, 3/4"-10, GC
2-3шт.
15
596580R1
ROD
- adjustment, one used per frame
2-3шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1-1/2"
2-3шт.
178375R1
WASHER
- flat, 3/4 x 1-1/4 x 1/16 inch
2-3шт.
16
1431BX
COLLAR CLAMP
COLLAR ASSEMBLY - with set screw, one used per frame
2-3шт.
83-15016
SET SCREW,Hex Soc, 1/2"-13 x 1"
SCREW - set, square head, 1/2 NC x 3/4 inch
1шт.
178375R1
WASHER
- flat, 3/4 x 1-1/4 x 1/16 inch
2-3шт.
425-1412
JAM NUT,Jam, 3/4"-10, G5
- hex, jam, 3/4 inch NC
4-6шт.
17
596574R1
SPRING
- compression, lower, one used per frame
2-3шт.
18
485611R1
SPRING
- compression, upper, one used per frame
2-3шт.
19
75221C1
BRACKET
- mulcher attaching, one used per frame
2-3шт.
20
75222C1
CLAMP
PLATE - bracket, one used per frame
2-3шт.
75223C1
STUD
- plate to bracket, 4 used per plate
8-12шт.
425-1010
NUT,5/8"-11, G5
4 used per plate 5/8"-11, G5
8-12шт.
Выбрано товаров: 58
