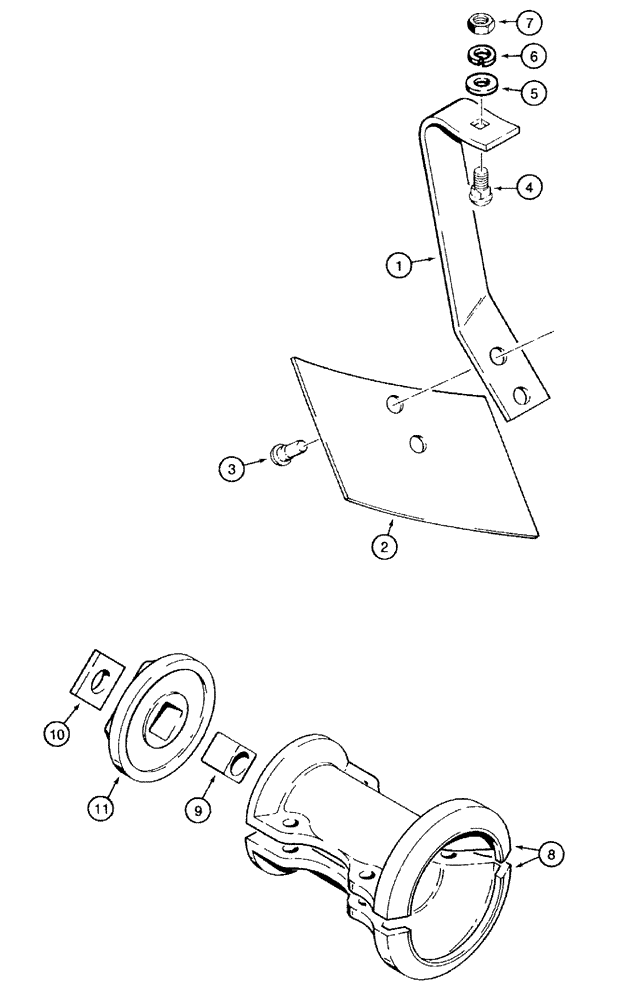

Запчасти Case IH 770 (09-19) - FURROW FILLER AND FURROW FILLER DISK SCRAPER, WITH FOUR BOLT RETAINED SPOOL HALF SECTIONS (09) - CHASSIS/ATTACHMENTS

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, Inc. REF 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper

1шт.

2

121469C1

BLADE

- scraper

1шт.

3

147-351

RIVET,12.7mm OD x 38.1mm L

- blade retaining, 1/2 x 1-1/2 inch

2шт.

4

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

5

495-51066

WASHER,9/16" x 1 1/4" x .1"

- flat, 21/32 x 1-3/4 x 3/32 inch

1шт.

6

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

1шт.

7

425-1010

NUT,5/8"-11, G5

1шт.

8

129797C1

HUB

SPOOL - furrow filler, half section, 9-1/4 inch long

2шт.

424-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2

- hex, 1/2 NC x 1-1/2 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

1шт.

10

100695C1

SPACER

- driver block

1шт.

11

596769R1

SQ HOLE WASHER

WASHER - furrow filler

1шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

1шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.
