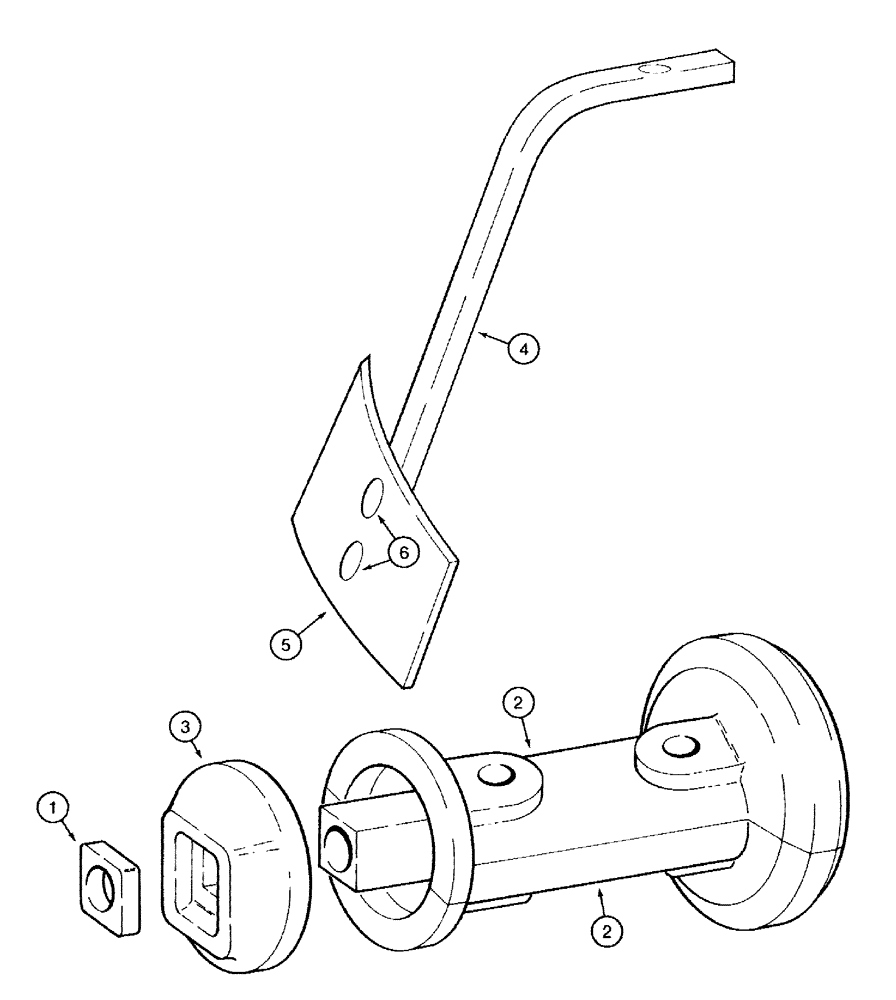

Запчасти Case IH 770 (09-18) - FURROW FILLER AND FURROW FILLER DISK SCRAPER, WITH TWO BOLT RETAINED SPOOL HALF SECTIONS (09) - CHASSIS/ATTACHMENTS

1

466986R1

BLOCK

SPACER - arbor bolt head washer

1шт.

2

482970R2

SPOOL

- furrow filler, half section

2шт.

424-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 2

- hex, 1/2 NC x 3-1/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

- hex, 3/4 NC x 2-1/2 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

3

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head

1шт.

540461R92

SCRAPER

BLADE ASSEMBLY - scraper, Inc. REF 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper

1шт.

5

483096R2

KNIFE ASSY

BLADE - scraper

1шт.

6

49-614

RIVET,Tr Hd, 3/8" x 7/8"

- 3/8 X 7/8 inch

2шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.
