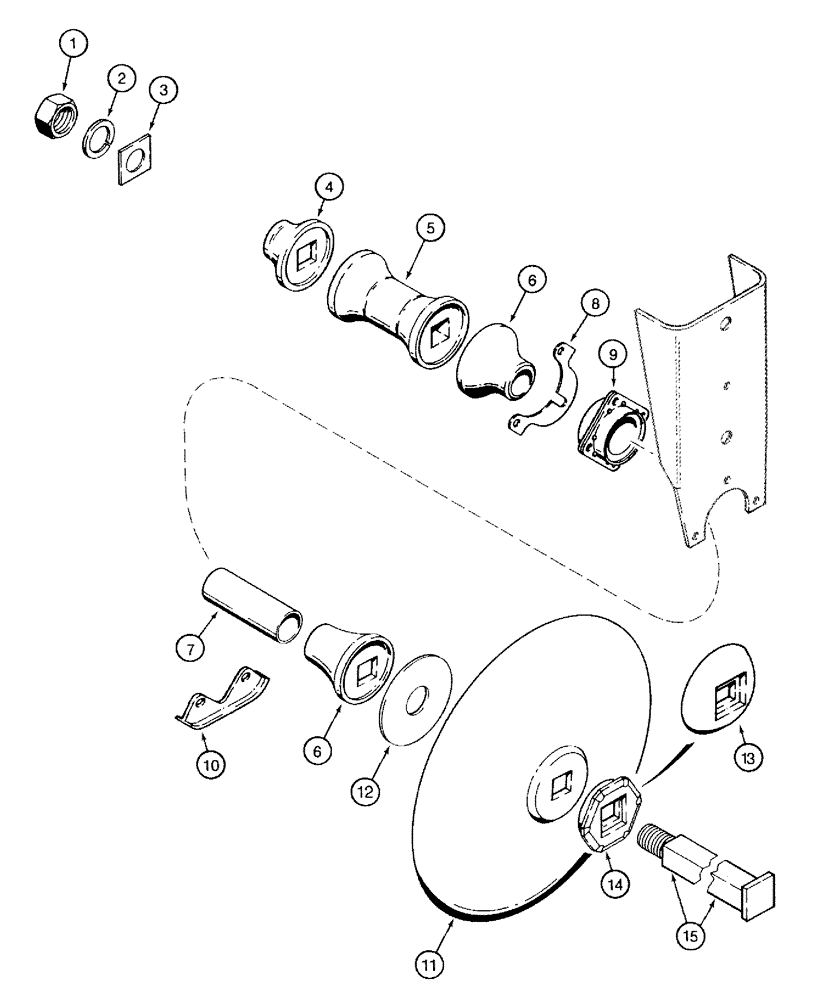

Запчасти Case IH 770 (09-17) - DISKS AND BEARINGS (09) - CHASSIS/ATTACHMENTS

1

425-1024

NUT,1 1/2"-6, G5

- hex, 1-1/2 inch NC, one used per arbor bolt

1шт.

2

492-21150

LOCK WASHER,1 1/2"

1 used per arbor bolt 1 1/2"

1шт.

3

488836R2

NUT

LOCK - arbor bolt washer, one used per arbor bolt

1шт.

4

549973R2

SQ HOLE WASHER

- arbor bolt, one used per arbor bolt

1шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrow coded A)

12шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrow coded B)

14шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrows coded C and D)

16шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrow coded E)

20шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrows coded F and H)

24шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrow coded G)

26шт.

5

549976R1

SPOOL

- disk spacing, 10-1/2 inch long (Disk Harrow coded J)

28шт.

6

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing (Disk Harrow coded A)

16шт.

6

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing (Disk Harrow coded B)

20шт.

6

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing (Disk Harrows coded C, D, E and F)

24шт.

6

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing (Disk Harrows coded G and H)

32шт.

6

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing (Disk Harrow coded J)

40шт.

7

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support (Disk Harrow coded A)

8шт.

7

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support (Disk Harrow coded B)

10шт.

7

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support(Disk Harrows coded C, D, E and F)

12шт.

7

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support (Disk Harrows coded G and H)

16шт.

7

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support (Disk Harrow coded J)

20шт.

8

58919C1

SHIM

- bearing, 0.187 inch thick

1шт.

8

139617C1

SHIM

- bearing, 0.095 inch thick

1шт.

9

ST740B

BALL BEARING,55.58mm ID

BEARING - ball, with grease fitting (Disk Harrow coded A)

8шт.

9

ST740BGV

BEARING

Value, Ball Bearing

8шт.

9

ST740B

BALL BEARING,55.58mm ID

BEARING - ball, with grease fitting (Disk Harrow coded B)

10шт.

9

ST740BGV

BEARING

Value, Ball Bearing

10шт.

9

ST740B

BALL BEARING,55.58mm ID

BEARING - ball, with grease fitting (Disk Harrows coded C, D, E and F)

12шт.

9

ST740BGV

BEARING

Value, Ball Bearing

12шт.

9

ST740B

BALL BEARING,55.58mm ID

BEARING - ball, with grease fitting (Disk Harrows coded G and H)

16шт.

9

ST740BGV

BEARING

Value, Ball Bearing

16шт.

9

ST740B

BALL BEARING,55.58mm ID

BEARING - ball, with grease fitting (Disk Harrow coded J)

20шт.

9

ST740BGV

BEARING

Value, Ball Bearing

20шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 5/64 inch, If used

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

10

129753C1

BEARING COVER

- bearing wear, one used per bearing

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2 used per guard Hex, 1/2"-13 x 1 3/4", G5

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch, 2 used per guard

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 2 used per guard 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used per guard 1/2"-13, G5

1шт.

11

549991R2

DISK HARROW

DISK - solid, 22 inch diameter x 6.5 mm thick

1шт.

11

549990R2

DISK HARROW

DISK - notched, 22 inch diameter x 6.5 mm thick

1шт.

11

549987R2

DISK HARROW

DISK - solid, 24 inch diameter x 6.5 mm thick

1шт.

11

549986R2

DISK HARROW

24CL5

1шт.

11

58934C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

11

58917C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

11

27601R3

DISK HARROW

DISK, 28.5"X 6.5MM CLV/LF

1шт.

11

27600R3

DISC

DISK, 28.5"X 6.5MM CLV/LF

1шт.

11

28336R3

DISK HARROW

DISK - solid, 26 inch diameter x 8 mm thick

1шт.

11

28345R3

DISK HARROW

DISK, 26.5"X8MM SR5

1шт.

11

31224R3

DISK HARROW

DISK, 28.5"X 8.00MM

1шт.

11

31225R3

DISK HARROW

DISK - notched, 28 inch diameter x 8 mm thick

1шт.

12

139684C1

SPACER

- disk blade, used with 6 gauge disk blades, 2 ID x 6 OD x 3/16 inch thick

1шт.

13

549975R2

SQ HOLE WASHER

- bumper, front gangs, one used per arbor bolt

1шт.

14

100697C1

WASHER

- furrow filler, rear gang arbor bolt

1шт.

15

58831C1

SQUARE BOLT

BOLT - arbor, 1-1/2 inch NC x 47-1/4 inch (Disk Harrow coded B)

2шт.

15

549978R1

SQUARE BOLT

BOLT - arbor, 1-1/2 inch NC x 57-29/32 inch

1шт.

15

549978R1

SQUARE BOLT

BOLT - arbor, 1-1/2 inch NC x 57-29/32 inch (Disk Harrow coded G)

2шт.

15

549978R1

SQUARE BOLT

BOLT - arbor, 1-1/2 inch NC x 57-29/32 inch (Disk Harrows coded A and J)

4шт.

15

549978R1

SQUARE BOLT

BOLT - arbor, 1-1/2 inch NC x 57-29/32 inch (Disk Harrow coded H)

8шт.

15

549980R1

BOLT,1 1/2" - 6 x 2004mm

- arbor, 1-1/2 inch NC x 78-29/32 inch (Disk Harrow coded C, D and J)

4шт.

15

549981R1

BOLT,1 1/2" - 6 x 2271mm

- arbor, 1-1/2 inch NC x 89-13/32 inch (Disk Harrow coded B , E and G)

2шт.

15

60173C1

BOLT

- arbor, 1-1/2 inch NC x 99-15-16 inch (Disk Harrow coded F)

4шт.
