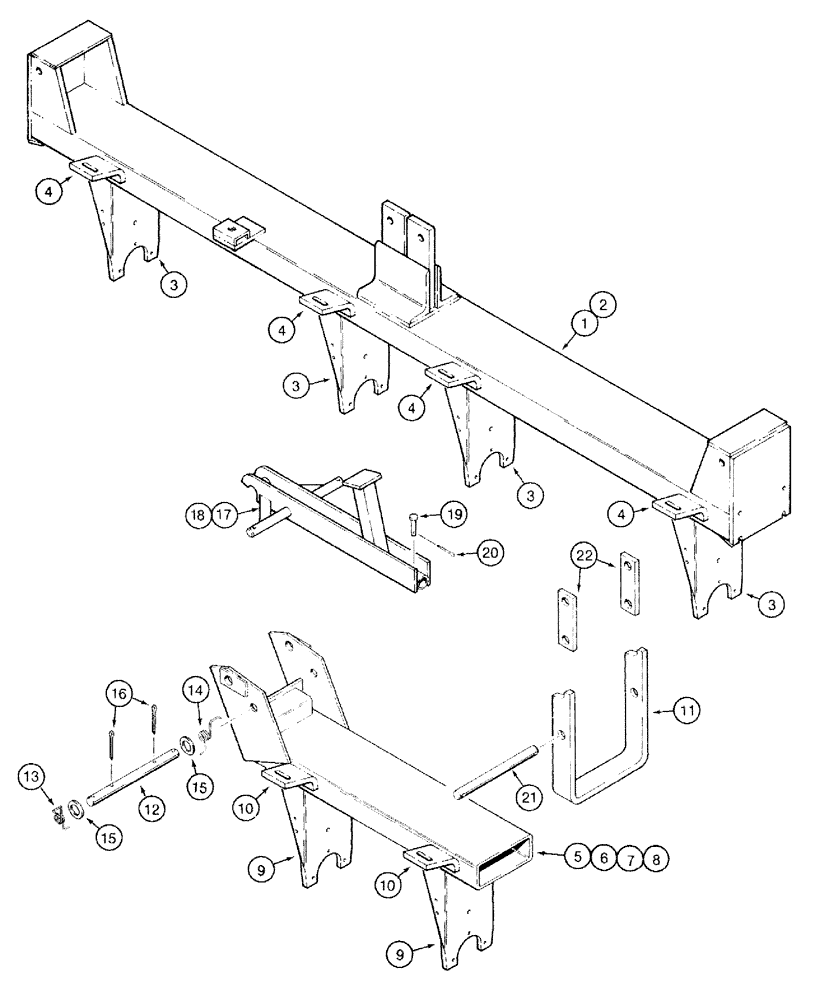

Запчасти Case IH 770 (09-16) - GANG FRAMES, USED WITH FOLDING FRAME, P.I.N. 18101 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

129544C3

BAR

FRAME - rear main gang, Inc. REF 3, 4 (Disk Harrow coded H)

1шт.

2

129543C3

BAR ASSY.

FRAME - front main gang, not shown, Inc. REF 3, 4 (Disk Harrow coded H)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded H)

4шт.

4

121105C2

BRACKET

- scraper angle, left-hand, used with REF 2 (Disk Harrow coded H)

4шт.

4

121106C2

BRACKET

- scraper angle, right-hand, used with REF 1 (Disk Harrow coded H)

4шт.

1

129546C3

BAR ASSY.

FRAME - rear main gang, Inc. REF 3, 4 (Disk Harrow coded J)

1шт.

2

129545C2

BAR

FRAME - front main gang, not shown, Inc. REF 3, 4 (Disk Harrow coded J)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded J)

6шт.

4

121105C2

BRACKET

- scraper angle, left-hand, used with REF 2 (Disk Harrow coded J)

4шт.

4

121106C2

BRACKET

- scraper angle, right-hand, used with REF 1 (Disk Harrow coded J)

4шт.

1263502C91

EXTENSION

FRAME ASSEMBLY - rear wing gang, left-hand, Inc. REF 5, 9 - 16

1шт.

1263501C91

EXTENSION

FRAME ASSEMBLY - rear wing gang, right-hand, Inc. REF 6, 9 - 16

1шт.

1263500C91

EXTENSION

FRAME ASSEMBLY - front wing gang, left-hand, Inc. REF 7, 9 - 16

1шт.

1263503C91

FUNNEL

FRAME ASSEMBLY - front wing gang, right-hand, Inc. REF 8 - 16

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME - rear wing gang, left-hand, Inc. REF 9 and 10

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME - rear wing gang, right-hand, not shown, Inc. REF 9 and 10

1шт.

7

NSS

NOT SOLD SEPARAT

FRAME - front wing gang, left-hand, not shown, Inc. REF 9 and 10

1шт.

8

NSS

NOT SOLD SEPARAT

FRAME - front wing gang, right-hand, not shown, Inc. REF 9 and 10

1шт.

9

139661C1

SUPPORT

- bearing

2шт.

10

121105C2

BRACKET

- scraper angle, left-hand, used with REF 7 and 8

2шт.

10

121106C2

BRACKET

- scraper angle, right-hand, used with REF 5 and 6

2шт.

11

121273C1

BRACKET

- lockout

1шт.

12

60209C1

PIN,31.8mm OD x 393.7mm L

- pivot, wing gang frame

1шт.

13

60600C1

VALVE SPRING

SPRING - gang frame pin, left-hand

1шт.

14

60601C1

VALVE SPRING

SPRING - gang frame pin, right-hand

1шт.

15

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/32 inch (Replaces 195-2120)

2шт.

16

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

17

60222C2

EXTENSION

ARM - stop, wing gang bar (Front right-hand, rear left-hand and rear right-hand) (Disk Harrow coded H)

3шт.

18

60224C1

EXTENSION

ARM - stop, wing gang bar (Front left-hand), not shown (Disk Harrow coded H)

1шт.

17

60210C2

EXTENSION

ARM - stop, wing gang bar (Front right-hand, rear left-hand and rear right-hand) (Disk Harrow coded J)

3шт.

18

60225C3

EXTENSION

ARM - stop, wing gang bar (Front left-hand), not shown (Disk Harrow coded J)

1шт.

19

439-51038

HEADED PIN,5/8" x 2 3/8"

PIN - clevis, 5/8 x 2-3/8 inch

4шт.

20

432-1216

COTTER PIN,3/16" x 1"

4шт.

21

60205C1

PIN

- bar pivot

4шт.

22

60207C2

BAR

- latch pull

8шт.
