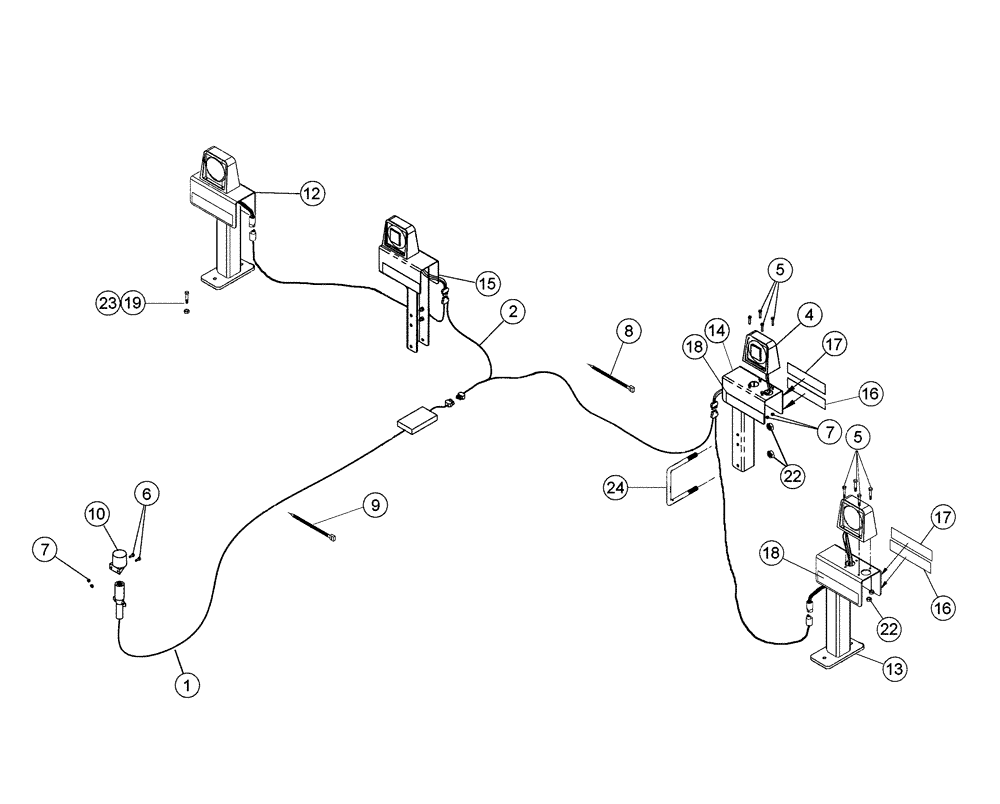

Запчасти Case IH 770 (04-01) - WARNING AND TAIL LIGHT KIT - RIGID FRAME (04) - ELECTRICAL SYSTEMS

87426613

WARNING LIGHT

Kit, Installation, Inc 1-10

1шт.

1

87426220

WIRE HARNESS

Front

1шт.

2

27602234

HARNESS

Rear

1шт.

3

27602201

LIGHT ASSY.

FIXTURE, Amber

2шт.

4

27602202

LIGHT ASSY.

FIXTURE, Red

2шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

86992211

NUT

1/4 inch

18шт.

8

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP 11-7/8 inch cable tie, black

24шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 28 inch cable tie, black

24шт.

10

27601214

HOLDER

Storage, seven pin connector

1шт.

12

87422005

BRACKET

Light, gang bar RH, Inc 16-18

1шт.

13

87422006

BRACKET

Light, gang bar LH, Inc 16-18

1шт.

14

27602410

BRACKET

Light, frame LH, Inc 16-18

1шт.

15

27602415

BRACKET

Light, frame RH, Inc 16-18

1шт.

16

311863A1

REFLECTOR

Red

1шт.

17

311865A1

REFLECTOR

Fluorescent Orange

1шт.

18

311864A1

REFLECTOR

Amber

1шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used

4шт.

21

495-21044

WASHER,3/8"

(Flat, 7/16 x 1 x 3/32 inch)

4шт.

22

86992213

NUT

3/8 inch

8шт.

23

85700693

NUT,5/8" - 11, Gr C

4шт.

24

87426569

U-BOLT

3/8 x 6 x 8 inch

2шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

If used

4шт.

27601215

LENS

Replacement, amber, plastic

1шт.

27601216

LENS

Replacement, red, plastic

1шт.

5

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.
