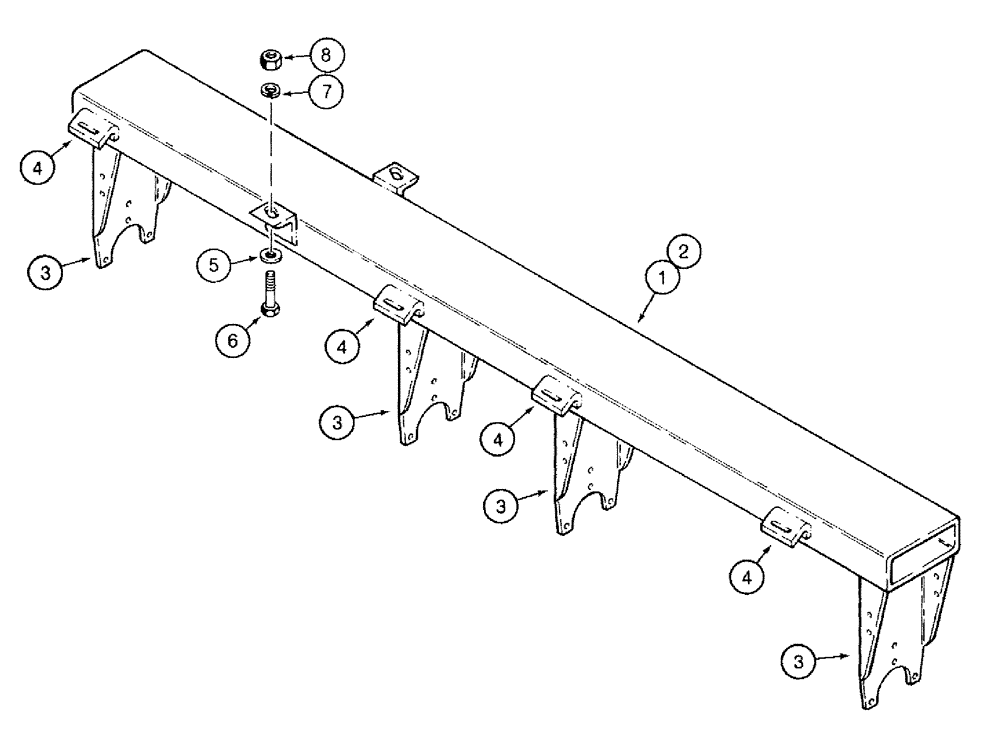

Запчасти Case IH 770 (09-15) - GANG FRAMES, USED WITH NON-FOLDING FRAME, P.I.N. 18101 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

129541C2

BAR

FRAME - front gang, Inc. REF 3, 4 (Disk Harrow coded A)

1шт.

2

129542C2

BAR

FRAME - rear gang, not shown, Inc. REF 3, 4 (Disk Harrow coded A)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded A)

4шт.

4

121105C2

BRACKET

- scraper angle, left-hand, used with REF 1 (Disk Harrow coded A)

4шт.

4

121106C2

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded A)

4шт.

1

129547C2

BAR

FRAME - front gang, Inc. REF 3, 4 (Disk Harrow coded B)

1шт.

2

129548C2

BAR

FRAME - rear gang, not shown, Inc. REF 3, 4 (Disk Harrow coded B)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded B)

5шт.

4

121105C2

BRACKET

- scraper angle, left-hand, used with REF 1

4шт.

4

121106C2

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded B)

4шт.

1

129551C2

BAR

FRAME - front gang, Inc. REF 3, 4 (Disk Harrow coded C)

1шт.

2

129552C2

BAR

FRAME - rear gang, not shown, Inc. REF 3, 4 (Disk Harrow coded C)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded C)

6шт.

4

121105C2

BRACKET

- scraper angle, left-hand, used with REF 1 (Disk Harrow coded C)

4шт.

4

121106C2

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded C)

4шт.

1

129553C1

BAR

FRAME - front gang, Inc. REF 3, 4 (Disk Harrow coded D)

1шт.

2

129571C2

BAR ASSY.

FRAME - rear gang, not shown, Inc. REF 3, 4 (Disk Harrow coded D)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded D)

6шт.

4

380787A1

BRACKET

- scraper angle, left-hand, used with REF 1 (Disk Harrow coded D)

4шт.

4

380786A1

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded D)

4шт.

1

129539C2

BAR ASSY.

FRAME - front gang, Inc. REF 3, 4 (Disk Harrow coded E)

1шт.

2

129540C2

BAR ASSY.

FRAME - rear gang, not shown, Inc. REF 3, 4 (Disk Harrow coded E)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded E)

6шт.

4

380787A1

BRACKET

- scraper angle, left-hand, used with REF 1 (Disk Harrow coded E)

6шт.

4

380786A1

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded E)

6шт.

1

129537C1

BAR

FRAME - front main gang, Inc. REF 3, 4 (Disk Harrow coded F)

1шт.

2

129538C1

BAR

FRAME - rear main gang, not shown, Inc. REF 3, 4 (Disk Harrow coded F)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded F)

6шт.

4

380787A1

BRACKET

- scraper angle, left-hand, used with REF 1 (Disk Harrow coded F)

6шт.

4

380786A1

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded F)

6шт.

1

129549C3

BAR ASSY.

FRAME - front main gang, Inc. REF 3, 4 (Disk Harrow coded G)

1шт.

2

129550C2

BAR ASSY.

FRAME - rear main gang, not shown, Inc. REF 3, 4 (Disk Harrow coded G)

1шт.

3

139661C1

SUPPORT

- bearing (Disk Harrow coded G)

8шт.

4

380787A1

BRACKET

- scraper angle, left-hand, used with REF 1 (Disk Harrow coded G)

6шт.

4

380786A1

BRACKET

- scraper angle, right-hand, used with REF 2 (Disk Harrow coded G)

6шт.

5

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 x 1-1/2 x 1/4 inch, used with 7/8 inch bolt

2шт.

6

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

7

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

8

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

5

523162R1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/4 inch, used with 1 inch bolt

2шт.

6

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

7

492-11100

LOCK WASHER,1"

1"

2шт.

8

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.
