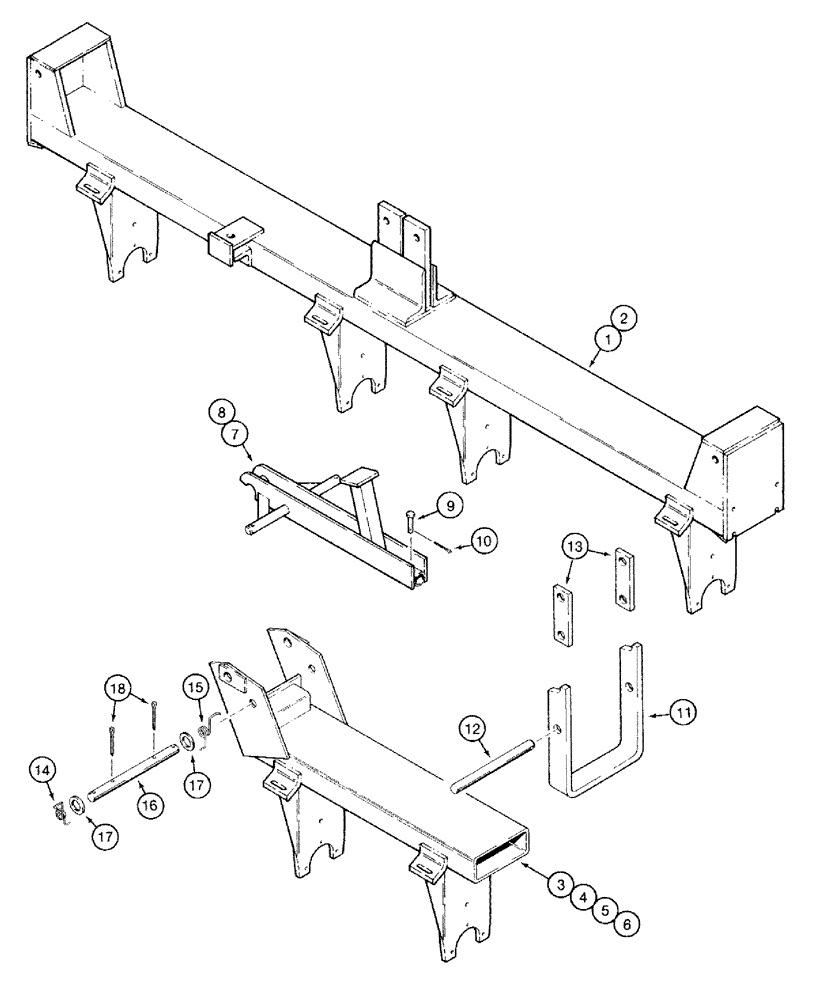

Запчасти Case IH 770 (09-14) - GANG FRAMES, USED WITH FOLDING FRAME, PRIOR TO P.I.N. 18101 (09) - CHASSIS/ATTACHMENTS

1

60186C1

BAR

FRAME - rear main gang (Disk Harrow coded H)

1шт.

2

60300C91

BAR ASSY.

FRAME - front main gang, not shown (Disk Harrow coded H)

1шт.

1

60193C1

BAR

FRAME - rear main gang (Disk Harrow coded J)

1шт.

2

60301C91

BAR ASSY.

FRAME - front main gang, not shown (Disk Harrow coded J)

1шт.

3

60204C1

BAR

FRAME - rear wing gang, right-hand (Disk Harrows coded H and J)

1шт.

4

60195C1

BAR

FRAME - rear wing gang, left-hand, not shown (Disk Harrows coded H and J)

1шт.

5

60203C1

BAR

FRAME - front wing gang, left-hand, not shown (Disk Harrows coded H and J)

1шт.

6

60196C1

BAR

FRAME - front wing gang, right-hand, not shown (Disk Harrows coded H and J)

1шт.

7

60222C2

EXTENSION

ARM - stop, wing bar (Front right-hand, rear left-hand and rear right-hand) (Disk Harrow coded H)

3шт.

8

60224C1

EXTENSION

ARM - stop, wing bar (Front left-hand), not shown (Disk Harrow coded H)

1шт.

7

60210C2

EXTENSION

ARM - stop, wing bar (Front right-hand, rear left-hand and rear right-hand) (Disk Harrow coded J)

3шт.

8

60225C3

EXTENSION

ARM - stop, wing bar (Front left-hand), not shown (Disk Harrow coded J)

1шт.

9

439-51038

HEADED PIN,5/8" x 2 3/8"

PIN - clevis, 5/8 x 2-3/8 inch

4шт.

10

432-1216

COTTER PIN,3/16" x 1"

4шт.

11

121273C1

BRACKET

- lockout

4шт.

12

60205C1

PIN

- bar pivot

4шт.

13

60207C2

BAR

- arm pull

8шт.

14

60600C1

VALVE SPRING

SPRING - gang frame pin, left-hand

4шт.

15

60601C1

VALVE SPRING

SPRING - gang frame pin, right-hand

4шт.

16

60209C1

PIN,31.8mm OD x 393.7mm L

- pivot, wing gang frame

4шт.

17

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

8шт.

18

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

8шт.
