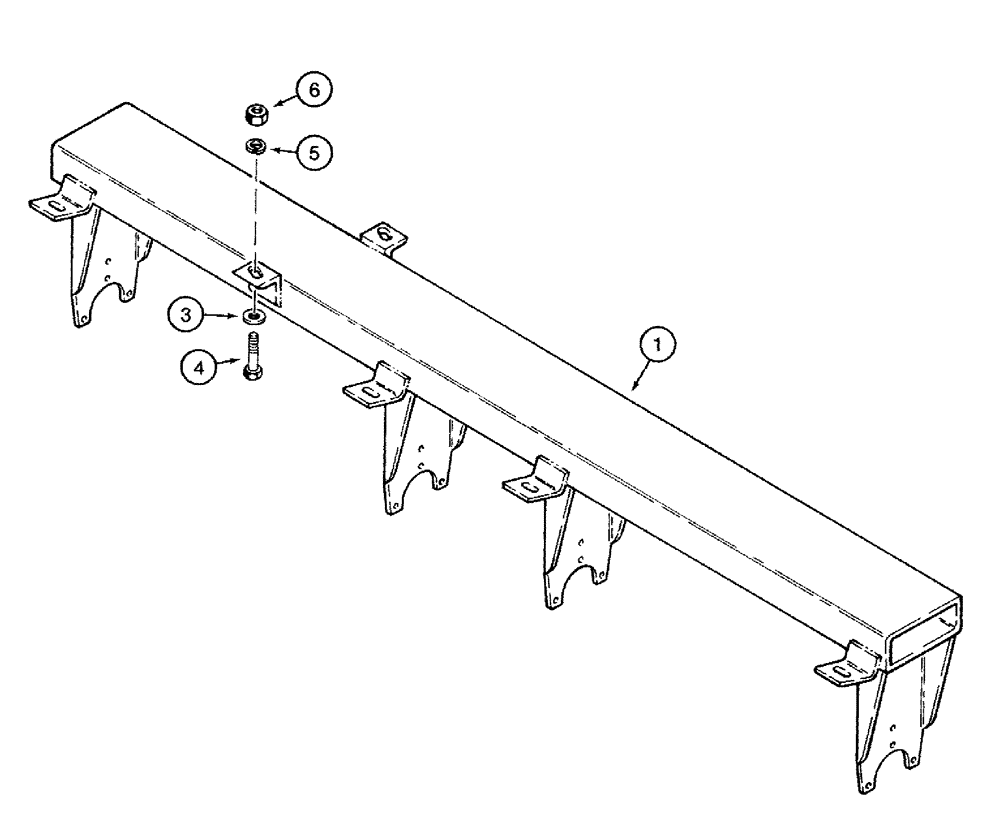

Запчасти Case IH 770 (09-13) - GANG FRAMES, USED WITH NON-FOLDING FRAME, PRIOR TO P.I.N. 18101 (09) - CHASSIS/ATTACHMENTS

1

58888C1

BAR

FRAME - front main gang (Disk Harrow coded A)

1шт.

2

58889C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded A)

1шт.

1

58892C1

BAR

FRAME - front main gang (Disk Harrow coded B)

1шт.

2

58893C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded B)

1шт.

1

58894C1

BAR

FRAME - front main gang (Disk Harrow coded C)

1шт.

2

58895C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded C)

1шт.

1

60159C2

BAR

FRAME - front main gang (Disk Harrow coded D)

1шт.

2

60160C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded D)

1шт.

1

60162C2

BAR

FRAME - front main gang (Disk Harrow coded E)

1шт.

2

60163C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded E)

1шт.

1

60165C2

BAR

FRAME - front main gang (Disk Harrow coded F)

1шт.

2

60166C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded F)

1шт.

1

60168C2

BAR

FRAME - front main gang (Disk Harrow coded G)

1шт.

2

60169C1

BAR

FRAME - rear main gang, not shown (Disk Harrow coded G)

1шт.

3

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 29/32 x 1-1/2 x 1/4 inch, used with 7/8 inch bolt

2шт.

4

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

5

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

6

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

3

523162R1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/4 inch, used with 1 inch bolt

2шт.

4

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

5

492-11100

LOCK WASHER,1"

1"

2шт.

6

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.
