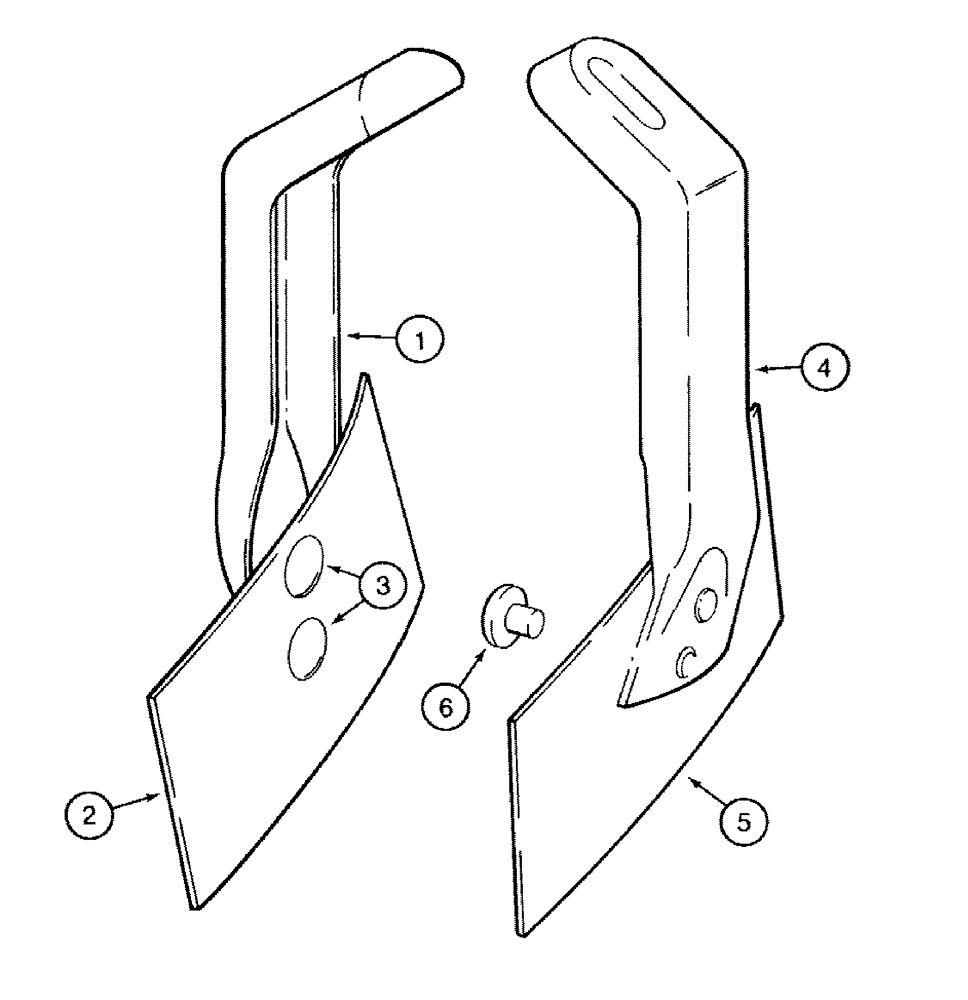

Запчасти Case IH 770 (09-11) - SCRAPERS, PRIOR TO P.I.N. 18101 (09) - CHASSIS/ATTACHMENTS

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded A)

12шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded B)

14шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded C, D)

16шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded E)

18шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded F)

20шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded G)

24шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded H)

23шт.

58876C1

HALF BLADE

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded J)

28шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

2

58878C1

BLADE

- scraper

1шт.

3

49-614

RIVET,Tr Hd, 3/8" x 7/8"

- truss head, 3/8 x 7/8 inch

2шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded A)

11шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded B)

13шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded C, D)

15шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded E)

17шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded F)

19шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded G)

23шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded H)

23шт.

58877C1

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded J)

27шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

5

58878C1

BLADE

- scraper

1шт.

6

49-614

RIVET,Tr Hd, 3/8" x 7/8"

- truss head, 3/8 x 7/8 inch

2шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded A)

23шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded A) 1/2"

23шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded A) 1/2"-13, G5

23шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded B)

27шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded B) 1/2"

27шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded B) 1/2"-13, G5

27шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded C, D)

31шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded C, D) 1/2"

31шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded C, D) 1/2"-13, G5

31шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded E)

35шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded E) 1/2"

35шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded E) 1/2"-13, G5

35шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded F)

39шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded F) 1/2"

39шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded F) 1/2"-13, G5

39шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded G)

47шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded G) 1/2"

47шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded G) 1/2"-13, G5

47шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded H)

46шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded H) 1/2"

46шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded H) 1/2"-13, G5

46шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, scraper to angle (Disk Harrow coded J)

55шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Disk Harrow coded J) 1/2"

55шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Disk Harrow coded J) 1/2"-13, G5

55шт.
