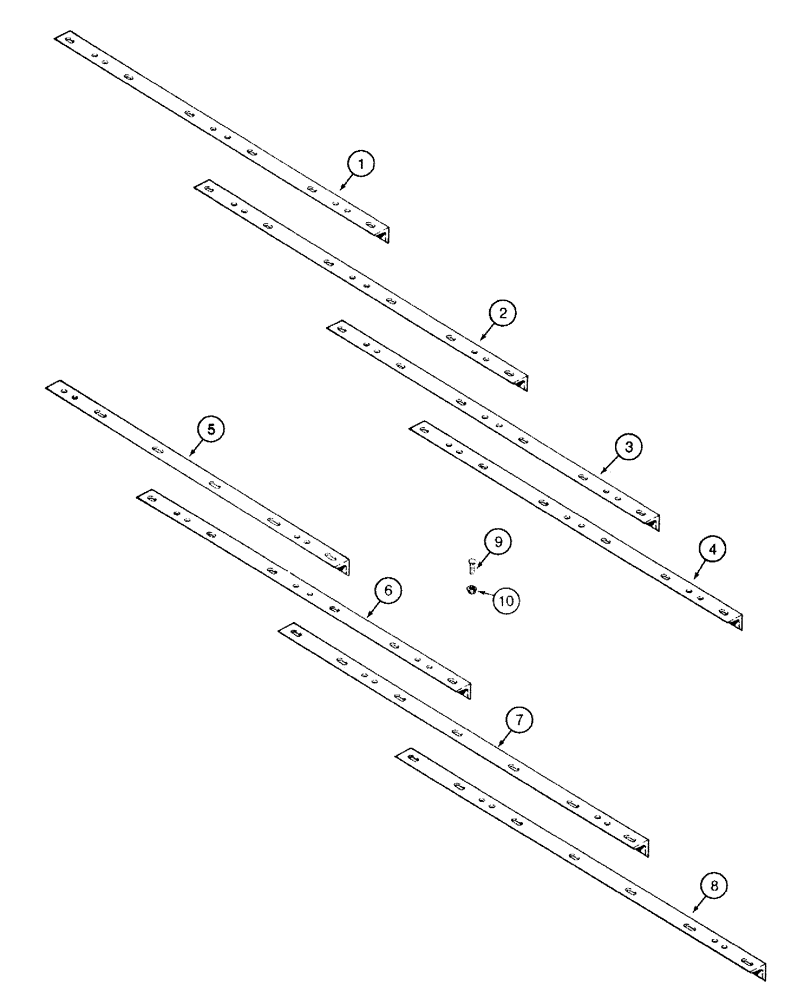

Запчасти Case IH 770 (09-10) - SCRAPER ANGLES, P.I.N. 18101 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

121225C1

ANGLE

- scraper, front wing gang frame, left-hand (Disk Harrows coded H and J)

1шт.

2

121225C1

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrows coded A, G and H)

1шт.

2

121304C2

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrows coded B, C, D and J)

1шт.

2

129555C1

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrow coded E)

1шт.

2

121302C2

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrow coded F)

1шт.

3

121226C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Haarrows coded A and B)

1шт.

3

121302C2

ANGLE

- scraper, front main gang frame, right-hand (Dish Harrows coded C and D)

1шт.

3

121304C2

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrows coded E and J)

1шт.

3

121225C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded H)

1шт.

3

121225C1

ANGLE

- scraper, front main gang frame, center (Disk Harrow coded F)

1шт.

3

129555C1

ANGLE

- scraper, front main gang frame, center (Disk Harrow coded G)

1шт.

4

121225C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded F)

1шт.

4

121304C2

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded G)

1шт.

4

121225C1

ANGLE

- scraper, front wing gang frame, right-hand (Disk Harrows coded H and J)

1шт.

5

129783C1

ANGLE

- scraper, rear wing gang frame, left-hand (Disk Harrow coded H)

1шт.

5

121225C1

ANGLE

- scraper, rear wing gang frame, left-hand (Disk Harrow coded J)

1шт.

6

121225C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrows coded A, B, E and H)

1шт.

6

121304C2

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrows coded C, D and J)

1шт.

6

121303C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrow coded F)

1шт.

6

129555C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrow coded G)

1шт.

7

129518C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded A)

1шт.

7

129560C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded B, C and D)

1шт.

7

121225C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded H)

1шт.

7

121304C2

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded J)

1шт.

7

121303C1

ANGLE

- scraper, rear main gang frame, center (Disk Harrow coded E)

1шт.

7

121304C2

ANGLE

- scraper, rear main gang frame, center (Disk Harrow coded F)

1шт.

7

129555C1

ANGLE

- scraper, rear main gang frame, center (Disk Harrow coded G)

1шт.

8

129555C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrows coded E and F)

1шт.

8

129518C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded G)

1шт.

8

129518C1

ANGLE

- scraper, rear wing gang frame, right-hand (Disk Harrow coded H and J)

1шт.

9

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (2 used per angle)

1шт.

10

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (2 used per angle)

1шт.
