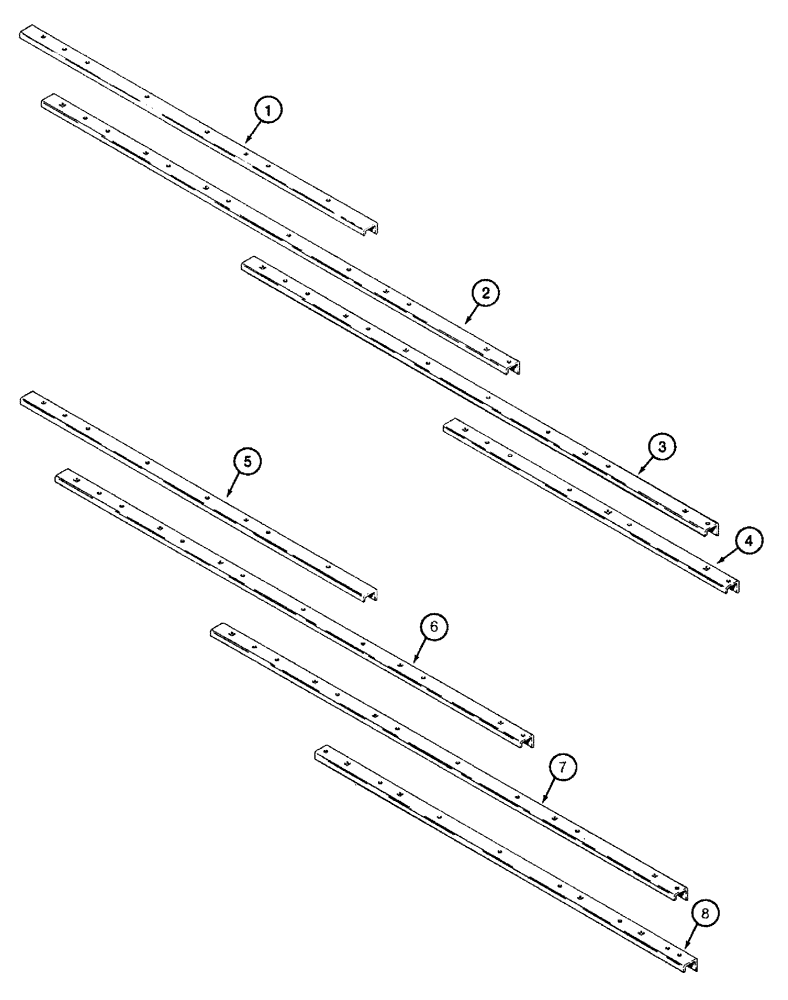

Запчасти Case IH 770 (09-09) - SCRAPER ANGLES, PRIOR TO P.I.N. 18101 (09) - CHASSIS/ATTACHMENTS

1

58847C1

ANGLE

- scraper, front wing gang frame, left-hand (Disk Harrows coded H and J)

1шт.

2

58842C1

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrows coded C, D and J)

1шт.

2

58847C1

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrows coded A, F, G and H)

1шт.

2

58855C1

ANGLE

- scraper, front main gang frame, left-hand (Disk Harrows coded B)

1шт.

3

58848C1

ANGLE

- scraper, front main gang frame, center (Disk Harrow coded G)

1шт.

3

112603C1

ANGLE

- scraper, front main gang frame, center (Disk Harrow coded F)

1шт.

3

58842C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrows coded E and J)

1шт.

3

58847C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded H)

1шт.

3

58848C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrows coded B and E)

1шт.

3

58852C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded A)

1шт.

3

58875C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded C and D)

1шт.

4

112606C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrow coded F)

1шт.

4

58842C1

ANGLE

- scraper, front main gang frame, right-hand (Disk Harrows coded G)

1шт.

4

58852C1

ANGLE

- scraper, front wing gang frame, right-hand (Disk Harrows coded H and J)

1шт.

5

58846C1

ANGLE

- scraper, rear wing gang frame, left-hand (Disk Harrows coded H and J)

1шт.

6

58841C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrow coded C, D and J)

1шт.

6

58846C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrow coded A and H)

1шт.

6

58849C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrow coded E and G)

1шт.

6

58851C1

ANGLE

- scraper, rear main gang frame, left-hand (Disk Harrow coded B)

1шт.

6

112604C1

CHANNEL

ANGLE - scraper, rear main gang frame, left-hand (Disk Harrow coded F)

1шт.

7

58849C1

ANGLE

- scraper, rear main gang frame, center (Disk Harrow coded G)

1шт.

7

112602C1

CHANNEL

ANGLE - scraper, rear main gang frame, center (Disk Harrow coded F)

1шт.

7

58840C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded C and D)

1шт.

7

58841C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded J)

1шт.

7

58846C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded H)

1шт.

7

58959C1

ANGLE

- scraper, rear main gang frame, right-hand (Disk Harrow coded B and E)

1шт.

7

112605C1

CHANNEL

ANGLE - scraper, rear main gang frame, right-hand (Disk Harrows coded A, F and G)

1шт.

8

112605C1

CHANNEL

ANGLE - scraper, rear wing gang frame, right-hand (Disk Harrow coded H and J)

1шт.

411-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 11/16 x 1-1/2 x 1/8 inch

1шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.
