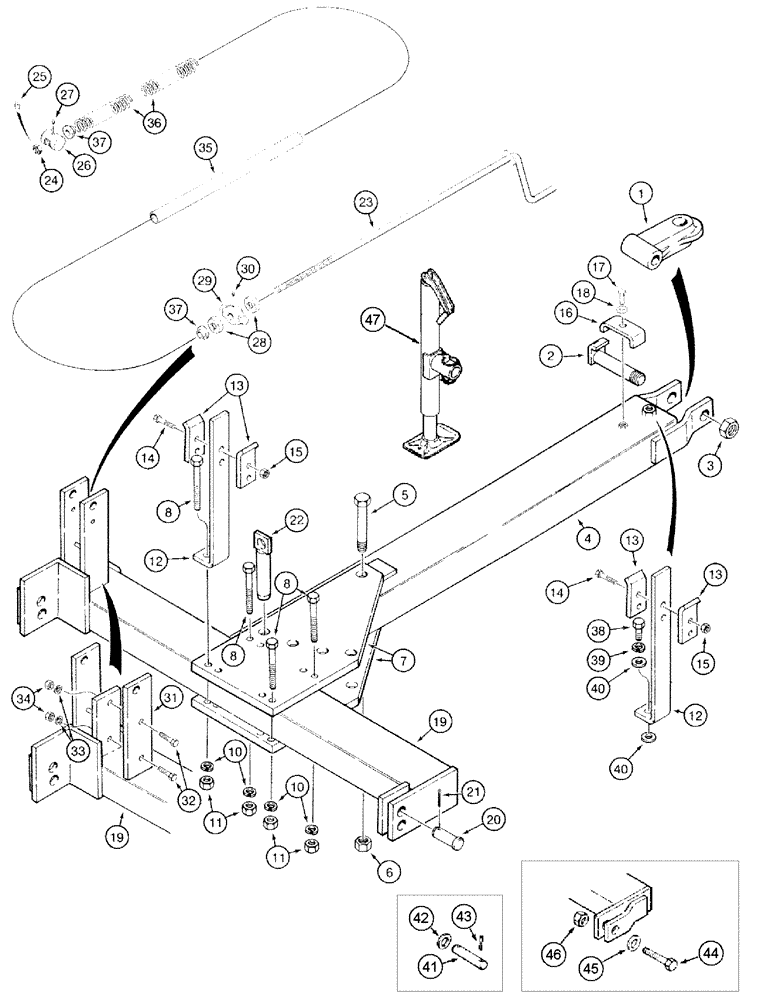

Запчасти Case IH 770 (09-08) - HITCH, DISK HARROWS CODED D THROUGH J (09) - CHASSIS/ATTACHMENTS

1

56892C5

TOW BAR

CLEVIS - hitch

1шт.

2

60141C1

PIN

- clevis to drawbar extension

1шт.

3

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex lock, 1-1/4 inch NC

1шт.

4

60137C4

TOW BAR

EXTENSION - drawbar

1шт.

5

326-24144

BOLT,Hex, 1-1/2" - 6 x 9", Gr 8

- hex, 1-1/2 NC x 9 inch

1шт.

6

131-482

LOCK NUT,1 1/2"-6

NUT - hex lock, 1-1/2 inch NC

1шт.

7

60136C1

PLATE

- hitch adjustment

2шт.

8

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch

8шт.

10

492-11088

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

8шт.

11

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

12

283538A1

SUPPORT

- hydraulic hose

1шт.

13

58644C1

HOLDER

- hydraulic hose

2шт.

14

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch

4шт.

15

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

16

129888C2

CLAMP

- hose

2шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

19

60128C1

HITCH ASSY, TRAILER

DRAWBAR - hitch, Serial Range: -JAG0780138

1шт.

Use this with REF 19 P/N 28535R1 Drawbar, the New Hitch Retaining Bolt P/N 252079A1, Washer P/N 496-81017, and Locknut P/N 28748R1 for Level Lift Tractor Hitch. See Service Bulletin NTE SB X48 96. The new parts also adapt to the 496 3900 Disk Harrows.

1шт.

19

60128C2

HITCH ASSY

DRAWBAR - hitch, Start Serial: JAG0780138

1шт.

20

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, Serial Range: -JAG0780138

2шт.

Improved Hitch Retaining Pin released. Change made at PIN JAG0780138.See Bulletin NTE SB X08 95.

1шт.

21

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2", Serial Range: -JAG0780138

2шт.

22

60150C2

PIN

- lock, hitch adjustment

1шт.

23

60144C1

CRANK

- hitch adjustment

1шт.

24

60149C2

LOCK NUT

- hex special, 1-1/4 inch NC

1шт.

25

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - square head cup point set, 5/16 NC x 1/2 inch

1шт.

26

60147C3

LINK

SWIVEL - adjustment crank

1шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch Only used on old style adjustment Crank

1шт.

28

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING - hitch crank

2шт.

29

60134C2

TRUNNION

- hitch crank

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

31

60130C2

BAR

- mounting, hitch crank, if used, Start Serial: JAG0780138

1шт.

32

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, If used, Start Serial: JAG0780138

2шт.

33

492-11075

LOCK WASHER,3/4"

WASHER, LOCK, , if used 3/4", Start Serial: JAG0780138

2шт.

34

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, if used, Start Serial: JAG0780138

2шт.

35

56975C1

PIPE

SPACER - hitch spring

1шт.

36

60148C1

SPRING

- hitch crank

2шт.

37

60516C1

BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L

RETAINER - hitch spring

2шт.

38

424-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 2

- hex, 3/4 NC x 1-1/4 inch

1шт.

39

492-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

40

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

41

1960707C2

PIN

- retaining, Serial Range: JAG0780138-JAG0780747

2шт.

42

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- 1-9/32 ID x 2 OD x 1/16 inch, Serial Range: JAG0780138-JAG0780747

4шт.

43

438-32440

PIN,3/8" x 2 1/2", Coiled

ROLL - 3/8 x 2, Serial Range: JAG0780138-JAG0780747

4шт.

44

252079A1

BOLT

- 1-1/4 NC x 6 inch, hardened, Start Serial: JAG0780747

2шт.

45

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

- 1-3/8 x 2-1/2 x 1/8 inch, Start Serial: JAG0780747

4шт.

46

28748R1

LOCK NUT,1 1/4"-7, G5

NUT- lock, 1/1/4 inch NC, Start Serial: JAG0780747

2шт.

47

121558A1

JACK

ASSY.

1шт.
