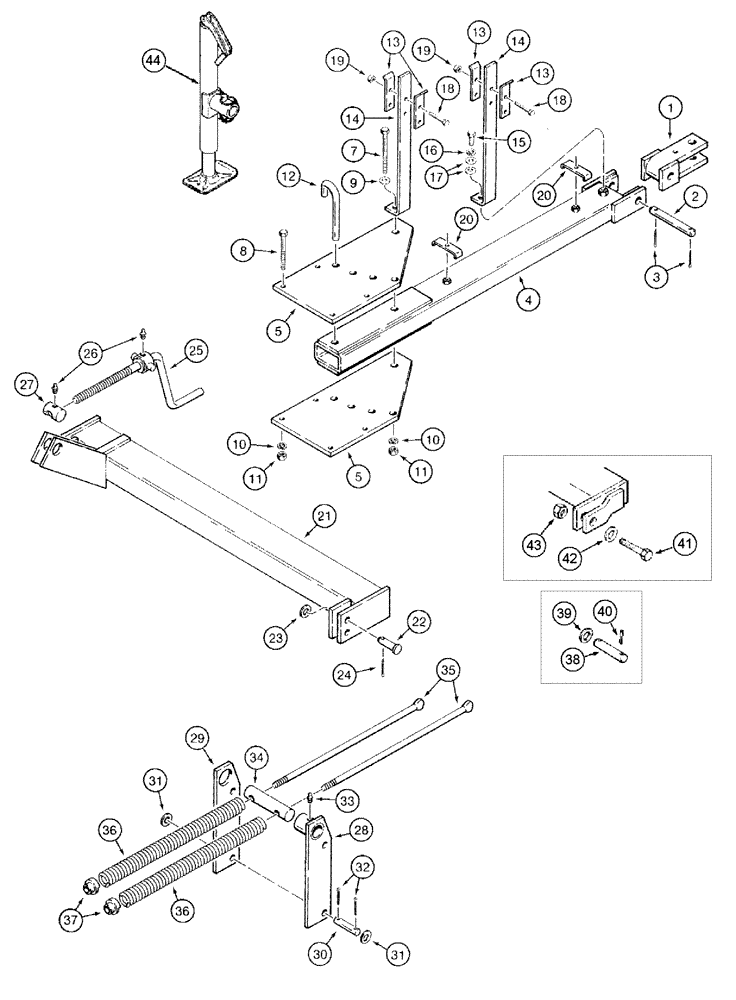

Запчасти Case IH 770 (09-07) - HITCH, DISK HARROWS CODED A, B AND C (09) - CHASSIS/ATTACHMENTS

1

284489A1

CLEVIS

- hitch (Replaces 56976C3)

1шт.

2

58926C1

PIN,31.75mm OD x 198.12mm L

-, Serial Range: clevis-extension

1шт.

3

432-2440

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

4

58879C2

ASSEMBLY

EXTENSION - hitch clevis

1шт.

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex, 1 NC x 7 inch, not shown

1шт.

231-14416

LOCK NUT,1"-8, GB

NUT - hex lock, 1 inch NC, not shown

1шт.

5

58928C1

PLATE

- hitch mounting, adjustable

2шт.

7

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

1шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

3шт.

9

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

10

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

11

231-42112

NUT,3/4"-10, GB

NUT - hex, lock, 3/4 inch NC

4шт.

12

58927C1

HITCH PIN,25.4mm OD

PIN - hitch adjustment lock

1шт.

13

58644C1

HOLDER

- hydraulic hose

4шт.

14

283538A1

SUPPORT

- hydraulic hose (Replaces 58643C1)

2шт.

15

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch

1шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

17

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

18

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

19

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

20

129888C2

CLAMP

- hose, at hitch extension

2шт.

21

58868C1

BAR

DRAWBAR hitch

1шт.

22

810751C1

PIN

- clevis, 1 x 3-1/2 inch

2шт.

23

495-81077

WASHER,1.03" ID x 2" OD x 0.12" Thk

- flat, 1-1/32 x 2 x 1/8 inch

2шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

25

468531R12

SCREW

CRANK - hitch adjustment

1шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

27

468533R1

LINK

SWIVEL - crank

1шт.

28

540220R1

ARM

- hitch adjustment, right-hand

1шт.

29

540221R1

BAR

ARM - hitch adjustment, left-hand

1шт.

30

58924C1

PIN,25.4mm OD x 107.95mm L

- hitch arm

1шт.

31

495-81077

WASHER,1.03" ID x 2" OD x 0.12" Thk

- flat, 1-1/32 x 2 x 1/8 inch

2шт.

32

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

34

489127R1

PIN,50.8mm OD x 208.28mm L

RETAINER - spring guide

1шт.

35

468535R2

GUIDE

- spring

2шт.

425-1416

JAM NUT,Jam, 1"-8, G5

- hex jam, 1 inch NC, not shown

4шт.

495-81078

WASHER,1 1/32" x 2" x .179"

- flat, 1-1/32 x 2 x 3/64 inch, not shown

2шт.

36

481285R1

VALVE SPRING

SPRING - hitch adjustment

2шт.

37

468537R1

SPRING SEAT

RETAINER - hitch spring

2шт.

38

1960707C2

PIN

- retainer, Serial Range: JAG0780747-JAG0780138

2шт.

39

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2-1/2 x 1/16 inch, Serial Range: JAG0780747-JAG0780138

4шт.

40

438-32440

PIN,3/8" x 2 1/2", Coiled

- cotter, 3/8 x 2, Serial Range: JAG0780747-JAG0780138

4шт.

41

252079A1

BOLT

- 1-1/4 x 6 inch, hardened, Start Serial: JAG0780747

2шт.

42

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

- flat, 1-3/8 x 2-1/2 x 1/8, Start Serial: JAG0780747

4шт.

43

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - lock, 1-1/4, Start Serial: JAG0780747

2шт.

44

121558A1

JACK

JASK ASSY.

1шт.
