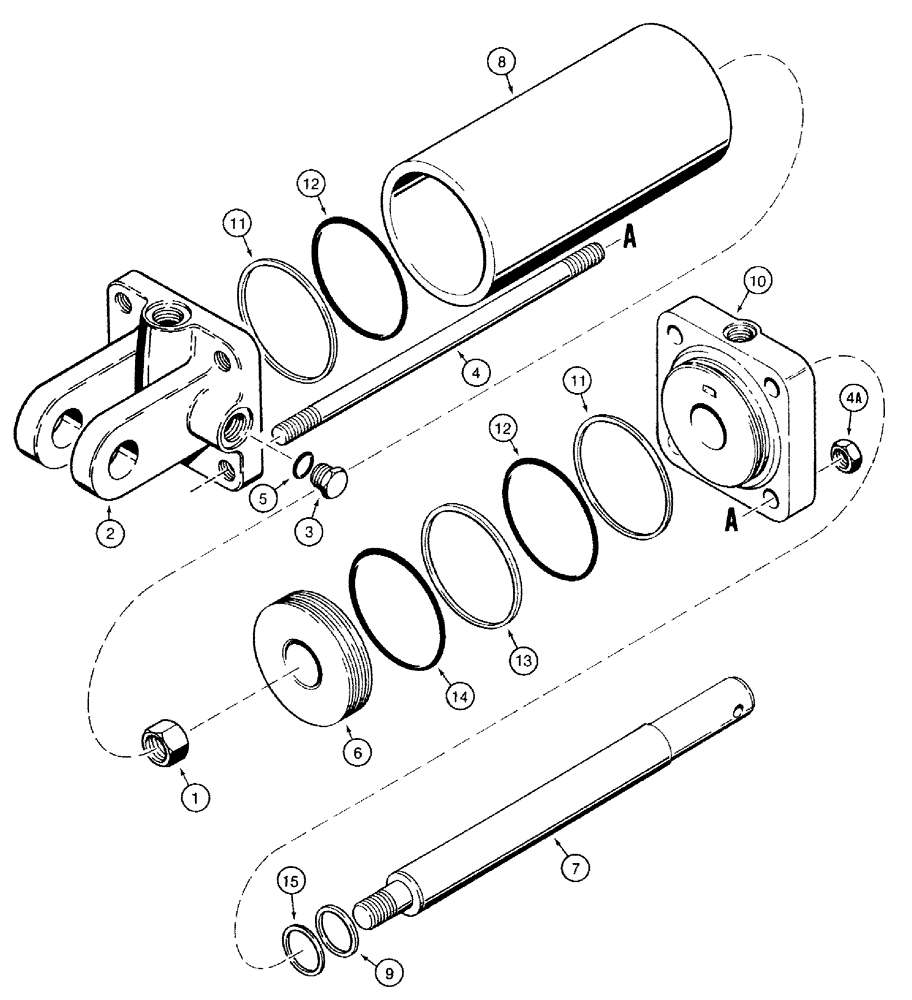

Запчасти Case IH 770 (08-37) - WING FOLDING CYLINDER - 1282325C91, TIE ROD TYPE (08) - HYDRAULICS

1282325C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing folding, Inc. REF 1 - 15

4шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

1282334C1

HEAD

- cylinder, closed end

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

ROD - cylinder retaining

4шт.

4a

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

6

85179C1

PISTON

- cylinder

1шт.

7

1285822C1

ROD

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

10

386764A1

CYLINDER BLOCK

GLAND - cylinder, rod end

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch, tube to gland and head

2шт.

13

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch, piston

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

79978C2

SEAL KIT

KIT - seal and O-ring, Inc. REF 5, 9, 11 - 15

1шт.
