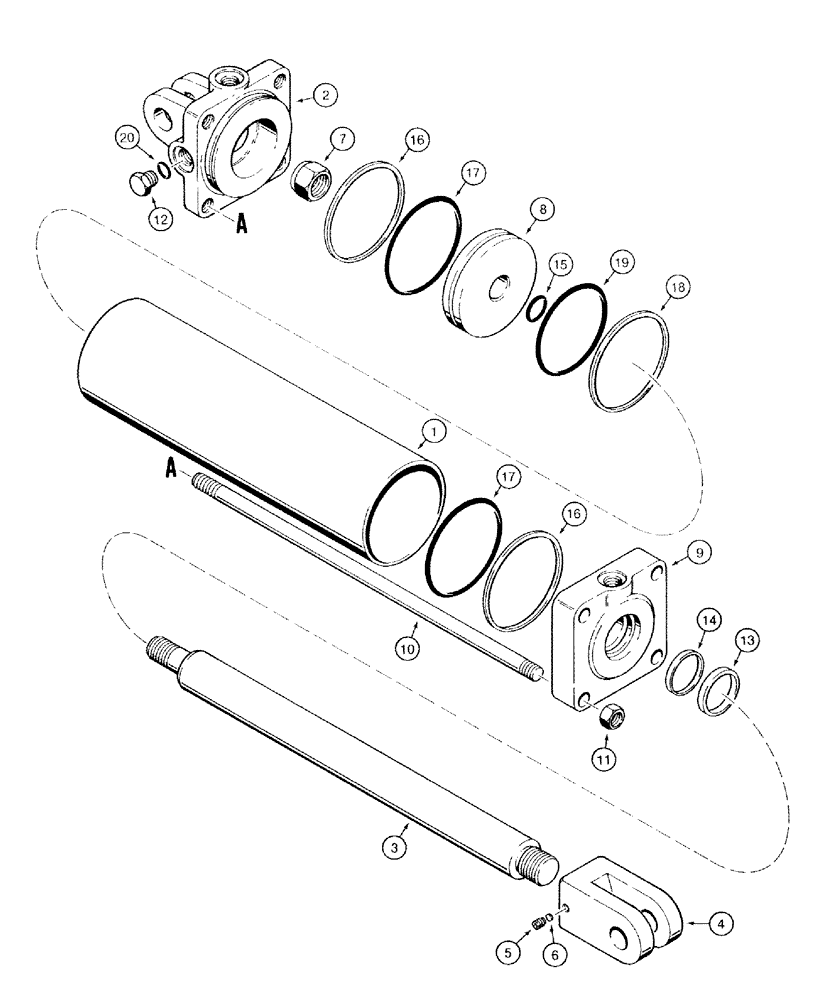

Запчасти Case IH 770 (08-34) - TRANSPORT LIFT CYLINDER - 1286452C91, TIE BOLT TYPE, 5 INCH ID (08) - HYDRAULICS

1286452C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order 1286452C91 cylinder assembly)

1шт.

2

1286381C1

HEAD

- cylinder, closed end

1шт.

3

92872C1

ROD

- piston

1шт.

4

145240C1

CLEVIS,1 -1/2" - 12

- piston rod (Order 1286452C91 cylinder assembly)

1шт.

5

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

7

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, grade 8

1шт.

8

1286382C2

PISTON

- cylinder

1шт.

9

92857C1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

10

92873C1

THREADED ROD,3/4" - 10 x 21.812"

ROD - cylinder retaining

4шт.

11

220081

NUT

- hex, 3/4 inch NC

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

85126C1

SEAL KIT

- cylinder repair

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

17

NSS

NOT SOLD SEPARAT

O-RING - head and gland

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
