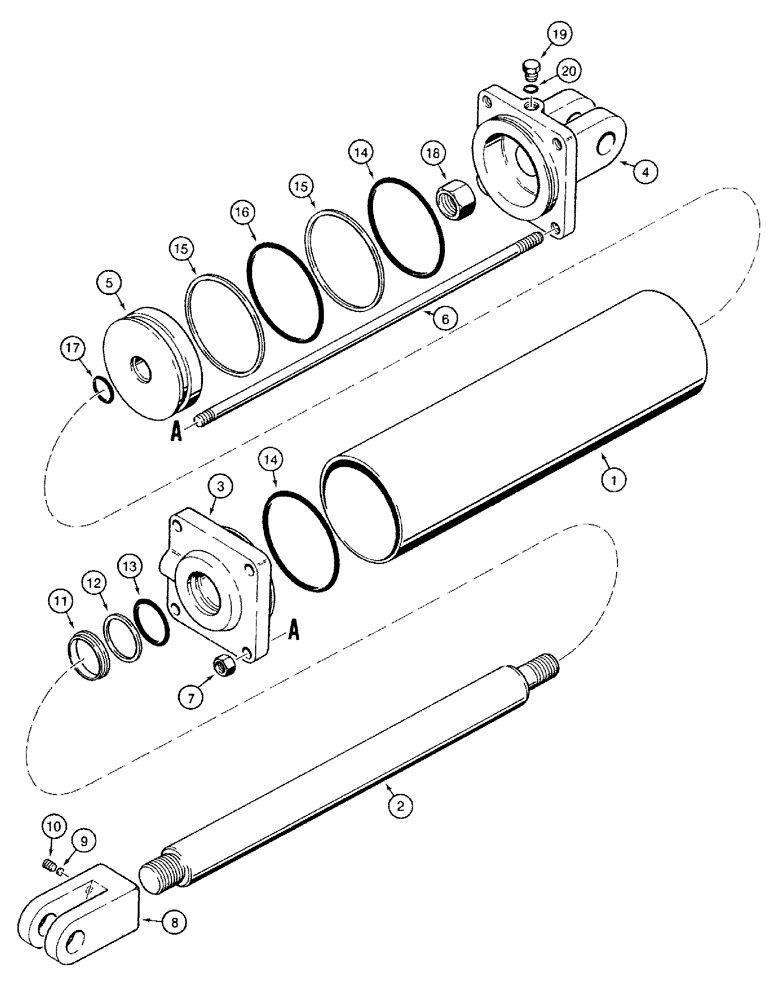

Запчасти Case IH 770 (08-33) - TRANSPORT LIFT CYLINDER - 145436C92, TIE BOLT TYPE, 5 INCH ID (08) - HYDRAULICS

145436C92

CYLINDER

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, Inc. REF 1 -20

1шт.

No longer available, for service order 1286452C91 cylinder assembly, Figure 08-16, also order, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

78866C1

ROD

- piston

1шт.

3

78867C1

END

GLAND - cylinder

1шт.

4

78865C1

END

CAP - end, cylinder

1шт.

5

76701C1

PISTON

- cylinder

1шт.

6

78048C1

ROD,5/8" - 18 x 21 5/8"

BOLT - tie, cylinder

4шт.

7

425-1110

NUT,5/8"-18, G5

4шт.

8

76704C1

FORK

CLEVIS - rod end, Inc. REF 9, 10

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup, rod O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - rod

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup, piston O-ring

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, Serial Range: rod-piston

1шт.

18

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, Grade 8

1шт.

19

76349

PLUG,9/16" - 18 ORB

Incl. Ref 20 Hex Hd, 9/16"-18 ORB

1шт.

76980C1

PACKAGE

KIT - cylinder repair, Inc. REF 11 - 17

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
