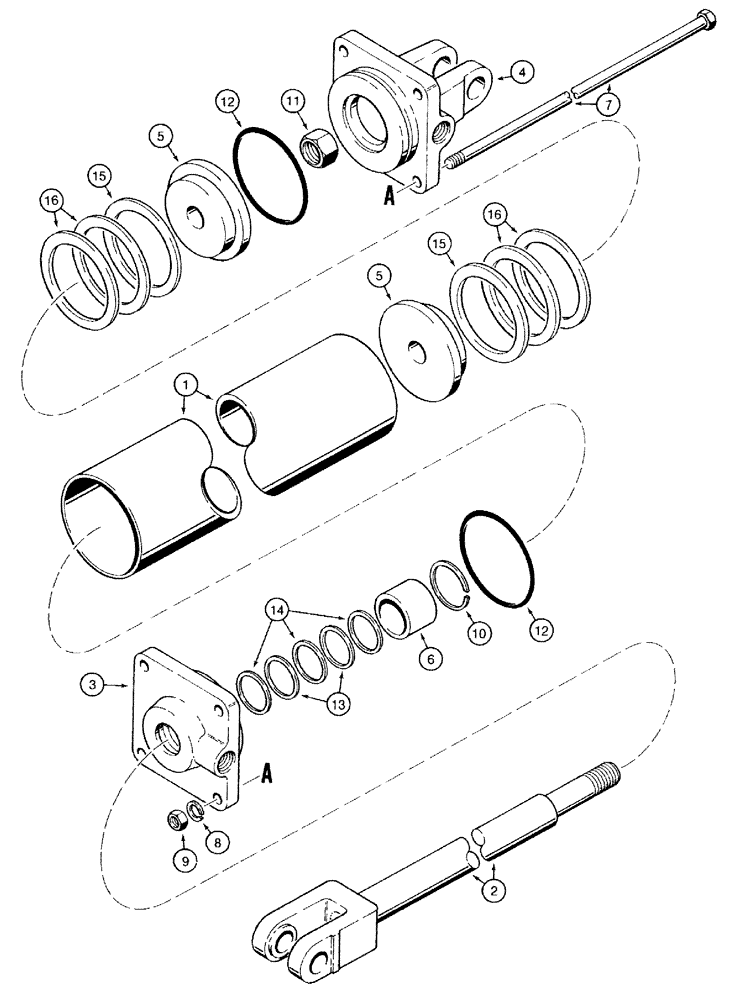

Запчасти Case IH 770 (08-32) - TRANSPORT LIFT CYLINDER - 959947R91, TIE BOLT TYPE, 5 INCH ID (08) - HYDRAULICS

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, Inc. REF 1 -16

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

959937R91

ROD

- piston

1шт.

3

959939R1

HEAD

GLAND - cylinder

1шт.

4

959958R1

HEAD (CYLINDER)

CAP - end, cylinder

1шт.

5

959933R1

HEAD

PISTON - cylinder

2шт.

6

959929R1

BEARING LINER,1.757" ID x 2.5" OD

- piston rod

1шт.

7

959930R2

BOLT,Hex, 5/8" - 11 x 24mm

- tie, cylinder

4шт.

8

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

34039

SNAP RING,2.50", Int, #250

Ring, Snap, , brg 2.50", Int, #250

1шт.

11

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, Grade 8

1шт.

12

238-5425

O-RING,0.275" Thk x 4.475" ID, -425, Cl 5, 75 Duro

- end cap and gland

2шт.

13

959926R1

SEAL

- dirt, piston rod

2шт.

14

959927R1

OIL SEAL

- oil, piston rod

3шт.

15

959925R1

SEAL

- piston, outer

2шт.

16

959924R1

SEAL

SEAL - piston, inner

4шт.

964134R91

SEAL KIT

- seal repair, Inc. REF 12 - 16

1шт.

No Longer Available, Order Components

1шт.
