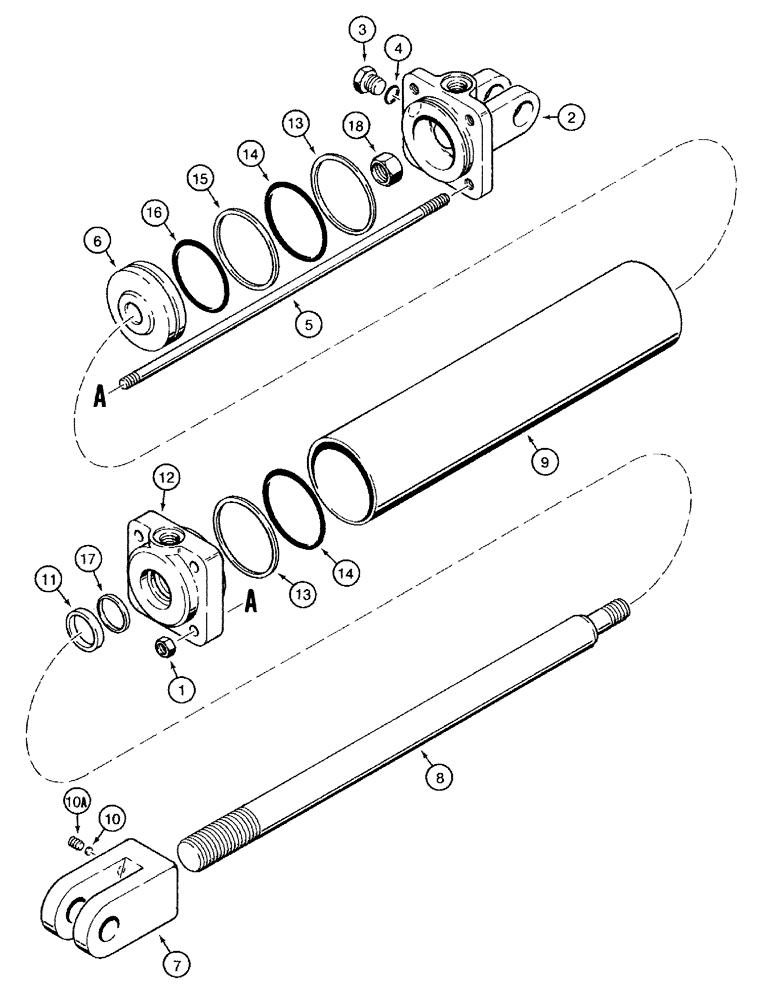

Запчасти Case IH 770 (08-30) - TRANSPORT LIFT CYLINDER - 1272149C91, TIE BOLT TYPE, 3-1/2 INCH ID (08) - HYDRAULICS

1272149C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 18

2шт.

No longer available, for service order 1272149C92 cylinder assembly, Figure 08-30

1шт.

1272149C92R

REMAN-HYD CYLINDER

770 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 1272149C91

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 18

2шт.

1272149C92R

REMAN-HYD CYLINDER

770 CASE IH DISK HARROW, ASSEMBLY, transport lift

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

2

1282334C1

HEAD

CAP - end, cylinder

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

5

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT - tie, cylinder retaining

4шт.

6

85179C1

PISTON

- cylinder

1шт.

7

145240C1

CLEVIS,1 -1/2" - 12

- rod end

1шт.

8

1282397C1

PISTON ROD

ROD - piston

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10a

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

386764A1

CYLINDER BLOCK

GLAND - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup, end cap and gland O-rings

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

18

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

79978C2

SEAL KIT

KIT - cylinder repair, Inc. REF 4, 11, 13 - 17

1шт.
