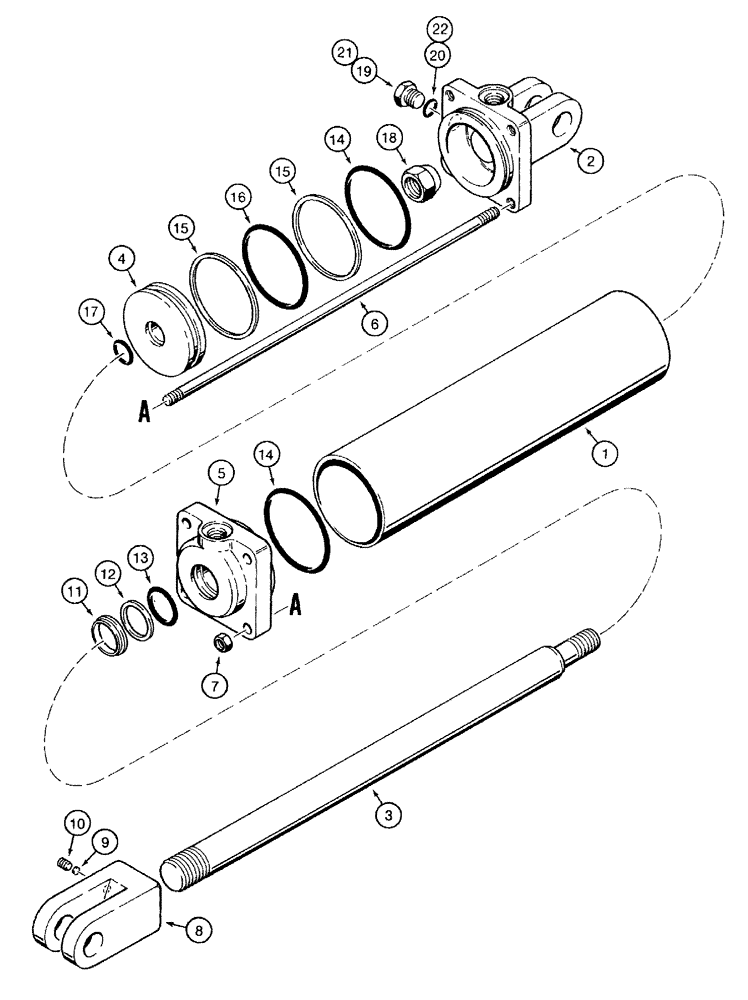

Запчасти Case IH 770 (08-27) - TRANSPORT LIFT CYLINDER - 145435C91, TIE BOLT TYPE, 4 INCH ID (08) - HYDRAULICS

145435C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

79146C1

END

CAP - end, cylinder, 9/16-18 inch ports

1шт.

No longer available, for service order (1) 92479C1 end cap, (1) 1252130C1 adapter, (1) 9410359 plug and (2) 237-6008 O-rings

1шт.

2

92479C1

END

CAP - end, cylinder, 3/4-16 inch ports

1шт.

3

79147C1

ROD

- piston

1шт.

4

79148C1

PISTON

- cylinder

1шт.

5

79149C1

END

GLAND - cylinder, 9/16-18 inch port

1шт.

No longer available, for service order (1) 92479C1 end cap, (1) 1252130C1 adapter, (1) 9410359 plug and (2) 237-6008 O-rings

1шт.

5

92475C1

END

GLAND - cylinder, 3/4-16 inch port

1шт.

6

77752C1

ROD,1/2" - 13 x 20.125"

BOLT - tie, cylinder

4шт.

7

425-1110

NUT,5/8"-18, G5

4шт.

8

76704C1

FORK

CLEVIS - rod end, Inc. REF 9

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup, rod O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - rod

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup, piston O-ring

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, Serial Range: rod-piston

1шт.

18

232-46116

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

19

76349

PLUG,9/16" - 18 ORB

Use with 79146C1 end cap Hex Hd, 9/16"-18 ORB

1шт.

21

214389

PLUG,3/4" - 16 ORB

Used with 92479C1 end cap Hex Hd, 3/4"-16 ORB

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 92479C1 end cap

1шт.

79151C1

PACKAGE

KIT - cylinder repair, Inc. REF 11 -17

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
