Запчасти Case IH 770 (08-23) - TRANSPORT LIFT CYLINDER - 108681C91, WELDED TYPE, 4 INCH ID (08) - HYDRAULICS

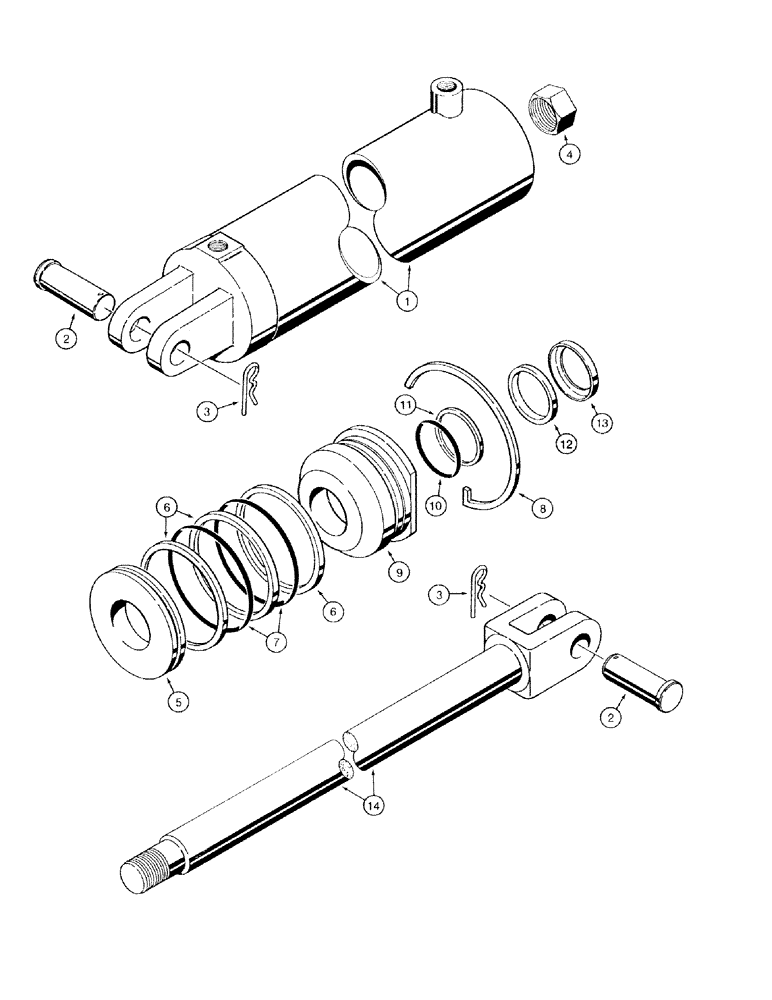

Схема запчастей Case IH 770 - (08-23) - TRANSPORT LIFT CYLINDER - 108681C91, WELDED TYPE, 4 INCH ID (08) - HYDRAULICS
14
7
10
11
9
6
3
12
2
3
13
5
2
6
1
4
8

Артикул

Название

Примечание

Количество

108681C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 14

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

548015R1

HYD TUBE

TUBE - cylinder

1шт.

2

60909C1

PIN

- cylinder pivot

2шт.

3

1970957C1

SPRING

PIN - hair, cylinder pin retaining

2шт.

4

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

381107R1

BACK-UP RING

- backup, piston and gland O-ring

3шт.

7

238-6342

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-5/8 x 4 x 3/16 inch, piston and gland

2шт.

8

548025R1

RETAINER

RING - locking, gland

1шт.

9

108684C1

HEAD

GLAND - cylinder

1шт.

10

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

Rod -327, 90 Duro, 1.725" ID x .210" Thk

1шт.

11

387362R2

BACK-UP RING

- backup, rod O-ring

1шт.

12

389390R1

WIPER SEAL

WIPER - piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER - wiper

1шт.

14

108682C1

ROD

- piston

1шт.
