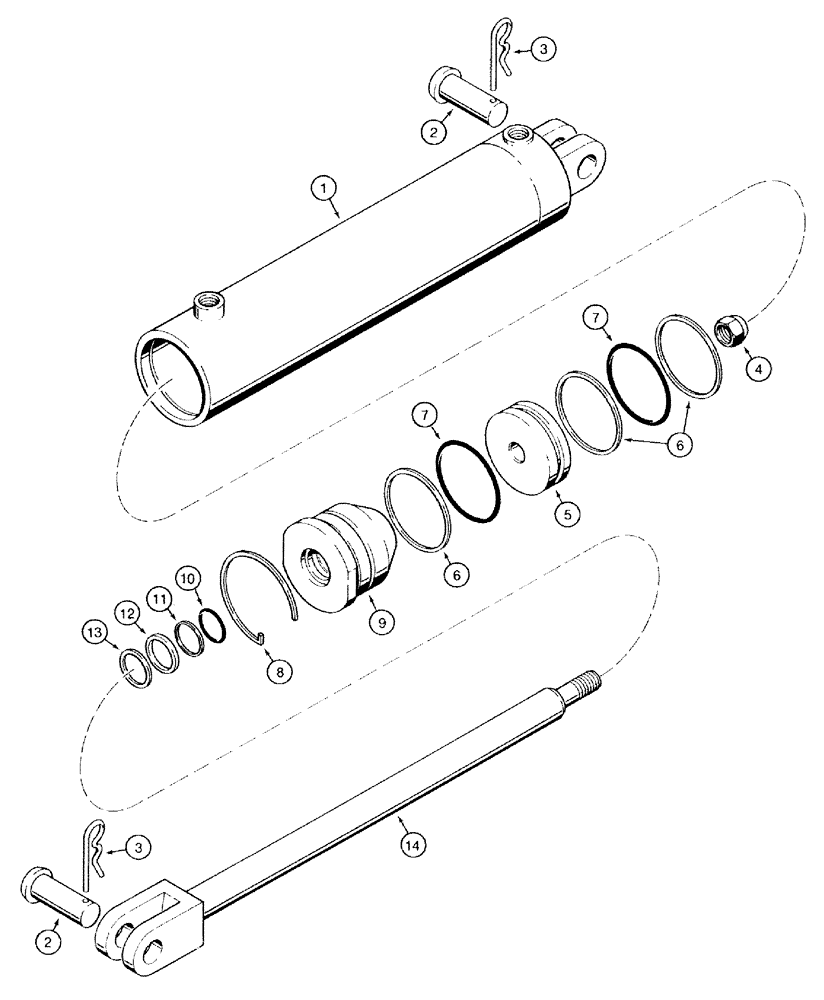

Запчасти Case IH 770 (08-21) - TRANSPORT LIFT CYLINDER - 548004R92, WELDED TYPE, 4 INCH ID (08) - HYDRAULICS

548004R92

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 14

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

548015R1

HYD TUBE

TUBE - cylinder

1шт.

2

60909C1

PIN

- cylinder pivot

2шт.

3

1970957C1

SPRING

PIN - hair, cylinder pin retaining

2шт.

4

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

381107R1

BACK-UP RING

- backup, piston and gland O-ring

3шт.

7

238-6342

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-5/8 x 4 x 3/16 inch, piston and gland

2шт.

8

548025R1

RETAINER

RING - locking, gland

1шт.

9

548022R1

HEAD

GLAND - cylinder

1шт.

10

238-6325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 6, 90 Duro

- 1-1/2 x 1-7/8 x 3/16 inch, rod

1шт.

11

403622R1

BACK-UP RING

RING - backup, rod O-ring

1шт.

12

383770R1

WASHER

WIPER - piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER - wiper

1шт.

14

548020R1

ROD

- piston

1шт.
