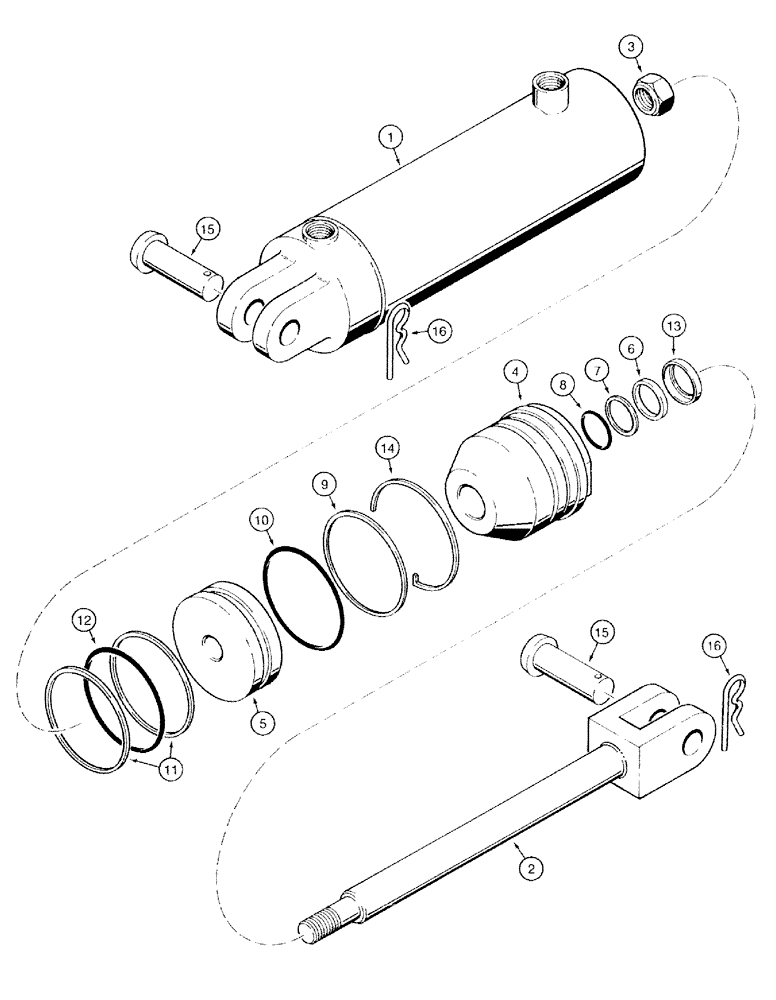

Запчасти Case IH 770 (08-20) - TRANSPORT LIFT CYLINDER - 64412C91 (08) - HYDRAULICS

64412C91

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, Inc. REF 1 -16

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

548010R1

ROD

- piston

1шт.

3

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

4

548012R1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, rod O-ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - wiper

1шт.

14

NSS

NOT SOLD SEPARAT

RING - locking, gland

1шт.

15

810751C1

PIN

- cylinder pivot

2шт.

16

1970957C1

SPRING

PIN - hair, cylinder pin retaining

2шт.

548023R92

SEAL KIT

KIT - cylinder repair, Inc. REF 6 - 14

1шт.

No longer available, for service order components

1шт.
