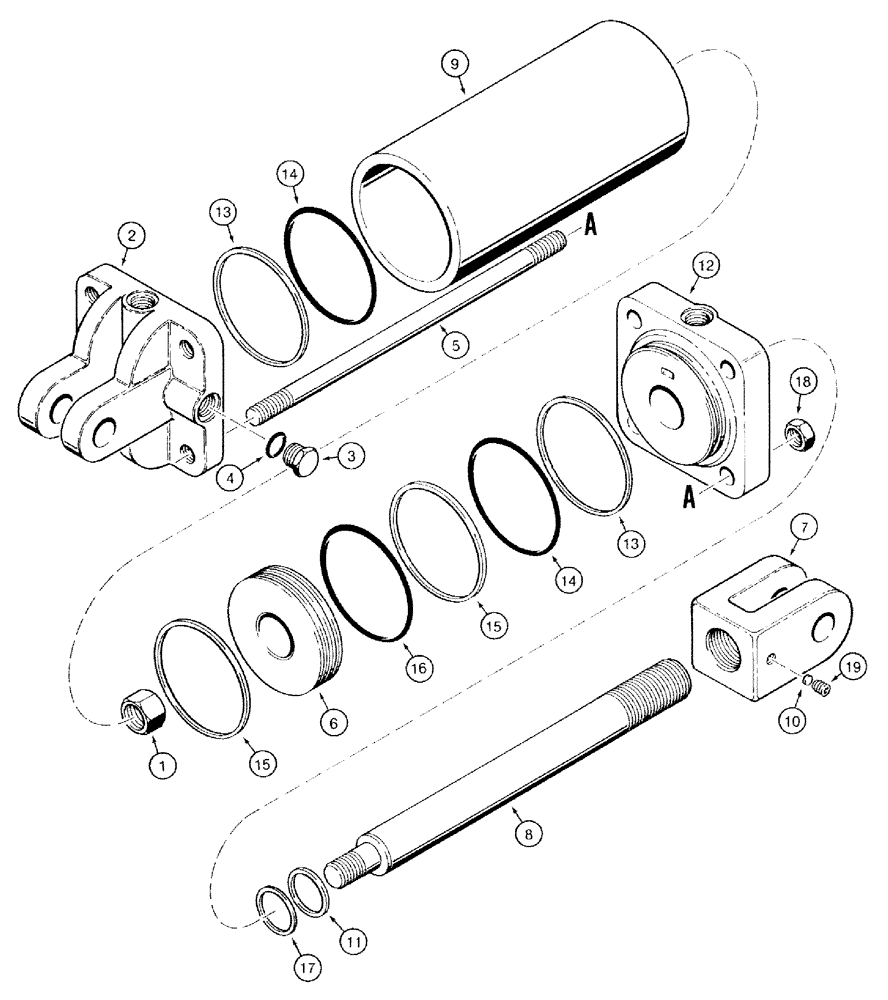

Запчасти Case IH 770 (08-18) - TRANSPORT LIFT CYLINDER - 1272148C91 (08) - HYDRAULICS

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, Inc. REF 1 - 19

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

1272919C1

CYLINDER HEAD

CAP - end, cylinder

1шт.

3

214389

PLUG,3/4" - 16 ORB

- hex, 1/2-20 inch, O-ring boss

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

5

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

6

149930C2

PISTON

- cylinder

1шт.

7

1267057C1

CLEVIS,3/8" - 16

- rod end

1шт.

8

1267056C1

ROD

- piston

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

- nylon, clevis

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

386762A1

HEAD

GLAND - cylinder (Replaces 1272920C1)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-rings

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

18

425-1010

NUT,5/8"-11, G5

4шт.

19

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point

1шт.

80117C2

SEAL KIT

- cylinder repair, Inc. REF 4, 11, 13 -17. Kit also includes 2 wear rings not used in this application

1шт.
