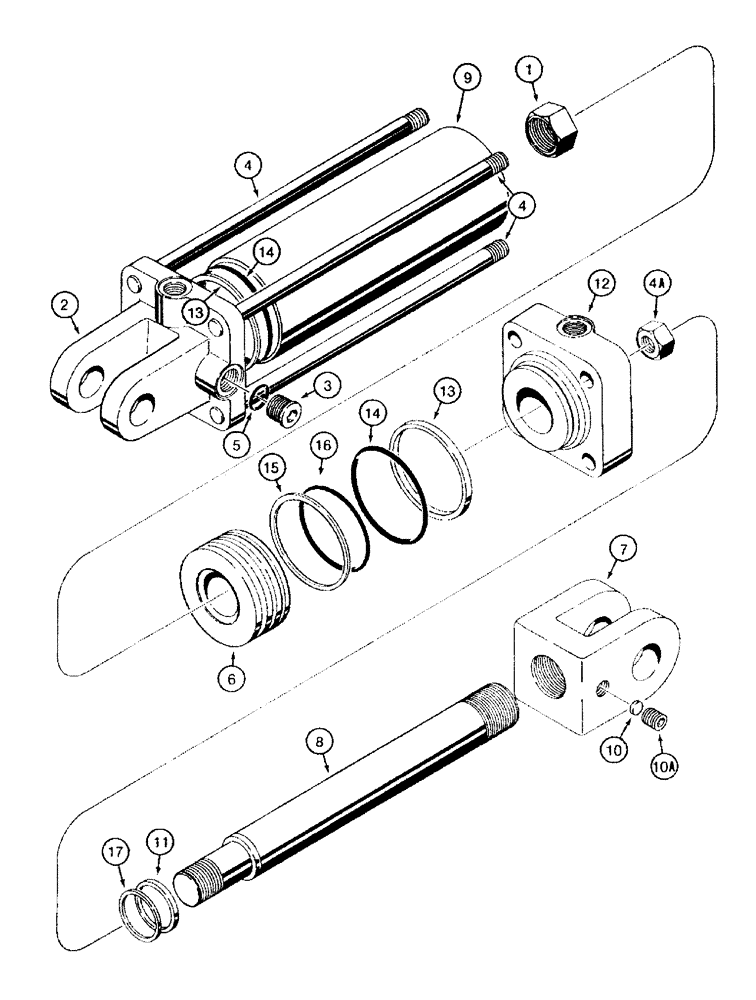

Запчасти Case IH 770 (08-16) - TRANSPORT LIFT CYLINDER - 1272147C91 (08) - HYDRAULICS

1272147C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch, Inc. REF 1 - 17

1шт.

No longer available, for service order 1272147C92 cylinder assembly

1шт.

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch, Inc. REF 1 - 17, Replaces 1272147C91

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

1272825C1

HEAD

- cylinder, closed end

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Used with 1272147C92 cylinder assembly Hex Soc, 3/4"-16 ORB

1шт.

4

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

4a

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

6

145422C2

PISTON

- cylinder, (Used with 1272147C91 Cylinder)

1шт.

6

85179C1

PISTON

- cylinder, (Used with 1272147C92 Cylinder)

1шт.

7

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

8

145231C1

PISTON ROD

ROD - piston

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

10

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

10a

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

1272826C1

HEAD

GLAND - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-rings

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

84919C2

GASKET KIT

KIT - seal and O-ring, Inc. REF 5, 11, 13 - 17

1шт.
