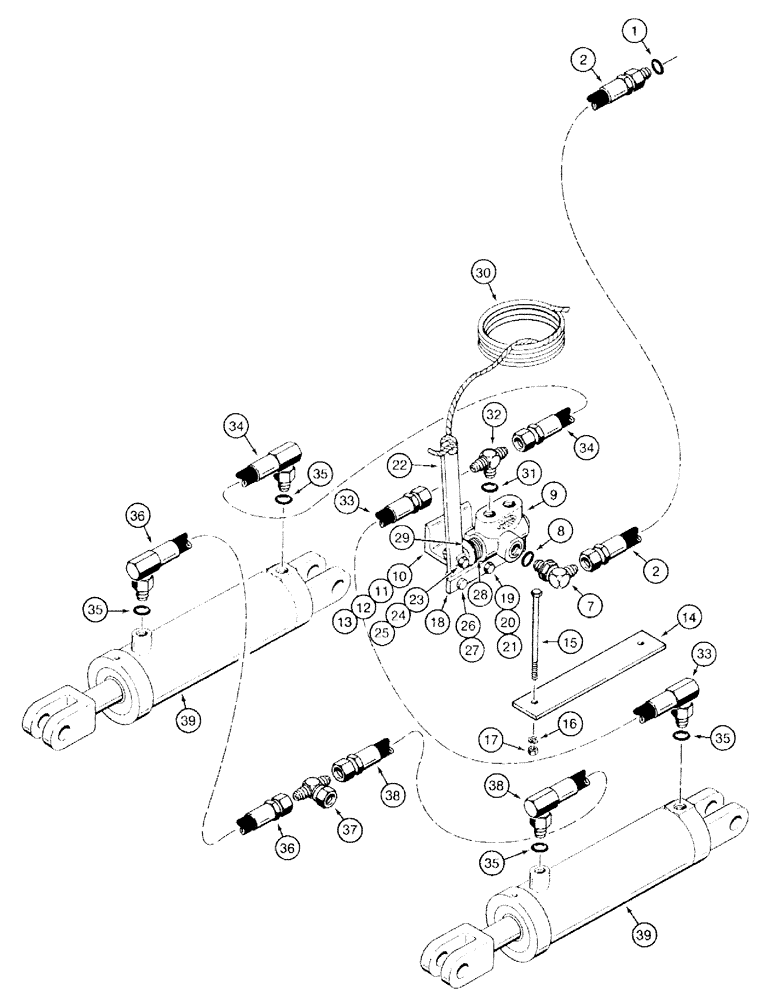

Запчасти Case IH 770 (08-11) - DUAL CYL. TRANSPORT LIFT HYDR. CIRCUIT, 1/2 INCH ID HOSES, W/ DIVERTER VALVE (08) - HYDRAULICS

1

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

2

100970C1

HYDRAULIC HOSE,0.50" ID x 200.00", SAE 100R1

- 5588 mm (220 inch) long, Tractor to diverter valve

1шт.

3

470976R1

CHANNEL

CLAMP - hose, not shown

1шт.

4

393068R1

HOSE

SHIELD - hose, not shown

1шт.

5

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

- hex, 1/2 NC x 2-1/2 inch, not shown

1шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, hardened, 17/32 x 1-1/16 x 5/64 inch, Not shown

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread, Inc. REF 8

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

478887R91

VALVE

ASSEMBLY - diverter

1шт.

See Figure 08-14

1шт.

10

62010C1

ANGLE

PLATE - mounting, diverter valve

1шт.

11

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

9628503

NUT,3/8"-16, G5

2шт.

14

60268C1

BAR

- clamping, valve

1шт.

15

413-6112

BOLT,Hex, 3/8" - 16 x 7", Gr 5

- hex, 3/8 NC x 7 inch

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

9628503

NUT,3/8"-16, G5

2шт.

18

57068C1

BAR

- pivot, valve lever

1шт.

19

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

57069C1

BAR

LEVER - control, diverter valve

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

24

495-21038

WASHER,5/16"

(flat, 13/32 x 7/8 x 1/16") 5/16"

1шт.

25

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

26

439-1416

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

27

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

28

369462R1

SPRING

- lever

1шт.

29

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

30

REF

INSTRUCTION

ROPE - 1/4 inch x 25 ft, purchase locally

1шт.

31

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 7/8-14 inch thread

1шт.

33

129590C1

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long, tee to right-hand cylinder, closed end

1шт.

34

653317R91

HOSE ASSY.

HOSE - 660 mm (26 inch) long, tee to left-hand cylinder, closed end

1шт.

35

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

36

129590C1

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long, tee to left-hand cylinder, rod end

1шт.

37

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- 7/8-14 inch thread, swivel

1шт.

38

653320R91

HOSE

- 1676 mm (66 inch) long, tee to right-hand cylinder, rod end

1шт.

39

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

2шт.

See Figures 08-30 and 08-31 for correct assembly and components

1шт.
