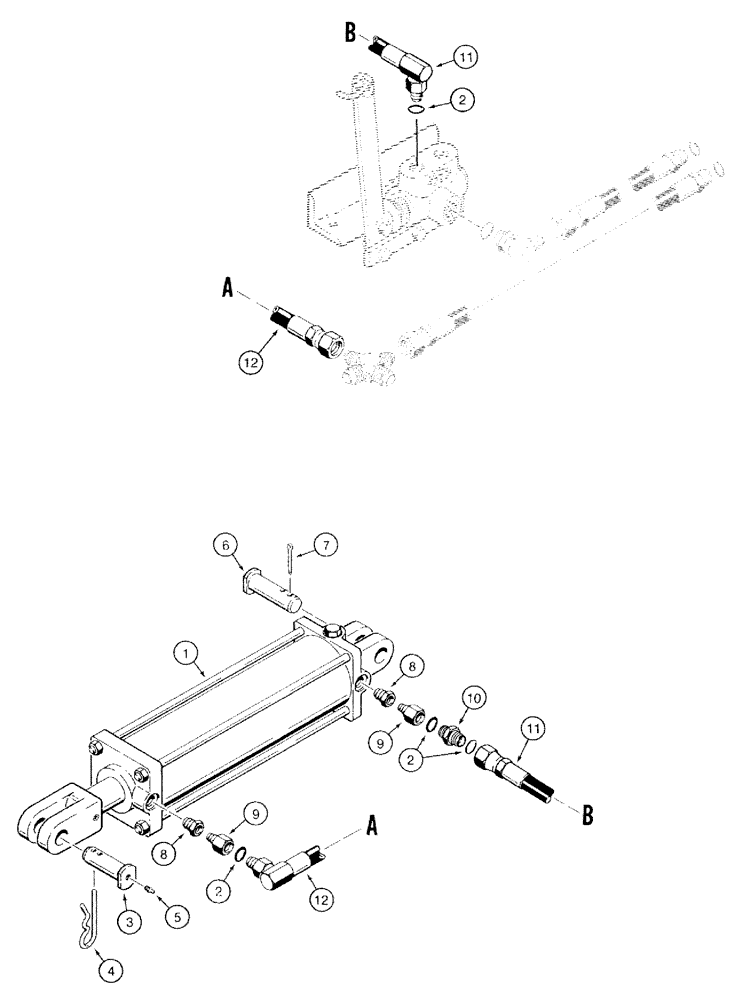

Запчасти Case IH 770 (08-10) - TRANSP. LIFT HYDR. CIRCUIT, 1/2 INCH ID HOSES, W/DIVERTER VALVE, DISK HARROWS CODE H & J (08) - HYDRAULICS

1

108681C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 08-23 for service parts

1шт.

1

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 08-32 for service parts

1шт.

1

145436C92

CYLINDER

ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-33 for service parts

1шт.

No longer available, for service order 1286452C91 cylinder assembly, Figure 08-16, also order, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

1

1286452C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - 5 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-34 for service parts

1шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

3

951714R1

PIN

- mounting, cylinder, rod end

1шт.

4

1978738C1

HAIR PIN COTTER

3/16"

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

6

959945R93

PIN

- mounting, cylinder, closed end

1шт.

7

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

8

23174R1

BUSHING

REDUCER - 3/4 x 1/2 inch PT, used with 5 inch ID cylinders only

2шт.

9

461183R1

ADAPTER,1/2" - 14 ORB x 7/8" - 14 ORB

ADAPTER - straight, special, used with 5 inch ID cylinders only

2шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, special, used at hose to closed end of cylinder only

1шт.

11

653317R91

HOSE ASSY.

HOSE - 711 mm (28 inch) long, cylinder closed end to diverter valve

1шт.

12

653320R91

HOSE

- 1676 mm (66 inch) long, cylinder rod, Serial Range: end-cross

1шт.
