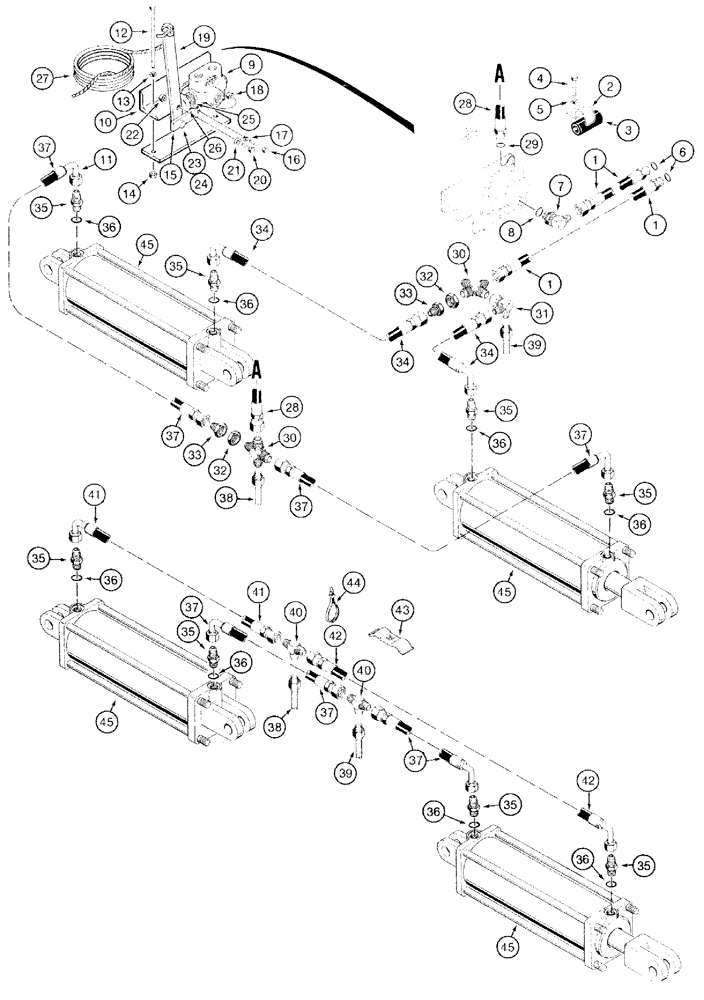

Запчасти Case IH 770 (08-09) - WING LIFT HYD. CIRCUIT, 1/2 INCH ID HOSES, W/DIVERTER VALVE, DISK HARROWS CODED H & J (08) - HYDRAULICS

1

100970C1

HYDRAULIC HOSE,0.50" ID x 200.00", SAE 100R1

- 5588 MM (220 inch) long, Supply and return

2шт.

2

129886C2

CLAMP

- hose

7шт.

3

393068R1

HOSE

SHIELD - hose, 1-1/2 inch long

7шт.

4

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

7шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

7шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 deg adj, 7/8-14 inch flare x O-ring boss, Inc. REF 8

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

478887R91

VALVE

ASSEMBLY - diverter, See Figure 8-30

1шт.

10

60267C1

ANGLE

BRACKET - mounting, diverter valve

1шт.

11

60268C1

BAR

- mounting, diverter valve

1шт.

12

413-6112

BOLT,Hex, 3/8" - 16 x 7", Gr 5

- hex, 3/8 NC x 7 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

9628503

NUT,3/8"-16, G5

2шт.

15

57068C1

BAR

- pivot, valve lever

1шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

19

57069C1

BAR

LEVER - control, diverter valve

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

21

495-21038

WASHER,5/16"

(flat, 13/32 x 7/8 x 1/16") 5/16"

1шт.

22

1306680C1

FLANGE NUT

NUT - hex, self-locking, 3/8 inch NC

1шт.

23

439-1416

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

24

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

25

369462R1

SPRING

- lever

1шт.

26

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

27

REF

INSTRUCTION

ROPE - 1/4 x 300 inch, valve control lever, purchase locally

1шт.

28

653317R91

HOSE ASSY.

HOSE - 660 mm (26 inch) long, diverter, Serial Range: valve-cross

1шт.

29

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

532321R1

CROSS

- special, to front wing lift cylinders

2шт.

31

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare

1шт.

32

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, bulkhead, 7/8 inch NF

1шт.

33

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - straight, 5/8-18 inch fem x 3/8-24 inch flare

1шт.

34

60231C1

HOSE

- 609 mm (24 inch) long, tee to front wing lift cylinders, closed end

2шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Inc. Ref 36

8шт.

37

60232C1

HOSE

- 863 mm (34 inch) long, cross to front wing lift cylinders, rod end, tee to rear wing lift cylinders, closed end

4шт.

38

139494C1

HYD TUBE

TUBE - cross to tee at rear wing lift cylinder hoses, rod end

1шт.

39

139495C1

HYD TUBE

TUBE - tee to tee at rear wing lift cylinder hoses, closed end

1шт.

40

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

41

60231C1

HOSE

- 609 mm (24 inch) long, tee to left-hand rear wing lift cylinder, rod end

1шт.

42

60233C1

HOSE

- 1371 mm (54 inch) long, tee to right-hand rear wing lift cylinder, rod end

1шт.

43

515030R1

CLAMP

- hose

1шт.

44

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

1шт.

45

60200C91

CYLINDER

ASSEMBLY - 3-1/2" ID x 16" stroke, wing lift

4шт.

See Figure 08-35 for service parts

1шт.

No longer available, for service order 1282325C91 cylinder assembly, Figure 08-37, 28535R1 clevis pin, 132-313 cotter pin, (2) 1252130C1 adapters and (2) 237-6008 O-rings

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
