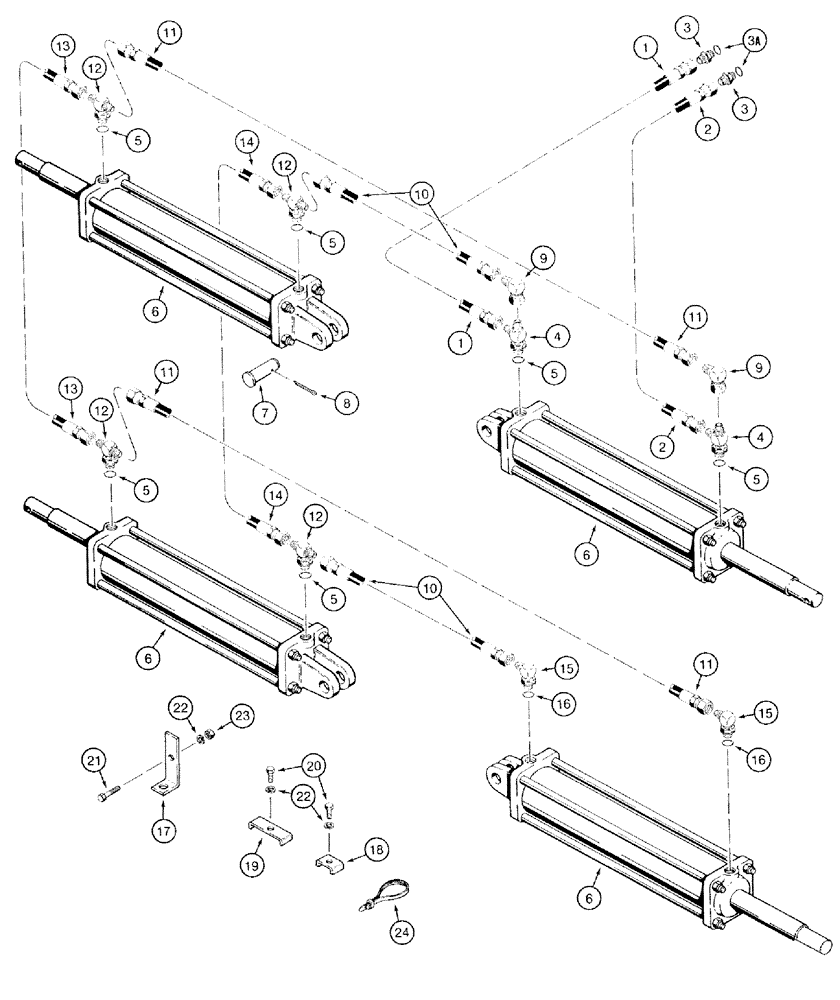

Запчасти Case IH 770 (08-08) - WING LIFT HYD. CIRCUIT, 3/8 INCH ID HOSES, W/O ADAPTERS AT CYLINDERS, NO DIVERTER VALVE, CODED H & J (08) - HYDRAULICS

1

129765C2

HYDRAULIC HOSE

HOSE - 5080 mm (200 inch) long, tractor to tee at cylinder closed end, if used

1шт.

1

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

HOSE - 5842 mm (230 inch) long, tractor to tee at cylinder closed end, if used

1шт.

2

129764C2

HYDRAULIC HOSE

HOSE - 5461 mm (215 inch) long, tractor to tee at cylinder rod end, if used

1шт.

2

133933C2

HYDRAULIC HOSE

HOSE - 6604 mm (260 inch) long, tractor to tee at cylinder rod end, if used

1шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Incl. Ref 3A

1шт.

4

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

- 9/16-18 inch flare base x flare x adj O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

6

1255245C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing lift

4шт.

See Figure 08-36 for service parts

1шт.

No longer available, for service order 1282325C91 cylinder assembly, Figure 08-37, 28535R1 clevis pin, 132-313 cotter pin, (2) 1252130C1 adapters and (2) 237-6008 O-rings

1шт.

6

1282325C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing lift

4шт.

See Figure 08-37 for service parts

1шт.

7

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

8

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flare

2шт.

10

147777C2

HYDRAULIC HOSE,6.40 mm ID x 280.00 mm

Cylinder to Cylinder, Closed End 6.40 mm ID x 280.00 mm

2шт.

11

129908C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 1371 mm (54 inch) long, cylinder to cylinder, rod end

2шт.

12

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 adj O-ring branch x 9/16-18 inch flare x flare

4шт.

13

147779C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 3657 mm (144 inch) long, tee to tee at left-hand cylinders, rod end

1шт.

14

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE - 1/4 inch ID x 4572 mm (180 inch) long, tee to tee at left-hand cylinders, rod end

1шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring, Incl. Ref 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

147770C1

SUPPORT

- hose

1шт.

18

129886C2

CLAMP

- hose, small

6шт.

19

129888C2

CLAMP

- hose, large

3шт.

20

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

8шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

24

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

4шт.
