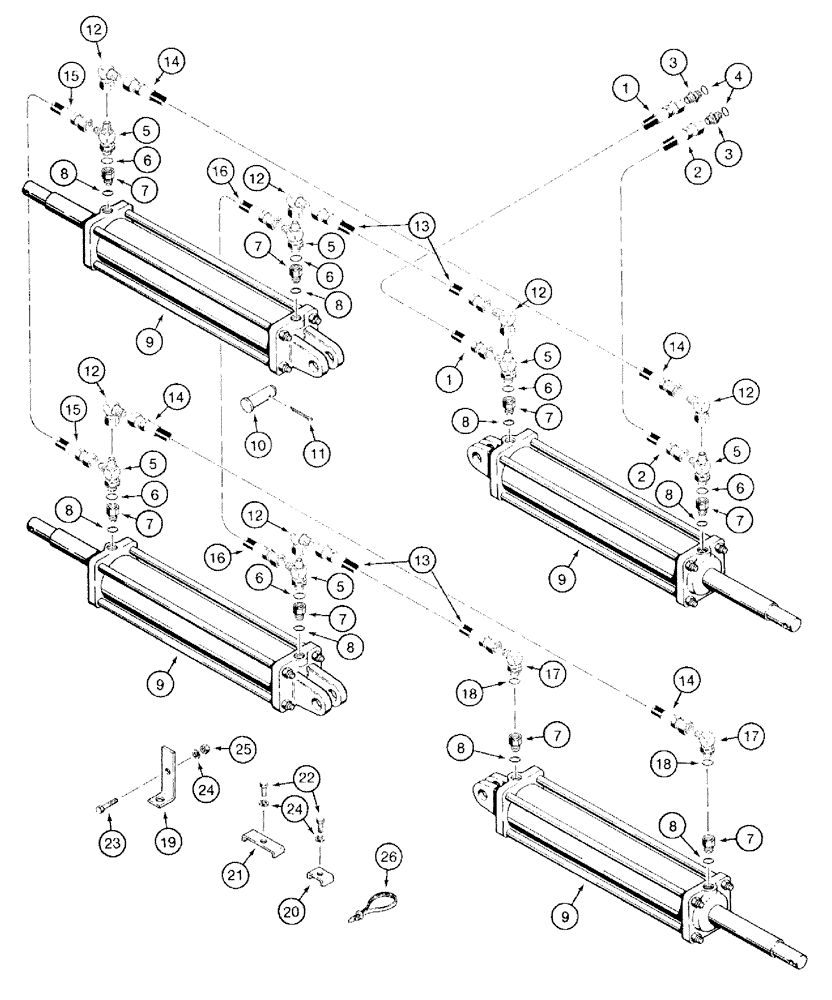

Запчасти Case IH 770 (08-07) - WING LIFT HYD. CIRCUIT, 3/8 INCH ID HOSES, ADAPTERS AT CYLINDERS, NO DIVERTER VALVE, CODED H AND J (08) - HYDRAULICS

1

129765C2

HYDRAULIC HOSE

HOSE - 5080 mm (200 inch) long, tractor to tee at cylinder closed end, if used

1шт.

1

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

HOSE - 5842 mm (230 inch) long, tractor to tee at cylinder closed end, if used

1шт.

2

129764C2

HYDRAULIC HOSE

HOSE - 5461 mm (215 inch) long, tractor to tee at cylinder rod end, if used

1шт.

2

133933C2

HYDRAULIC HOSE

HOSE - 6604 mm (260 inch) long, tractor to tee at cylinder rod end, if used

1шт.

3

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare base x flare x adj O-ring boss

6шт.

7

1252130C1

ADAPTER

- straight, 3/4-16 female x 9/16-18 inch male O-ring

8шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

9

1255245C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing lift

4шт.

See Figure 08-36 for service parts

1шт.

No longer available, for service order 1282325C91 cylinder assembly, Figure 08-37, 28535R1 clevis pin, 132-313 cotter pin, (2) 1252130C1 adapters and (2) 237-6008 O-rings

1шт.

9

1282325C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing lift

4шт.

See Figure 08-37 for service parts

1шт.

10

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

11

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flare

6шт.

13

147777C2

HYDRAULIC HOSE,6.40 mm ID x 280.00 mm

Cylinder to Cylinder, Closed End 6.40 mm ID x 280.00 mm

2шт.

14

129908C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 1371 mm (54 inch) long, cylinder to cylinder, rod end

2шт.

15

147779C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 3657 mm (144 inch) long, tee to tee at left-hand cylinders, rod end

1шт.

16

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE - 1/4 inch ID x 4572 mm (180 inch) long, tee to tee at left-hand cylinders, rod end

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss, Inc. REF 18

2шт.

19

147770C1

SUPPORT

- hose

1шт.

20

129886C2

CLAMP

- hose, small

6шт.

21

129888C2

CLAMP

- hose, large

3шт.

22

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

8шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
