(08-05) - WING LIFT HYD. CIRCUIT, 1/2 INCH ID HOSES AND NO DIVERTER VALVE, DISK HARROWS CODED H & J

Запчасти Case IH 770 (08-05) - WING LIFT HYD. CIRCUIT, 1/2 INCH ID HOSES AND NO DIVERTER VALVE, DISK HARROWS CODED H & J (08) - HYDRAULICS

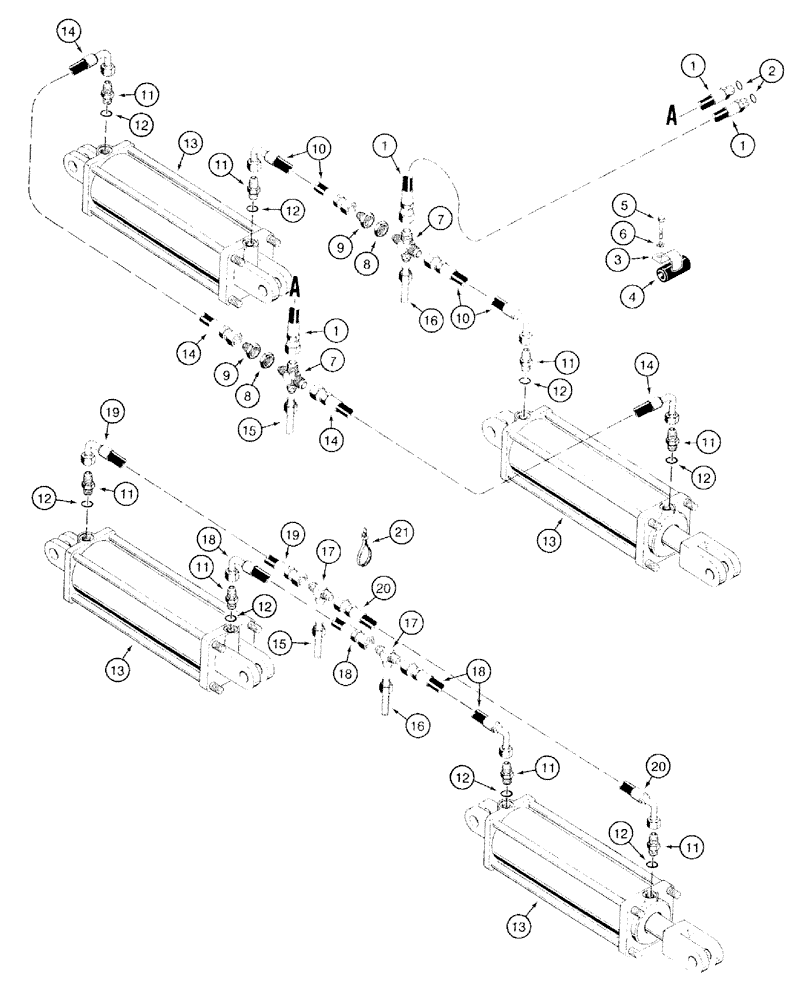

Схема запчастей Case IH 770 - (08-05) - WING LIFT HYD. CIRCUIT, 1/2 INCH ID HOSES AND NO DIVERTER VALVE, DISK HARROWS CODED H & J (08) - HYDRAULICS
18
13
7
12
11
13
7
11
14
18
5
13
9
11
9
11
2
15
15
11
21
10
12
12
12
20
19
11
19
17
4
12
13
14
18
6
11
12
17
16
16
14
14
8
1
12
8
11
1
3
10
1
12
20
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100970C1

HYDRAULIC HOSE,0.50" ID x 200.00", SAE 100R1

- Supply and return 0.50" ID x 200.00", SAE 100R1

2шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

129886C2

CLAMP

- hose

2шт.

4

393068R1

HOSE

SHIELD - hose

1шт.

5

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

7

532321R1

CROSS

- special, to front wing lift cylinders

2шт.

8

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, bulkhead, 7/8 inch NF

2шт.

9

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - straight, 5/8-18 inch fem x 3/8-24 inch flare

2шт.

10

60231C1

HOSE

- 609 mm (24 inch) long, tee to front wing lift cylinders, closed end

2шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Inc. Ref 12

8шт.

13

60200C91

CYLINDER

ASSEMBLY - 3-1/2" ID x 16" stroke, wing lift, See Figure 8-35 for service parts

4шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

No longer available, for service order 1282325C91 cylinder assembly, Figure 08-37, 28535R1 clevis pin, 132-313 cotter pin, (2) 1252130C1 adapters and (2) 237-6008 O-rings

1шт.

14

60232C1

HOSE

- 863 mm (34 inch) long, tee to front wing lift cylinders, rod end

2шт.

15

139494C1

HYD TUBE

TUBE - cross to tee at cylinder rod end hoses

1шт.

16

139495C1

HYD TUBE

TUBE - cross to tee at cylinder closed end hoses

1шт.

17

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

18

60232C1

HOSE

- 863 mm (34 inch) long, tee to rear wing lift cylinders, closed end

2шт.

19

60231C1

HOSE

- 609 mm (24 inch) long, tee to left-hand rear wing lift cylinder, rod end

1шт.

20

60233C1

HOSE

- 1371 mm (54 inch) long, tee to right-hand rear wing lift cylinder, rod end

1шт.

21

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
