Запчасти Case IH 770 (08-04) - TRANSPORT LIFT HYDRAULIC CIRCUIT, 3/8 INCH ID HOSES W/FEMALE ENDS, DISK HARROWS CODED D, E, F AND G (08) - HYDRAULICS

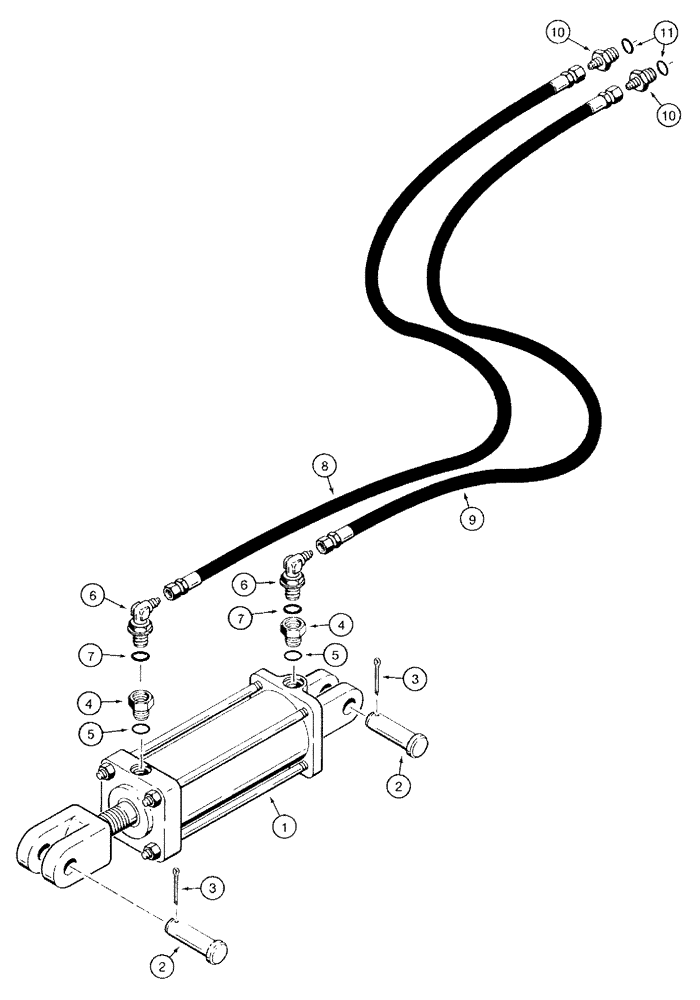

Схема запчастей Case IH 770 - (08-04) - TRANSPORT LIFT HYDRAULIC CIRCUIT, 3/8 INCH ID HOSES W/FEMALE ENDS, DISK HARROWS CODED D, E, F AND G (08) - HYDRAULICS
2
2
4
10
1
3
7
5
10
9
6
3
11
8
5
7
4
6

№

Артикул

Название

Примечание

Количество

1

84995C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-26 for service parts

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

145213C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-25 for service parts

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

145435C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-27 for service parts

1шт.

1

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-24 for service parts

1шт.

2

427-20350

CLEVIS PIN,31.75mm OD x 88.9mm L

PIN - clevis, 1-1/4 x 3-1/2 inch

2шт.

3

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

4

1252130C1

ADAPTER

- straight, 3/4-16 female x 9/16-18 inch male O-ring, if used

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring, Incl. Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1284292C1

HYDRAULIC HOSE

HOSE - 6223 mm (245 inch) long, tractor to cylinder, rod end

1шт.

9

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

HOSE - 5715 mm (225 inch) long, tractor to cylinder, closed end

1шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss, Inc. REF 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Выбрано товаров: 20
