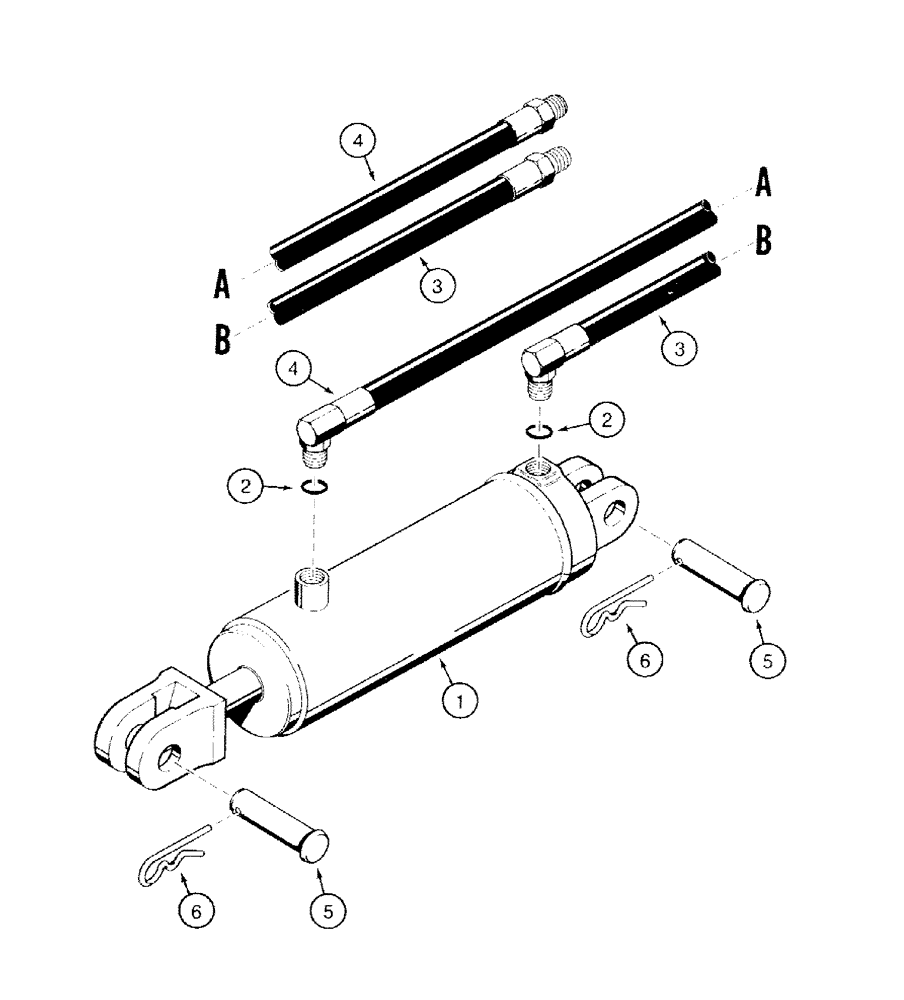

Запчасти Case IH 770 (08-03) - TRANSPORT LIFT HYDRAULIC CIRCUIT, 1/2 INCH ID HOSES W/MALE ENDS, DISK HARROWS CODED D,E,F & G (08) - HYDRAULICS

1

61107C92

CYLINDER

ASSEMBLY- 3-1/2 inch ID x 16 inch stroke, transport lift, if used

1шт.

No longer available, for service order 108681C91 cylinder assembly, Figure 08-23

1шт.

See Figure 08-22 for service parts

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

770 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 61107C92

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

548004R92

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-21 for service parts

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

108681C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-23 for service parts

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 08-24 for service parts

1шт.

1

145213C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, transport lift, if used

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

See Figure 08-25 for service parts

1шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

100971C1

HYDRAULIC HOSE,0.50" ID x 225.00", SAE 100R1

- Cylinder rod end to tractor 0.50" ID x 225.00", SAE 100R1

1шт.

4

473152R91

HOSE ASSY.

HOSE - 5410 mm (213 inch) long, cylinder closed, Serial Range: end-tractor

1шт.

5

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

PIN - clevis, 1-1/4 x 3-3/4 inch, cylinder mounting, used with 1272150C91 cylinder assembly, if used

2шт.

6

432-2028

COTTER PIN,5/16" x 1 3/4"

Pin, Split (Cotter), , if used 5/16" x 1 3/4"

2шт.
