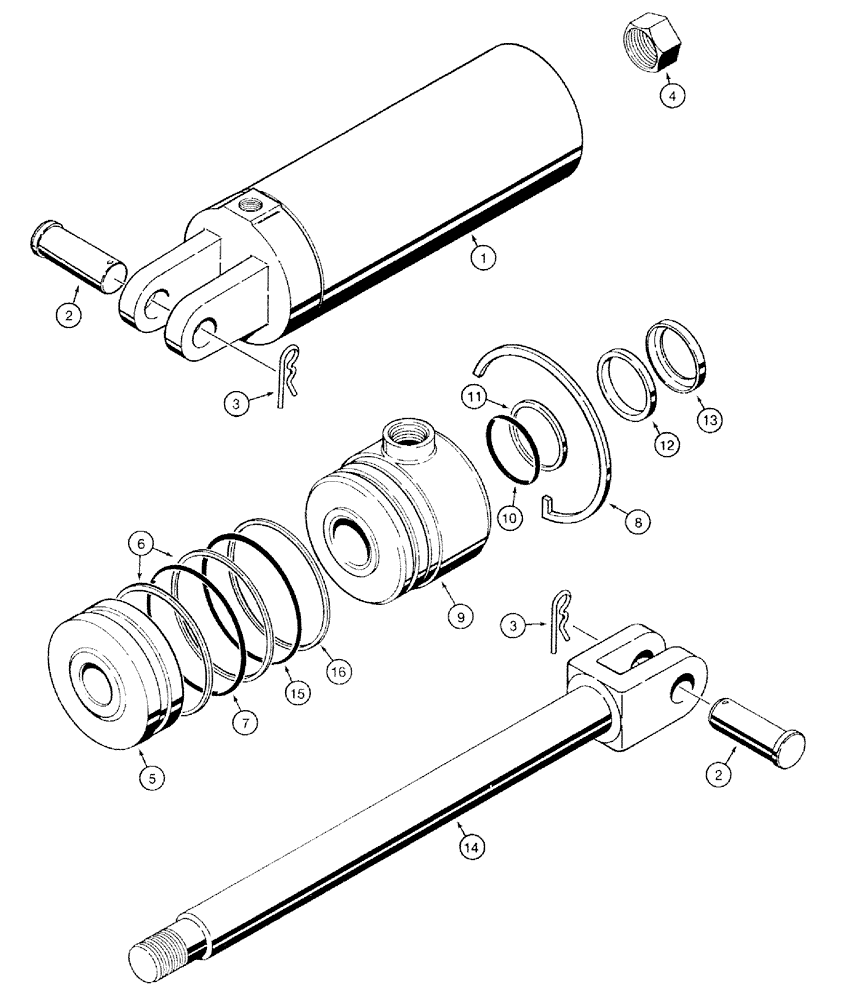

Запчасти Case IH 760 (8-04) - TRANSPORT LIFT CYLINDER - 546719R91, 3-1/2 INCH ID - LOCKING RING RETAINED GLAND (08) - HYDRAULICS

546719R91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, Inc. 1 - 16

1шт.

No longer available, for service order 1272147C92 cylinder assembly, see Figure 8-07, also order (2) 427-16325 pins, (2) 132-349 cotter pins, (2) 1252129C1 adapter and (2) 237-6008 O-rings

1шт.

1

61072C1

BODY

TUBE - cylinder

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - cylinder pivot, 1 OD x 3-1/4 inch, if used

2шт.

2

810751C1

PIN

- cylinder pivot, 1 OD x 3-1/2 inch, if used

2шт.

3

1970957C1

SPRING

PIN - hair, cylinder pin retaining

2шт.

4

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

547724R1

PISTON

- cylinder

1шт.

6

375936R1

BACK-UP RING

RING - backup

2шт.

7

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

Piston -338, 90 Duro, 3.100" ID x .210" Thk

1шт.

8

140600C1

RETAINING WIRE

RING - locking, gland

1шт.

9

547722R1

HEAD

GLAND - cylinder

1шт.

10

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

Piston rod -218, 90 Duro, 1.234" ID x .139" Thk

1шт.

11

546279R1

WASHER

RING - backup, piston rod O-ring

1шт.

12

386421R1

WASHER

WIPER - piston rod

1шт.

13

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

RETAINER - wiper

1шт.

14

547719R1

ROD

- piston

1шт.

15

238-6236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 6, 90 Duro

- 3-1/4 x 3-1/2 x 1/8 inch, gland

1шт.

16

404015R1

BACK-UP RING

- backup, gland O-ring

1шт.

547725R91

SEAL KIT

KIT - seal and O-ring, Inc. 4, 6 - 8, 10 - 13, 15 and 16

1шт.

No longer available, for service order components

1шт.
