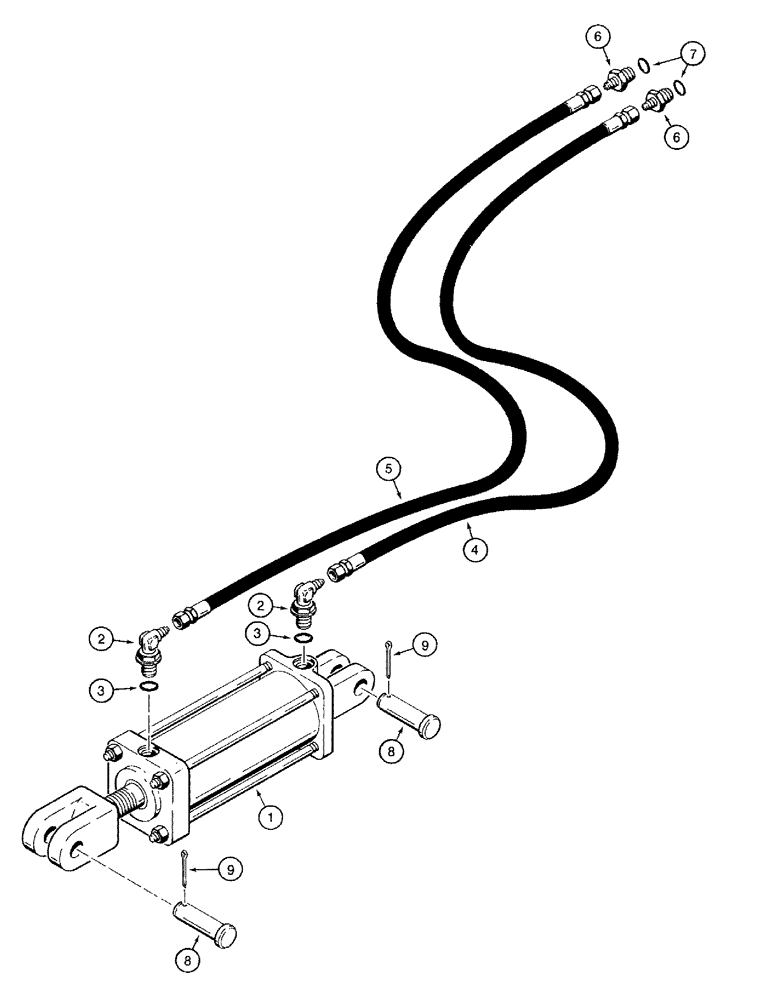

Запчасти Case IH 760 (8-02) - TRANSPORT LIFT HYDRAULIC CIRCUIT, HOSES WITH FEMALE ENDS (08) - HYDRAULICS

1

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, transport lift, if used

1шт.

See Figure 8-06 for parts list

1шт.

No longer available, for service order 1272147C92 cylinder assembly, see Figure 8-07

1шт.

1

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, transport lift, if used, Replaces 1272147C91

1шт.

See Figure 8-07

1шт.

1

145211C93

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, if used

1шт.

See Figure 8-09 for parts list

1шт.

No longer available, for service order 1272148C91 cylinder assembly, see Figure 8-11

1шт.

1

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke,transport lift, if used

1шт.

See Figure 8-11

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch O-ring boss, Use with 3/8 inch ID hoses, Incl. Ref 3

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, use with 1/2 inch ID hoses, Inc. REF 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

147885C1

HOSE

- 1/2 inch ID x 163 inch long, to cylinder, closed end

1шт.

No longer available, order 1 each of the following: 129782C2 hose, 218-5354 connector, 218-792 connector and 218-344 nut

1шт.

4

129782C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 163 inch long, to cylinder, closed end

1шт.

5

147886C1

HOSE,0.50" ID x 175.00", SAE 100R7

- 1/2 inch ID x 175 inch long, to cylinder, rod end

1шт.

No longer available, order 1 each of the following: 1284304C1 hose, 218-5354 connector, 218-792 connector and 218-344 nut

1шт.

5

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 3/8 inch ID x 175 inch long, to cylinder, rod end

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, use with 3/8 inch ID hoses

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

PIN - clevis, 1 x 3-1/4 inch

2шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.
