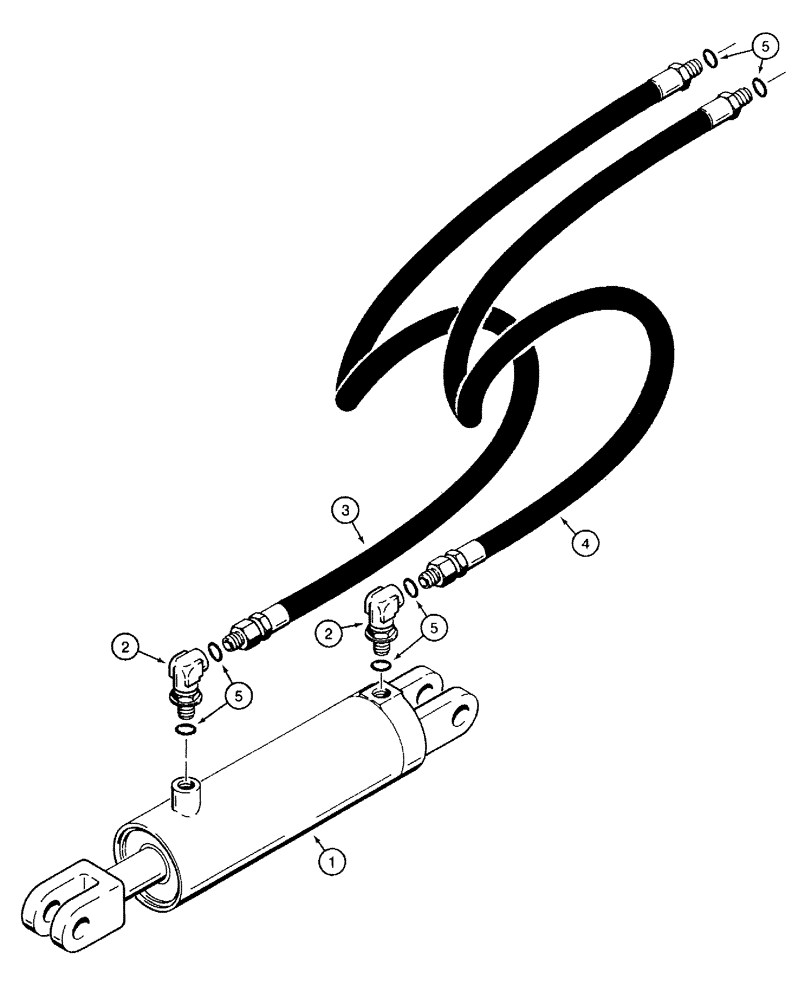

Запчасти Case IH 760 (8-01) - TRANSPORT LIFT HYDRAULIC CIRCUIT, HOSES WITH MALE ENDS (08) - HYDRAULICS

1

546719R91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, transport lift, if used

1шт.

See Figure 8-04 for parts list

1шт.

No longer available, for service order 1272147C92 cylinder assembly, see Figure 8-07, also order (2) 427-16325 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

1

61105C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, transport lift, if used

1шт.

See Figure 8-05 for parts list

1шт.

No longer available, for service order 1272147C92 cylinder assembly, see Figure 8-07, also order (2) 427-16325 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

1

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, transport lift, if used

1шт.

See Figure 8-07

1шт.

1

548003R92

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, if used

1шт.

No longer available, for service order 1272148C91 cylinder assembly, see Figure 8-11, also order (2) 61571C2 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

See Figure 8-08 for parts list

1шт.

1

64412C91

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, if used

1шт.

No longer available, for service order 1272148C91 cylinder assembly, see Figure 8-11, also order (2) 61571C2 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

See Figure 8-10 for parts list

1шт.

1

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, if used

1шт.

See Figure 8-11

1шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

REDUCER - 3/4-16 O-ring boss x 7/8-14 inch female

2шт.

2

371357R91

ELBOW

- 90 deg adj, 7/8-14 fem x 3/4-16 O-ring

2шт.

3

478706R91

HOSE ASSY.

HOSE - 175 inch long, to cylinder, rod end

1шт.

4

1284264C1

HYDRAULIC HOSE

HOSE - 168 inch long, to cylinder, closed end (Replaces 480663R91) Also Order (2) 218-5354 Connector

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.
