Запчасти Case IH 760 (9-10) - FURROW FILLER AND DISK SCRAPERS, WITH FOUR BOLT RETAINED SPOOL HALF SECTIONS, P.I.N. 27351 AND AFTER (09) - CHASSIS/ATTACHMENTS

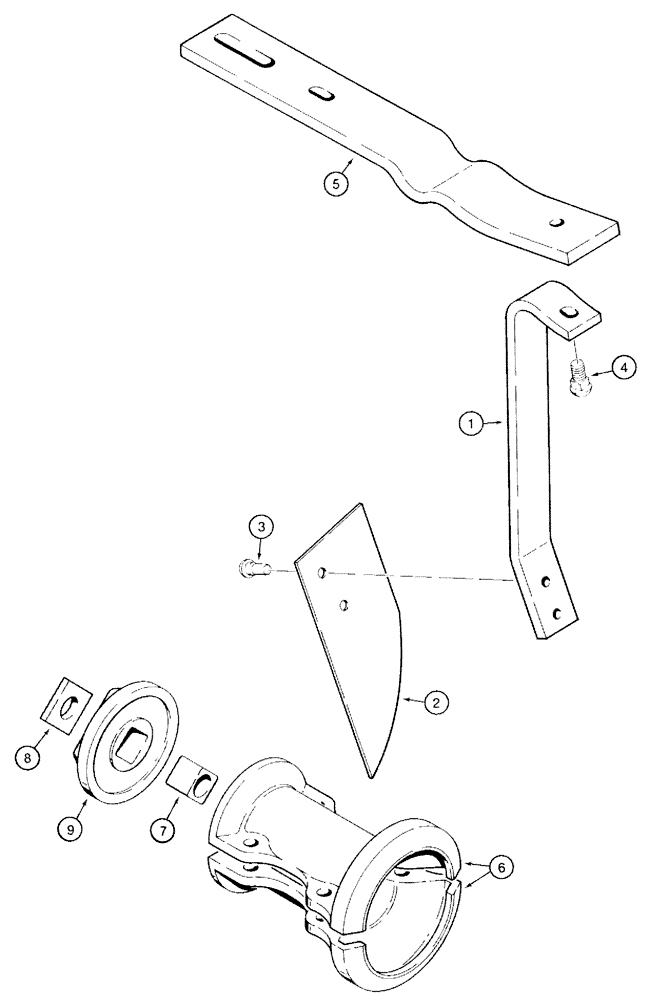

Схема запчастей Case IH 760 - (9-10) - FURROW FILLER AND DISK SCRAPERS, WITH FOUR BOLT RETAINED SPOOL HALF SECTIONS, P.I.N. 27351 AND AFTER (09) - CHASSIS/ATTACHMENTS
5
1
4
7
8
6
9
2
3

Артикул

Название

Примечание

Количество

121195C91

SCRAPER

ASSEMBLY - disc, left hand, not shown, Inc. 1 - 3

1шт.

121196C91

HALF BLADE

SCRAPER ASSEMBLY - disc, right hand, Inc. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand, not shown

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

2

121118C2

BLADE

- scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

4

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

1шт.

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

5

121224C1

SUPPORT

BRACKET - scraper

1шт.

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 2", G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

100693C1

SPOOL

- furrow filler, one half, 7-1/2 inch long, if used

4шт.

6

129797C1

HUB

SPOOL - furrow filler, one half, 9-1/4 inch long, if used

4шт.

424-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2

- hex, 1/2 NC x 1-1/2 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

7

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

8

100695C1

SPACER

- arbor bolt head

2шт.

9

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head

2шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

Выбрано товаров: 23
