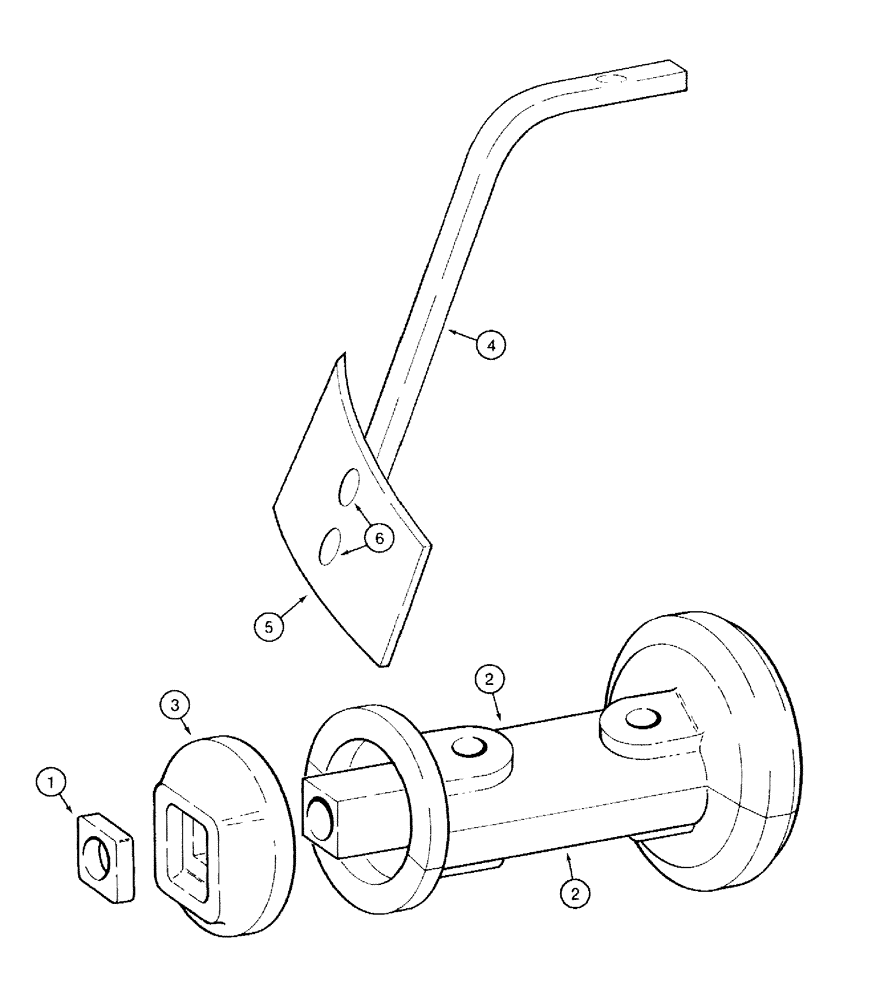

Запчасти Case IH 760 (9-09) - FURROW FILLER AND DISK SCRAPERS, WITH TWO BOLT RETAINED SPOOL HALF SECTIONS, PRIOR TO P.I.N 27351 (09) - CHASSIS/ATTACHMENTS

1

466986R1

BLOCK

SPACER - arbor bolt head

1шт.

2

482970R2

SPOOL

- furrow filler, half section

2шт.

113-471

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 2

- hex, 1/2 NC x 3-1/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

3

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head

1шт.

483139R92

BLADE

SCRAPER ASSEMBLY - disc, left-hand, standard, Inc. 4 - 6

1шт.

483140R92

BLADE

SCRAPER ASSEMBLY - disc, right-hand, standard, not shown, Inc. 4 - 6

1шт.

540461R92

SCRAPER

ASSEMBLY - disc, left-hand, heavy duty, Inc. 4 - 6

1шт.

540462R92

SCRAPER

ASSEMBLY - disc, right-hand, heavy duty, not shown, Inc. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand, not shown

1шт.

5

483096R2

KNIFE ASSY

BLADE - scraper

1шт.

6

49-614

RIVET,Tr Hd, 3/8" x 7/8"

- 3/8 x 7/8 inch, if used

2шт.

6

49-616

RIVET,Tr Hd, 3/8" x 1"

- 3/8 x 1 inch, if used

2шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- square head, special, scraper mounting, 1/2 NC x 1-1/4 inch, if used

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, special, scraper mounting, 1/2 NC x 1-1/2 inch, if used

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.
