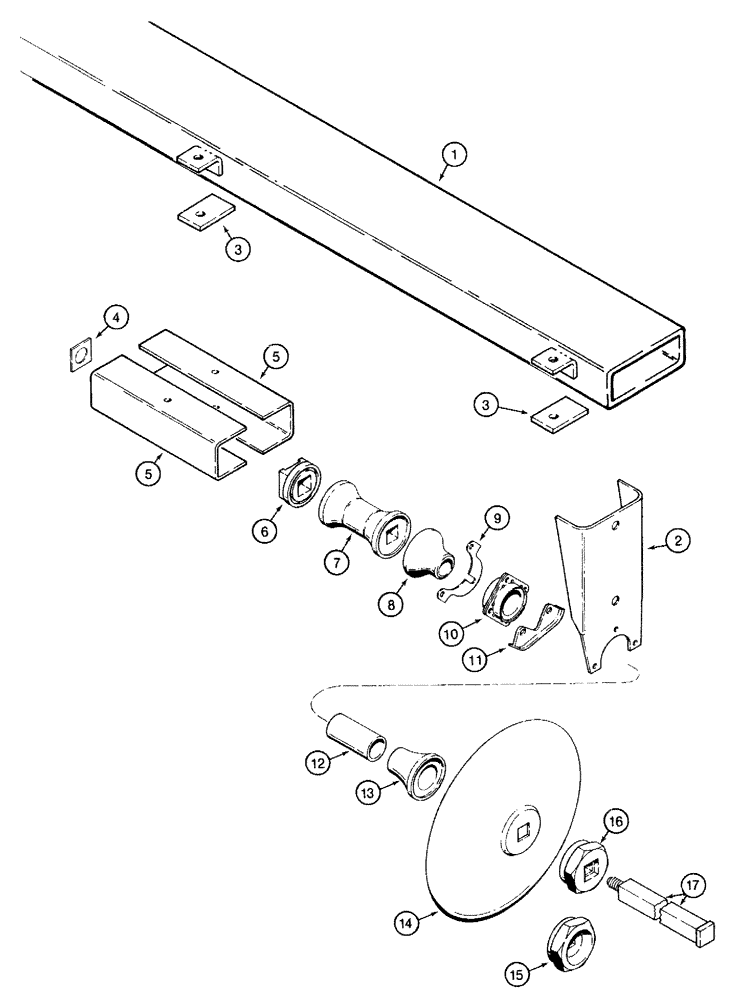

Запчасти Case IH 760 (9-08) - DISK AND GANG, P.I.N. 27351 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

129572C1

BAR

FRAME ASSEMBLY - front gang, Disk Harrow coded A, Inc. 2

1шт.

1

129574C1

BAR

FRAME ASSEMBLY - front gang, Disk Harrow coded B, Inc. 2

1шт.

1

129576C1

BAR

FRAME ASSEMBLY - front gang, Disk Harrow coded C, Inc. 2

1шт.

1

129578C1

BAR

FRAME ASSEMBLY - front gang, Disk Harrow coded D, Inc. 2

1шт.

1

129580C1

BAR

FRAME ASSEMBLY - front gang, Disk Harrow coded E, Inc. 2

1шт.

1

129573C1

BAR

FRAME ASSEMBLY - rear gang, Disk Harrow coded A, Inc. 2

1шт.

1

129575C1

BAR

FRAME ASSEMBLY - rear gang, Disk Harrow coded B, Inc. 2

1шт.

1

129577C1

BAR

FRAME ASSEMBLY - rear gang, Disk Harrow coded C, Inc. 2

1шт.

1

129579C1

BAR

FRAME ASSEMBLY - rear gang, Disk Harrow coded D, Inc. 2

1шт.

1

129581C1

BAR

FRAME ASSEMBLY - rear gang, Disk Harrow coded E, Inc. 2

1шт.

2

112770C1

SUPPORT ASSY.

SUPPORT - bearing

4-6шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

3

121213C1

BAR

- angle support

11-16шт.

411-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT - carriage, 5/8 NC x 2-1/4 inch

11-16шт.

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

11-16шт.

4

489292R1

SUPPORT ASSY.

LOCK - arbor bolt nut

4шт.

5

543309R1

BLOCK DRIVER

CHANNEL - gang driver, 9 inch spacing

8шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch NC

8шт.

6

481611R1

WASHER

- arbor bolt, threaded end

4шт.

7

481417R1

SPOOL

- spacing, 9 inch

20-38шт.

8

101190C1

SPOOL

- bearing, 3 inch long

8-12шт.

9

58922C1

SHIM

- bearing, 3/16 inch thick

1шт.

9

139623C1

SHIM

- bearing, 3/32 inch thick1å

1шт.

10

ST491A

BALL BEARING,45mm ID

BEARING - ball, with grease fitting, if used

8-12шт.

10

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

8-12шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 5/64 inch, If used

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

129753C1

BEARING COVER

- bearing wear

2шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

12

112410C1

TUBE

BUSHING - arbor bolt support, 220 mm long

8-12шт.

13

101191C1

SPOOL

- bearing, 77 mm long

8-12шт.

14

482986R2

DISK HARROW

DISC - solid, 18 inch diameter x 11/64 inch thick

1шт.

14

482973R1

DISC

- solid, 20 inch diameter x 11/64 inch thick

1шт.

14

482974R1

DISC

- notched, 20 inch diameter x 11/64 inch thick, not shown

1шт.

14

472218R1

DISC

- solid, 22 inch diameter x 11/64 inch thick

1шт.

14

482975R1

PLOW DISC

DISC - solid, 22 inch diameter x 13/64 inch thick

1шт.

14

482976R1

DISK HARROW

DISC - notched, 22 inch diameter x 13/64 inch thick, not shown

1шт.

14

543437R1

DISC

24CL3

1шт.

14

543438R1

DISC

24CL3, not shown

1шт.

15

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head, was P4165A

3шт.

16

100696C1

WASHER

- arbor bolt head

1шт.

17

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

- arbor, 67.4 inch, Disk Harrow coded A and B

2-4шт.

17

487168R1

BOLT,1 1/8"-7 x 94.6"

- arbor, 1-1/8 NC x 94-5/8 inch, Disk Harrow coded B and C

2-4шт.

17

58829C1

BOLT

- arbor, 1-1/8 NC x 103-3/8 inch, Disk Harrow coded D

4шт.

17

57000C1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 121.80mm

- arbor, 1-1/8 NC x 121-13/16 inch, Disk Harrow coded E

2шт.

17

546831R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 112.70mm

- arbor, 1-1/8 NC x 112-3/4 inch, Disk Harrow coded E

2шт.

88695

LOCK WASHER,1 1/8"

Washer, Lock, 1 1/8"

8шт.

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

8шт.
