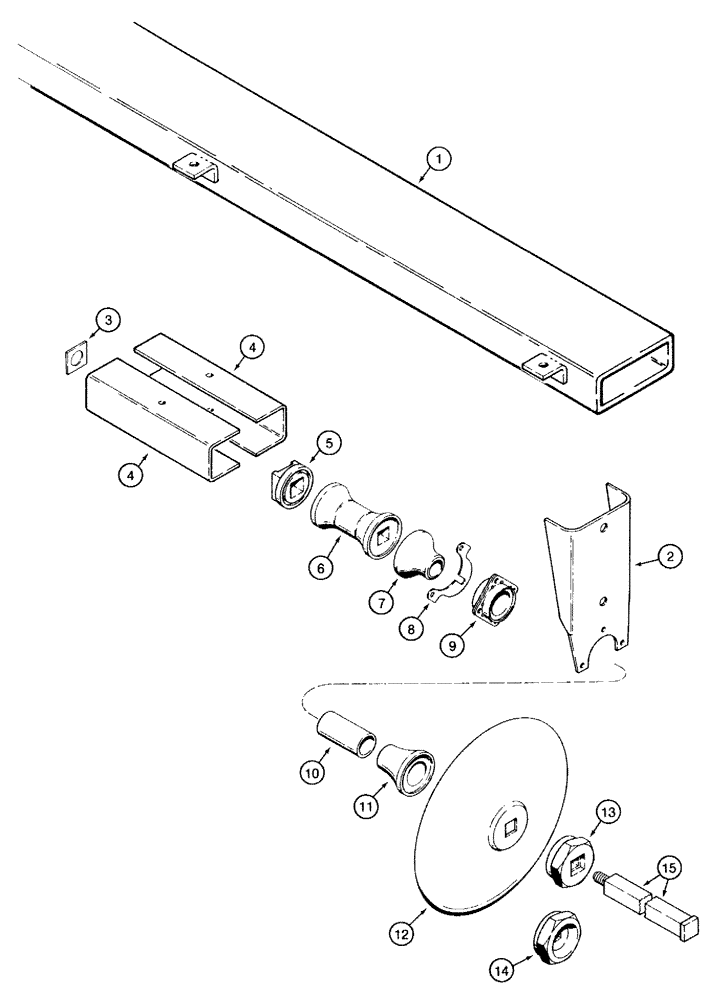

Запчасти Case IH 760 (9-07) - DISK AND GANG, PRIOR TO P.I.N. 27351 (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - gang, Inc. 2

2шт.

2

NSS

NOT SOLD SEPARAT

SUPPORT - bearing

4-6шт.

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

- hex, 7/8 NC x 2-3/4 inch

2шт.

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

3

489292R1

SUPPORT ASSY.

LOCK - arbor bolt nut (Replaces P34100)

4шт.

489292R1 has 1-1/8" hole and P34100 has 15/16" hole

1шт.

4

543309R1

BLOCK DRIVER

CHANNEL - gang driver, 9 inch spacing

8шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch NC

8шт.

5

481611R1

WASHER

- arbor bolt, threaded end

4шт.

6

481417R1

SPOOL

- spacing, 9 inch

20-38шт.

7

472593R3

SPOOL

- bearing, 3 inch long

8-12шт.

8

58922C1

SHIM

- bearing, 3/16 inch thick

1шт.

8

139623C1

SHIM

- bearing, 3/32 inch thick

1шт.

9

ST491A

BALL BEARING,45mm ID

BEARING - ball, with grease fitting, if used

8-12шт.

9

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

8-12шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 5/64 inch, If used

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

10

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

- arbor bolt support, 154 mm long

8-12шт.

11

472591R3

BUSHING,1.796" ID x 2.4" OD x 4.052"

- bearing, 4 inch long

8-12шт.

12

482973R1

DISC

- solid, 20 inch diameter x 11/64 inch thick

1шт.

12

482974R1

DISC

- notched, 20 inch diameter x 11/64 inch thick, not shown

1шт.

12

472218R1

DISC

- solid, 22 inch diameter x 11/64 inch thick

1шт.

12

P24425

DISC

- notched, 22 inch diameter x 11/64 inch thick, not shown

1шт.

12

482975R1

PLOW DISC

DISC - solid, 22 inch diameter x 13/64 inch thick

1шт.

12

482976R1

DISK HARROW

DISC - notched, 22 inch diameter x 13/64 inch thick, not shown

1шт.

12

543437R1

DISC

24CL3

1шт.

12

543438R1

DISC

24CL3, not shown

1шт.

13

466950R2

WASHER

- arbor bolt head

1шт.

14

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head, Replaces P4165A

3шт.

15

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT - arbor, 1-1/8 NC x 76-7/16 inch (Disk Harrow coded A and B)

2-4шт.

15

468607R1

BOLT,1 1/8"-7 x 39.8"

- arbor, 1-1/8 NC x 39-13/16 inch, (Disk Harrow coded B and C)

2-4шт.

15

471015R1

BOLT,1 1/8"-7 x 57.8"

- arbor, 1-1/8 NC x 57-13/16 inch, (Disk Harrow coded D)

4шт.

15

471016R1

BOLT,1 1/8"-7 x 30.6"

- arbor, 1-1/8 NC x 30-5/8 inch, (Disk Harrow coded E)

2шт.

15

546831R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 112.70mm

- arbor, 1-1/8 NC x 112-3/4 inch, (Disk Harrow coded E)

2шт.

88695

LOCK WASHER,1 1/8"

Washer, Lock, 1 1/8"

8шт.

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

8шт.
