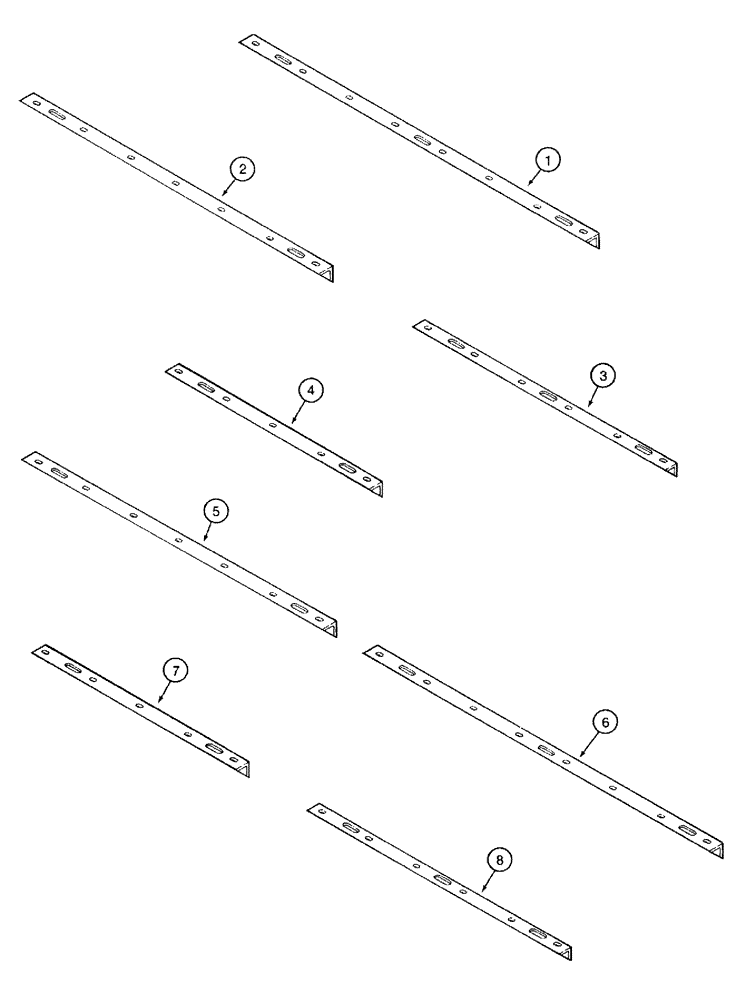

Запчасти Case IH 760 (9-06) - SCRAPER ANGLES, P.I.N. 27351 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

121309C1

ANGLE

- scraper, front frame, left-hand end (Disk Harrow coded A)

1шт.

1

121307C2

ANGLE

- scraper, front frame, left-hand end (Disk Harrow coded B)

1шт.

1

121315C1

ANGLE

- scraper, front frame, left-hand end (Disk Harrows coded C, D and E)

1шт.

2

121313C1

ANGLE

- scraper, front frame, right-hand end (Disk Harrow coded A) or left-hand center (Disk Harrow coded E)

1шт.

2

121315C1

ANGLE

- scraper, front frame, center (Disk Harrow coded B) or left-hand center (Disk Harrow coded D)

1шт.

2

121307C2

ANGLE

- scraper, front frame, left-hand center (Disk Harrow coded C)

1шт.

3

121313C1

ANGLE

- scraper, front frame, right-hand end (Disk Harrow coded B)

1шт.

3

121307C2

ANGLE

- scraper, front frame, right-hand center (Disk Harrow coded C)

1шт.

3

121315C1

ANGLE

- scraper, front frame, right-hand center (Disk Harrows coded D and E)

1шт.

4

121307C2

ANGLE

- scraper, front frame, right-hand end (Disk Harrows coded C and D)

1шт.

4

121313C1

ANGLE

- scraper, front frame, right-hand end (Disk Harrow coded E)

1шт.

5

121310C1

ANGLE

- scraper, rear frame, left-hand end (Disk Harrows coded A and B)

1шт.

5

121308C1

ANGLE

- scraper, rear frame, left-hand end (Disk Harrow coded C)

1шт.

5

121316C1

ANGLE

- scraper, rear frame, left-hand end (Disk Harrow coded D)

1шт.

5

121314C1

ANGLE

- scraper, rear frame, left-hand end (Disk Harrow coded E)

1шт.

6

121310C1

ANGLE

- scraper, rear frame, right-hand end (Disk Harrow coded A)

1шт.

6

121308C1

ANGLE

- scraper, rear frame, center (Disk Harrow coded B)

1шт.

6

121316C1

ANGLE

- scraper, rear frame, left-hand center (Disk Harrows coded C and D)

1шт.

6

121314C1

ANGLE

- scraper, rear frame, left-hand center (Disk Harrow coded E)

1шт.

7

121316C1

ANGLE

- scraper, rear frame, right-hand end (Disk Harrow coded B) or right-hand center (Disk Harrow coded D)

1шт.

7

121308C1

ANGLE

- scraper, rear frame, right-hand center (Disk Harrow coded C)

1шт.

7

121314C1

ANGLE

- scraper, rear frame, right-hand center (Disk Harrow coded E)

1шт.

8

121316C1

ANGLE

- scraper, rear frame, right-hand end (Disk Harrows coded C, D and E)

1шт.
