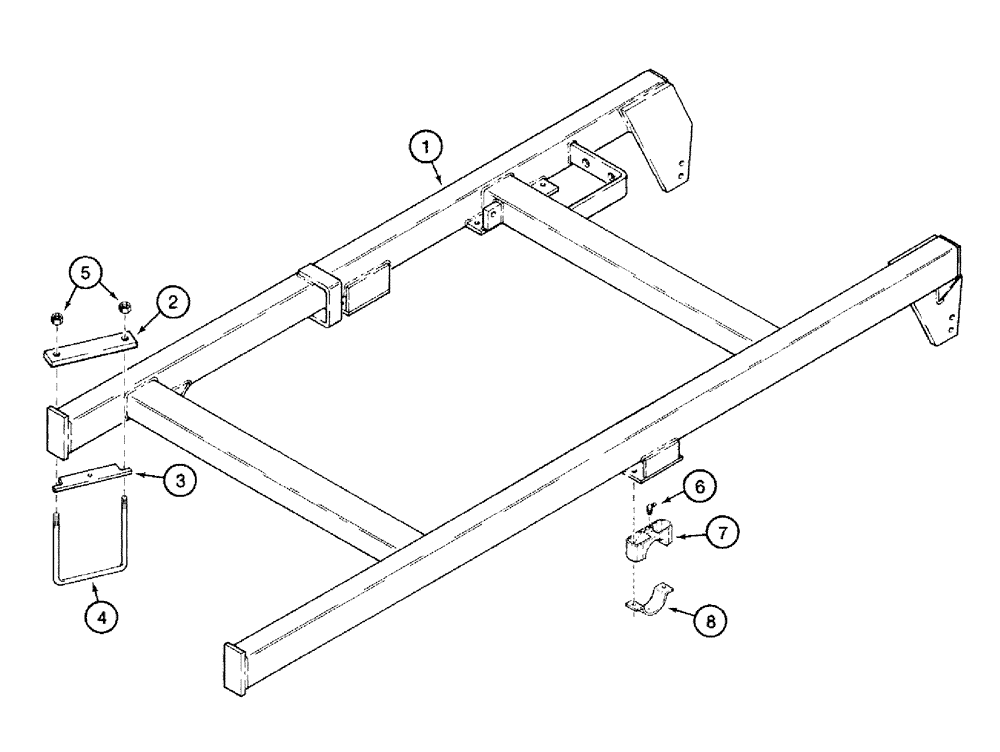

Запчасти Case IH 760 (9-01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

147977C2

FUNNEL

FRAME - main, disk harrow

1шт.

2

58920C1

BAR

PLATE - clamp, gang, Serial Range: bar-frame

3шт.

3

58911C3

BAR

SPACER - gang bar clamp plate

1шт.

4

58921C1

BOLT

U BOLT - gang bar

3шт.

5

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

6шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch long

2шт.

6

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4 inch drive type, used with 1263593C1 bearing, if used

2шт.

7

1263593C1

SUPPORT

BEARING - axle, lubricated from side, if used

2шт.

7

1263593C1

SUPPORT

BEARING - axle, lubricated from top, if used

2шт.

8

540979R1

BEARING CAP,3"

CAP - bearing

2шт.

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
