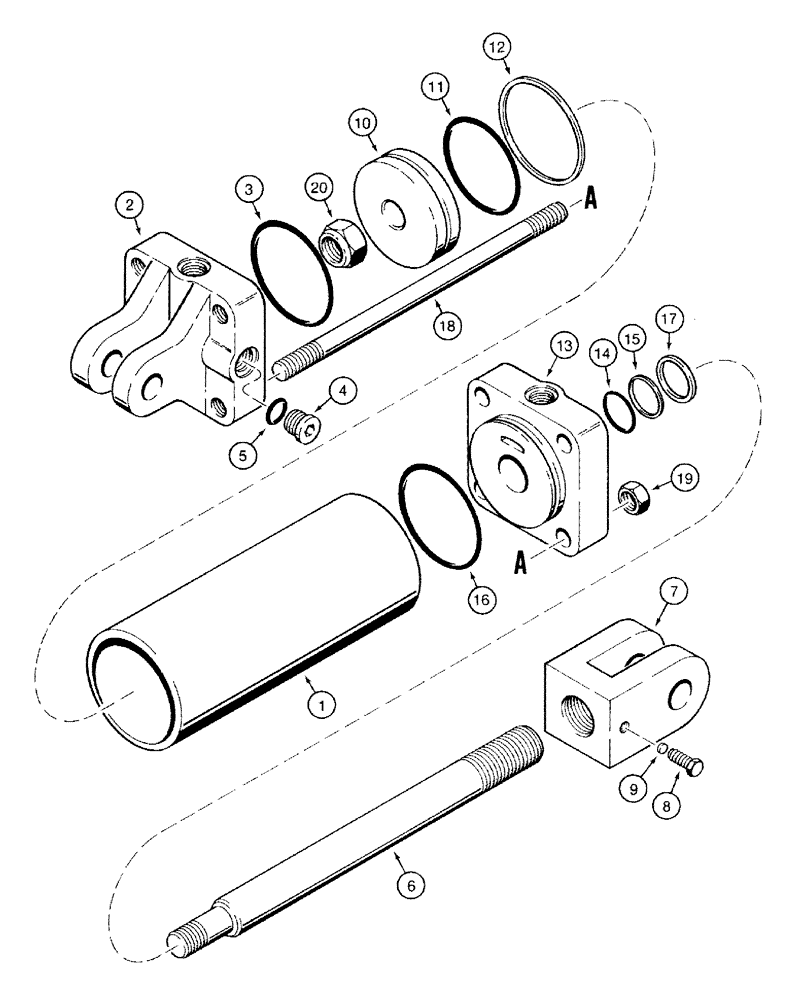

Запчасти Case IH 760 (8-06) - TRANSPORT LIFT CYLINDER - 140683C94, 3-1/2 INCH ID - TIE ROD TYPE (08) - HYDRAULICS

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, Inc. 1 - 20

1шт.

No longer available, for service order 1272147C92 cylinder assembly, see Figure 8-07

1шт.

1

142454C1

SLEEVE

TUBE - cylinder

1шт.

2

142453C3

HEAD

CAP - end, cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - end cap

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

6

145231C1

PISTON ROD

ROD - piston

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

8

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 7/8 inch

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - nylon, clevis

1шт.

10

145422C2

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

13

145476C1

HEAD

GLAND - cylinder, no longer available, order 1260879C1 gland

1шт.

13

1260879C1

HEAD

GLAND - cylinder, replaces 145476C1 gland

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston rod, used with 145476C1 gland

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston rod, used with 1260879C1 gland

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, used with 145476C1 gland

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

18

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

19

425-1010

NUT,5/8"-11, G5

4шт.

20

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

145574C1

KIT

- cylinder repair, used with 145476C1 gland, Inc. 3, 5, 11, 12, 14 (seal), 16 and 17. Kit also includes 2 backup washers and 2 wear rings not used in this application

1шт.

84919C2

GASKET KIT

KIT - cylinder repair, used with 1260879C1 gland, Inc. 3, 5, 11, 12, 14 (O-ring), 15, 16 and 17

1шт.
